Palmgren 9680249 Gear Head Drill Press With Foot Rev. and PF | 25" Swing | 460 Voltage | 1.5-2 HP

Palmgren 9680249 Gear Head Drill Press is built for heavy-duty performance, precision, and operator control. With a 25" swing and a powerful 1.5-2 HP motor, this drill press delivers the strength needed for demanding metalworking and fabrication tasks. Equipped with a rugged gear head drive, it provides smooth and reliable torque across a range of drilling applications. The built-in power feed ensures consistent feed rates, reducing operator fatigue during long or repetitive jobs. For added convenience and safety, it also features a foot-operated reverse switch—ideal for tapping operations and quick control during drilling.

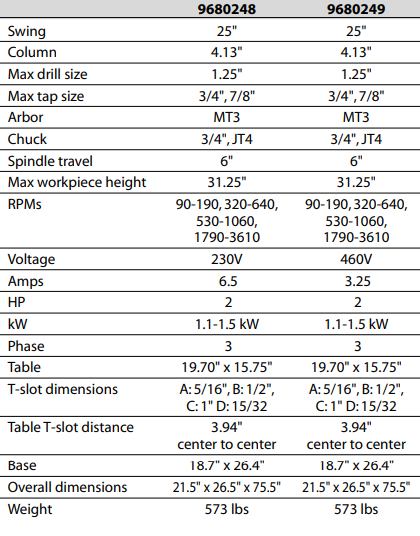

Type: Gear Head Drill Press | Base Dimension (in.): 18-3/4 x 26-3/4 | Capacity Cast Iron (in.): 1-1/4 | Capacity Steel (in.): 1-1/8 | Column Diameter (in.): 4-1/8 | Maximum Spindle to Table (in.): 31-1/4 | Motor HP: 1.5-2 | Number of Spindle Speeds: 8 | Number of Table Slots: 3 | Overall Dimensions (in.): 18-3/4 x 26-3/4 x 74-1/2 | Phase: Three | Spindle Taper: MT3 | Spindle Travel (in.): 5-7/8 | Swing (in.): 25 | Table Dimensions (in.): 20 x 15-3/4 | Table Slot Size (in.): 1 | Voltage: 460

Features:

• Inch/Metric depth stop
• 2 speed manual forward & reverse switch
• Foot reversing switch
• Head & table rotates 360 degrees around the column
• Machined & t-slotted table and base
• Quick release drill ejector
• Chuck guard
• No-volt release prevents spindle start up when power returns after shutdown
• 4" Palmgren drill press vise
• Drill chuck & arbor
• Made in Sweden

Looking for more information about Palmgren Gear Head Drill Presses? Click here to view the Catalog.

Need help selecting the correct Palmgren Gear Head Drill Press for your application? Please call (800) 608-5210 or email info@intlairtool.com
