Palmgren 9680225 Gear Head Drill Press is a premium-grade industrial machine built to tackle the toughest drilling tasks with precision and efficiency. With a 22" swing, this drill press easily accommodates large and heavy workpieces, making it perfect for demanding metalworking and fabrication environments. Powered by a robust 2 to 3 HP motor and operating at 240V, it delivers exceptional torque and consistent performance, even under heavy load. The gear head drive system provides smooth, reliable power transmission and allows for quick, easy speed changes without belt adjustments—ideal for high-volume or precision-critical operations. Engineered with a rigid column and heavy-duty construction, the 9680225 ensures vibration-free drilling, enhanced accuracy, and long service life.

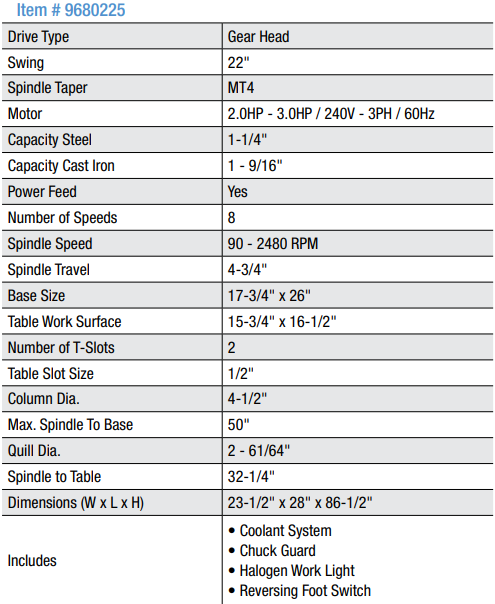

Type: Gear Head Drill Press | Base Dimension (in.): 17 3/4 x 26 | Capacity Cast Iron (in.): 1-9/161-1/4 | Chuck Size (in.): 5/8 | Column Diameter (in.): 4-1/2 | Drill Press Model: Bench Model | Drill Press Type: Gear Head | Max. Spindle To Base (in.): 50 | Maximum Spindle to Table (in.): 32-1/4 | Motor HP: 2 - 3 | Number of Spindle Speeds: 8 | Number of Table Slots: 2 | Overall Dimensions (in.): 23-1/2 x 28 x 86-1/2 | Phase: Three | Spindle Taper: MT4 | Spindle Travel (in.): 4-3/4 | Swing (in.): 22 | Table Dimensions (in.): 15-3/4 x 16-1/2 | Table Slot Size (in.): 1/2 | Voltage: 240
Features:
- Wide speed range with 8 different speeds
- Simple knob selectors for operator ease in changing spindle speeds
- Electro-magnetic clutch power feed - the operator simply dials in the desired feed rate and engages the power feed with the push of a button
- The feed disengages automatically when the preset depth is reached
- Fully enclosed machine tool spindle with internal MT4 mounted in precision bearings for maximum accuracy, minimizing deflection
- Quick release drill ejector
- Front mounted control panel designed for operator convenience
- Forward & reverse spindle switch
- T-slotted production table and base
- Rack and pinion table raiser
- Front mounted dial adjusted work stop
- Interlocking chuck guard
- Work light
- Coolant system
Looking for more information about Palmgren Gear Head Drill Presses? Click here to view the Catalog.
Need help selecting the correct Palmgren Gear Head Drill Press for your application? Please call (800) 608-5210 or email info@intlairtool.com
- Type
- Gear Head Drill Press
- Base Dimension (in.)
- 17 3/4 x 26
- Capacity Cast Iron (in.)
- 1-9/161-1/4
- Chuck Size (in.)
- 5/8
- Column Diameter (in.)
- 4-1/2
- Drill Press Model
- Bench Model
- Drill Press Type
- Gear Head
- Max. Spindle To Base (in.)
- 50
- Maximum Spindle to Table (in.)
- 32-1/4
- Motor (hp)
- 2 - 3
- Number of Spindle Speeds
- 8
- Number of Table Slots
- 2
- Overall Dimensions (in.)
- 23-1/2 x 28 x 86-1/2
- Phase
- Three
- Spindle Taper
- MT4
- Spindle Travel (in.)
- 4-3/4
- Swing (in.)
- 22
- Table Dimensions (in.)
- 15-3/4 x 16-1/2
- Table Slot Size (in.)
- 1/2
- Voltage
- 240
