Palmgren 9680223 Gear Head Floor Drill Press is a heavy-duty industrial machine designed for precision and power in demanding drilling applications. Featuring a generous 20" swing, this drill press is ideal for handling large workpieces with ease. Its robust gear head transmission ensures consistent torque and smooth operation across a wide range of speeds, making it suitable for both high-precision and high-volume work. Powered by a 1-1/2 - 2 HP motor and operating at 240V, it delivers reliable performance for metalworking, woodworking, and fabrication tasks. The machine offers easy speed changes and stable operation, even during heavy-duty drilling. With its rigid construction and floor-standing design, the 9680223 provides unmatched accuracy, durability, and performance, making it a go-to choice for workshops and production environments.

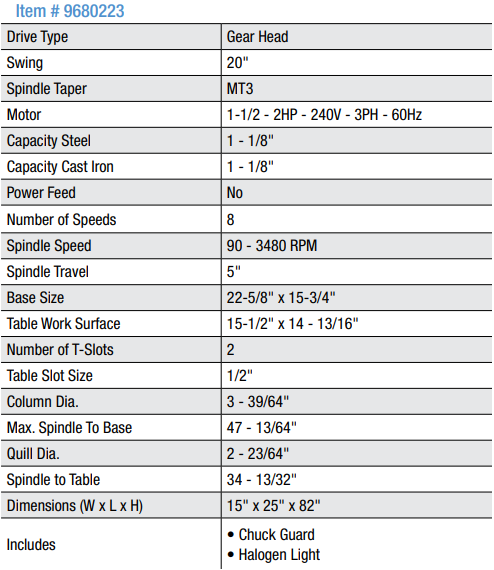

Type: Floor Drill Press | AMPS: 8.6/4.3 | Base Dimension (in.): 22-5/8 x 15 3/4 | Capacity Cast Iron (in.): 1-1/8 | Capacity Steel (in.): 1 - 1/8 | Chuck Size (in.): 5/8 | Column Diameter (in.): 3 - 39/64 | Drill Press Model: Bench Model | Drill Press Type: Gear Head | Max. Spindle To Base (in.): 47 - 13/64 | Maximum Spindle to Table (in.): 34 - 13/32 | Motor HP: 1-1/2 - 2 | Number of Spindle Speeds: 8 | Number of Table Slots: 2 | Overall Dimensions (in.): 15 x 25 x 82 | Phase: Three | Spindle Taper: MT3 | Spindle Travel (in.): 5 | Swing (in.): 20 | Table Dimensions (in.): 15-1/2 x 14 - 13/16 | Table Slot Size (in.): 1/2 | Voltage: 240
Features:
- Wide speed range with 8 different speeds
- Simple knob selectors for operator ease in changing spindle speeds
- Fully enclosed machine tool spindle with internal 3 MT mounted in precision bearings for maximum accuracy, minimizing deflection
- Quick release drill ejector
- Front mounted control panel designed for operator convenience
- Forward & reverse spindle switch
- T-slotted production table and base
- Rack and pinion table raiser
- Front mounted dial adjusted work stop
- Interlocking chuck guard
- Work light
Looking for more information about Palmgren Floor Drill Presses? Click here to view the Catalog.
Need help selecting the correct Palmgren Floor Drill Press for your application? Please call (800) 608-5210 or email info@intlairtool.com
- Type
- Floor Drill Press
- AMPS
- 8.6/4.3
- Base Dimension (in.)
- 22-5/8 x 15 3/4
- Capacity Cast Iron (in.)
- 1-1/8
- Capacity Steel (in.)
- 1 - 1/8
- Chuck Size (in.)
- 5/8
- Column Diameter (in.)
- 3 - 39/64
- Drill Press Model
- Bench Model
- Drill Press Type
- Gear Head
- Max. Spindle To Base (in.)
- 47 - 13/64
- Maximum Spindle to Table (in.)
- 34 - 13/32
- Motor (hp)
- 1-1/2 - 2
- Number of Spindle Speeds
- 8
- Number of Table Slots
- 2
- Overall Dimensions (in.)
- 15 x 25 x 82
- Phase
- Three
- Spindle Taper
- MT3
- Spindle Travel (in.)
- 5
- Swing (in.)
- 20
- Table Dimensions (in.)
- 15-1/2 x 14 - 13/16
- Table Slot Size (in.)
- 1/2
- Voltage
- 240
