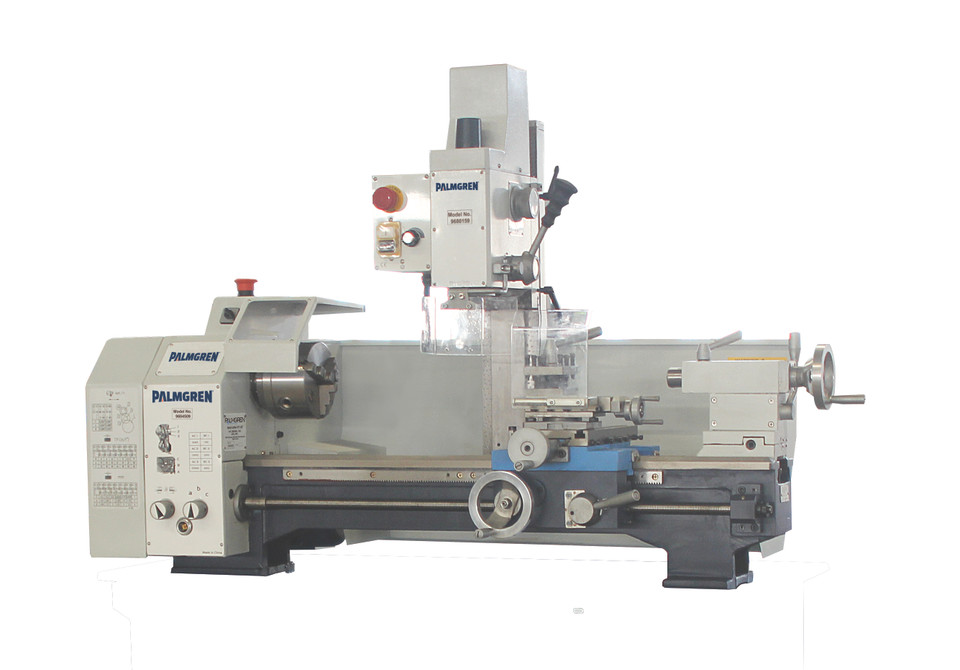

Palmgren 9680213 is a versatile Combination Machine that merges an 9" x 20" Bench Engine Lathe with a Gear Head Mill, ideal for small to medium workshops, educational use, and hobbyists. This dual-purpose unit provides both turning and milling capabilities in a compact footprint, saving space without compromising performance. Powered by a 5/8 HP motor, it offers a spindle speed range of 150 to 2000 RPM for flexible machining options. The lathe features a 5-7/8" bed width, 20" distance between centers, and an 9" maximum turning diameter, while the milling head supports various drilling and milling capacities. Constructed from heavy cast iron and built to the DIN 8606 precision standard, the machine ensures stability, reduced vibration, and accurate results.
Type: Combo Engine Lathe and Mill | Bed Width (in.): 5-7/8 | Chuck Size (in.): 5 | Compound Travel (in.): 3-9/16 | Drilling Capacity Cast Iron (in.): 5/8 | Gear Stages: 2 | Height Of Center (in.): 4-3/4 | High Range: 200 - 3000 | Lathe Motor: 1PH - 115V - 13.6 Amps - 1PH - 60 Hz | Lathes Type: Gear Head | Low Speed: 100 - 1500 | Max Turning Diameter (in.): 9-7/8 | Miling Capacity of End Mill Cutter (in.): 3/4 | Motor (HP): 5/8 | Number of Spindle Speeds: 6 | Overall Dimensions (in.): 33-1/2 x 49 x 23 | Phase: Single | Pitch (in.): 0.2 - 4 / 8 - 56 | Spindle Holding Fixture: MT2 3/8-16 Draw Bar | Spindle Hole (in.): 1 | Spindle Taper: MT3 | Spindle Travel (in.): 2 | Swing Over Bed (in.): 9 | Table Dimensions (in.): 10 x 4-3/4
Features:
- Combination lathe and mill in one compact unit
- 1 HP motor for consistent performance
- Lathe spindle speed range: 150-2000 RPM
- Heavy cast iron construction for durability and vibration control
- Meets DIN 8606 toolmakers' precision standards
Looking for more information about Palmgren Combo Engine Lathe and Mills? Need help selecting the correct Palmgren Combo Engine Lathe and Mill for your application? Please call (800) 608-5210 or email info@intlairtool.com
- Type
- Combo Engine Lathe and Mill
- Bed Width (in.)
- 5-7/8
- Chuck Size (in.)
- 5
- Compound Travel (in.)
- 3-9/16
- Distance Between Center and Compound Table (in.)
- 3
- Distance Between Centers (in.)
- 20
- Drilling Capacity Cast Iron (in.)
- 5/8
- Gear Stages
- 2
- Height Of Center (in.)
- 4-3/4
- High Range
- 200 - 3000
- Lathe Motor
- 1PH - 115V - 13.6 Amps - 1PH - 60 Hz
- Lathes Type
- Gear Head
- Longitudinal Feed Rates (in.)
- 0.003 0.004 0.006 0.008 0.012 0.016
- Low Speed
- 100 - 1500
- Max Turning Diameter (in.)
- 9-7/8
- Miling Capacity of End Mill Cutter (in.)
- 3/4
- Milling Capacity of Inserted Tooth Cutter (in.)
- 2-1/2
- Motor (hp)
- 5/8
- Number of Spindle Speeds
- 6
- Overall Dimensions (in.)
- 33-1/2 x 49 x 23
- Phase
- Single
- Pitch (in.)
- 0.2 - 4 / 8 - 56
- Spindle Holding Fixture
- MT2 3/8-16 Draw Bar
- Spindle Hole (in.)
- 1
- Spindle Taper
- MT3
- Spindle Travel (in.)
- 2
- Swing Over Bed (in.)
- 9
- Table Dimensions (in.)
- 10 x 4-3/4
- Tailstock Sleeve Travel (in.)
- 2-1/2
- Tailstock Taper
- MT2
- Travel Top Slide (in.)
- 19-1/2
- T-Slot Size / Distance / Quantity
- 5/8
- Voltage
- 115
- Working Radius (in.)
- 6-3/4
