Palmgren 9680141 is a heavy-duty gear head drill machine designed for demanding industrial and professional applications. With a massive 33" swing and a powerful 3 - 3.8 HP motor, this drill machine can handle large workpieces and tough materials with ease and precision. Featuring a 16-speed gear head transmission, it allows smooth, reliable speed changes to match a wide variety of drilling tasks. Powered by a 460V motor, it delivers consistent torque and performance for metalworking, woodworking, and more.
These versatile, variable speed, gear head, drill presses are all gear driven, thus they are perfect for precision drilling applications and continuous industrial use. The Palmgren 32" Drill Presses use a gear driven transmission that is designed to deliver full power at any speed, driving the cutting tool at nearly 100% of the available motor horsepower.

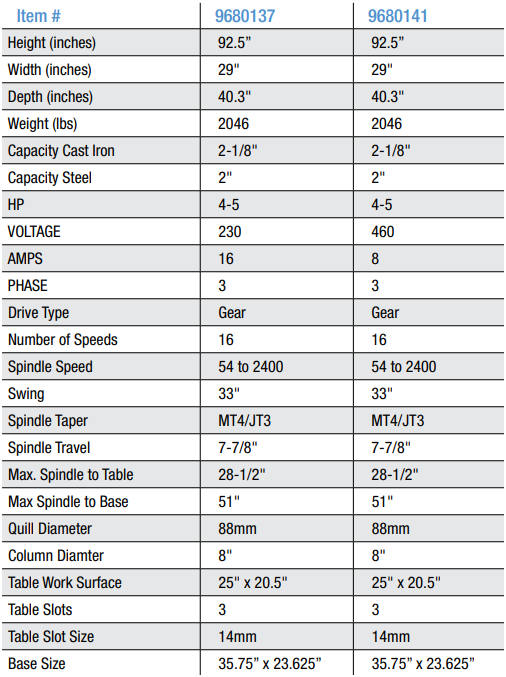

Type: Gear Head Drill Machine | AMPS: 8 | Base Dimension (in.): 35.75 x 23.625 | Capacity Cast Iron (in.): 2-1/8 | Capacity Steel (in.): 2 | Chuck Size (in.): 1/32-5/8 | Column Diameter (in.): 8 | Drill Press Model: Floor Model | Drill Press Type: Variable Speed | Max. Spindle To Base (in.): 51 | Maximum Spindle to Table (in.): 28-1/2 | Motor HP: 3/3.8 | Number of Spindle Speeds: 16 | Phase: Three | Spindle Taper: MT4/JT3 | Spindle Travel (in.): 7-7/8 | Swing (in.): 33 | Table Dimensions (in.): 25 x 20.5 | Table Slot Size (mm): 14 | Table Slots (in.): 3 | Voltage: 460
Features:
- Extra wide speed range with 16 selectable speeds
- Spindle gear box is equipped with hardened and ground steel gears and shafts, lubricated by an internal oil pump for quiet, smooth operation
- Fully enclosed machine tool ground spindle with internal 4 MT mounted in precision bearings for maximum accuracy, minimizing deflection
- Front mounted control panel designed for operator convenience
- Rack and pinion table raiser system
- T-slotted production table and base
- Front mounted, dial adjusted, work stop
- 8" column provides maximum head, table and base support and stability
- Flood coolant system
- Maximum spindle runout of 0 0005"
- Motorized table
- Table tilts left & right 45°
Looking for more information about Palmgren Gear Head Drill Machines? Need help selecting the correct Palmgren Gear Head Drill Machine for your application? Please call (800) 608-5210 or email info@intlairtool.com
- Type
- Gear Head Drill Machine
- AMPS
- 8
- Base Dimension (in.)
- 35.75 x 23.625
- Capacity Cast Iron (in.)
- 2-1/8
- Capacity Steel (in.)
- 2
- Chuck Size (in.)
- 1/32-5/8
- Column Diameter (in.)
- 8
- Drill Press Model
- Floor Model
- Drill Press Type
- Variable Speed
- Max. Spindle To Base (in.)
- 51
- Maximum Spindle to Table (in.)
- 28-1/2
- Motor (hp)
- 3/3.8
- Number of Spindle Speeds
- 16
- Phase
- Three
- Spindle Taper
- MT4/JT3
- Spindle Travel (in.)
- 7-7/8
- Swing (in.)
- 33
- Table Dimensions (in.)
- 25 x 20.5
- Table Slot Size (mm)
- 14
- Table Slots (in.)
- 3
- Voltage
- 460
