Palmgren 9680138 Variable Speed Gear Head Drill Machine is engineered for power, precision, and versatility in demanding workshop environments. Featuring a 20" swing, this drill machine is built to handle medium to large-sized workpieces with ease. Its powerful 2 HP motor, paired with a 460V power supply, delivers consistent torque and performance for a wide range of materials and drilling operations. Equipped with a variable speed gear head system, the 9680138 allows for easy and precise speed adjustments without changing belts—providing maximum control for both light-duty and heavy-duty drilling. The gear-driven transmission ensures smooth operation, while the heavy-duty construction minimizes vibration and maximizes drilling accuracy.

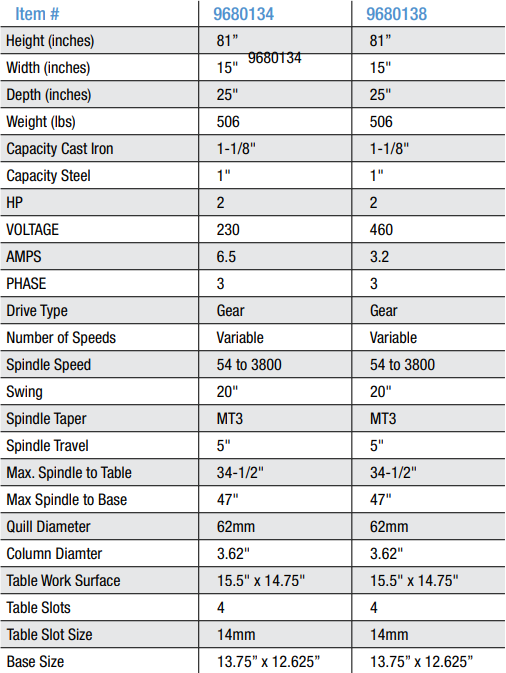

Type: Gear Head Drill Machine | AMPS: 3.2 | Base Dimension (in.): 13.75 x 12.625 | Capacity Cast Iron (in.): 1-1/8 | Capacity Steel (in.): 1 | Column Diameter (in.): 3.62 | Drill Press Model: Floor Model | Drill Press Type: Gear Head | Max. Spindle To Base (in.): 47 | Maximum Spindle to Table (in.): 34-1/2 | Motor HP: 2 | Number of Spindle Speeds: Variable | Phase: Three | Spindle Taper: MT3 | Spindle Travel (in.): 5 | Swing (in.): 20 | Table Dimensions (in.): 15.5 x 14.75 | Table Slot Size (mm): 14 | Table Slots (in.): 4 | Voltage: 460
Features:
- Wide speed range with 4 different speed settings
- Simple knob selectors for operator ease in controlling spindle speeds
- Fully enclosed machine tool spindle with internal 3 MT mounted in precision bearings for maximum accuracy, minimizing deflection
- Front mounted control panel designed for operator convenience
- T-slotted production table and base
- Rack and pinion table raiser
- Front mounted dial adjusted work stop
- Interlocking chuck guard
- Maximum spindle runout of 0 0005"
- Work light
Looking for more information about Palmgren Gear Head Drill Machines? Need help selecting the correct Palmgren Gear Head Drill Machine for your application? Please call (800) 608-5210 or email info@intlairtool.com
- Type
- Gear Head Drill Machine
- AMPS
- 3.2
- Base Dimension (in.)
- 13.75 x 12.625
- Capacity Cast Iron (in.)
- 1-1/8
- Capacity Steel (in.)
- 1
- Column Diameter (in.)
- 3.62
- Drill Press Model
- Floor Model
- Drill Press Type
- Gear Head
- Max. Spindle To Base (in.)
- 47
- Maximum Spindle to Table (in.)
- 34-1/2
- Motor (hp)
- 2
- Number of Spindle Speeds
- Variable
- Phase
- Three
- Spindle Taper
- MT3
- Spindle Travel (in.)
- 5
- Swing (in.)
- 20
- Table Dimensions (in.)
- 15.5 x 14.75
- Table Slot Size (mm)
- 14
- Table Slots (in.)
- 4
- Voltage
- 460
This product hasn't received any reviews yet. Be the first to review this product!
