Palmgren 9661051 1/2 Ton Arbor Press | 3 -1/4" Throat Capacity | 7-1/8" Swing | 3-3/8" Anvil Diameter

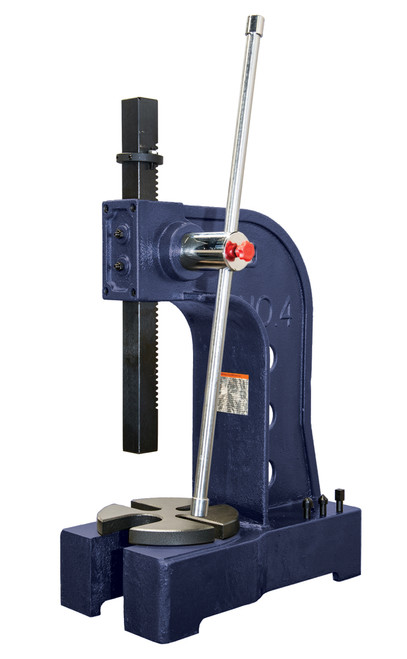

Palmgren 9661051 1/2 Ton Arbor Press is a precision-engineered manual press designed to handle a wide range of light to medium-duty pressing, assembly, and shaping tasks. With a pressing capacity of 1/2 ton, it is ideal for applications such as staking, riveting, broaching, and bending small parts in metalworking, woodworking, and mechanical repair. This arbor press features a 3-1/4" throat capacity, allowing you to position workpieces conveniently for accurate operation, while the 7-1/8" swing provides ample clearance for larger components. The sturdy 3-3/8" diameter anvil offers a stable and solid surface to support workpieces during pressing, ensuring consistent results. Built with a robust cast-iron frame, the press offers excellent durability and stability, minimizing deflection during use. Its compact size makes it suitable for bench or workstation mounting, saving valuable floor space while keeping essential pressing capabilities within easy reach. Ergonomically designed for smooth, controlled operation, the Palmgren 9661051 arbor press is a reliable tool for technicians, hobbyists, and fabricators who require precision and repeatability in their pressing tasks.

Type: Arbor Press | Anvil Diameter (in.): 3-3/8 | Base Dimension (in.): 5-3/8 x 9-1/4 | Lever Ratio: 18.1:1 | Max. Work Height (in.): 4 | Press Type: Arbor Presses | Pressure (Tons): 1/2 | Ram Dimensions (in.): 3/4 x 3/4 | Ram Hole Dia. (in.): 3/8 | Swing (in.): 7-1/8 | Throat Capacity (in.): 3 -1/4

Features:

• Includes three piece bit set - 1 pointed, 1 round, and 1 square end bit, and a removable steel anvil
• Sturdy, cast-iron construction
• For all production and assembly applications
• Base drilled for mounting on a bench or pedestal
• Rugged steel ram is driven by a machined pinion
• The base is machined to hold the three bit set

Looking for more information about Palmgren Arbor Presss? Click here to view the Catalog.

Need help selecting the correct Palmgren Arbor Press for your application? Please call (800) 608-5210 or email info@intlairtool.com
