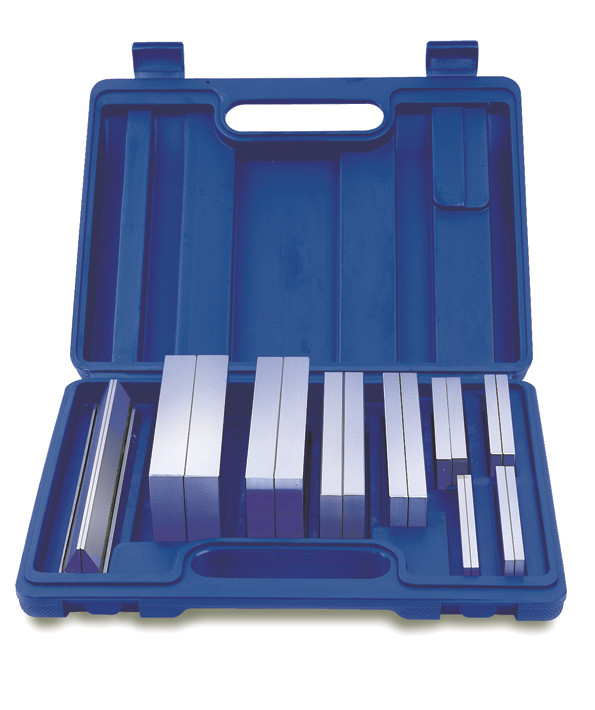

Palmgren 9638974 4" and 6" Vise Parallel Set | 18 Pieces

Palmgren 9638974 Vise Parallels Set is a precision-engineered tool essential for any machining or metalworking shop. These hardened tool steel parallels are precision ground on all six faces to provide exceptional flatness and parallelism. This ensures that workpieces are held perfectly parallel to the vise jaws or the machine table, improving machining accuracy and repeatability. This set includes a variety of lengths and thicknesses to accommodate different workpiece sizes and applications, ranging from small parts to larger components. The parallels allow you to raise your workpiece to the desired height inside the vise, preventing contact with the vise base and ensuring that cutting tools can access the workpiece without obstruction. Made from high-quality, heat-treated tool steel with a hardness rating between HRC 50-55, these parallels offer a balance of toughness and wear resistance, providing years of reliable service. The set also comes with a pair of position clamps to securely hold the parallels in place during machining operations.

Type: Parallel Set | Material: Steel | Piece: 18

Features:

• Set includes plastic case, 8 pair of parallels and 1 pair position clamps
• Hardness: HRC 50 to HRC55 degrees
• 2 pieces - 0.197" x 0.630" x 3.937"
• 2 pieces - 0.236" x 0.709" x 3.937"
• 2 pieces - 0.315" x 0.945" x 3.937"
• 2 pieces - 0.394" x 1.181" x 3.937"
• 2 pieces - 0.472" x 1.417" x 5.906"
• 2 pieces - 0.551" x 1.890" x 5.906"
• 2 pieces - 0.709" x 2.362" x 5.906"
• 2 pieces - 0.866" x 2.441" x 5.906"
• 2 pieces position clamp

Looking for more information about Palmgren Parallel Sets? Click here to view the Catalog.

Need help selecting the correct Palmgren Parallel Set for your application? Please call (800) 608-5210 or email info@intlairtool.com
