Palmgren 9634116 6" Heavy Duty Rotary Table | 7.87" x 6.30" Base Size

Palmgren 9634116 6" Heavy Duty Rotary Table is a precision-engineered fixture designed for demanding circular cutting, indexing, and positioning operations on milling machines and drill presses. Its robust steel construction—with a fully ground table top and dual-axis base—ensures exceptional squareness and repeatability whether used horizontally or vertically. The unit features an oil-immersed gear drive, hardened worm gear, and dual-action locking mechanisms for secure holding and smooth, accurate rotation. Graduated markings provide full 360° rotation with 4" per full crank turn, along with a vernier scale offering fine adjustments down to 10" of arc. With a compact 7.87" × 6.30" base, 6" diameter table, and capable of holding up to 40-lb vertically or 80-lb horizontally, it offers precision and versatility without occupying excessive space. Meticulously controlled tolerances—flatness to 0.0006" and parallelism/squareness to 0.0008"—ensure consistent accuracy, making this rotary table a durable, high?performance tool for professional machining and layout work.

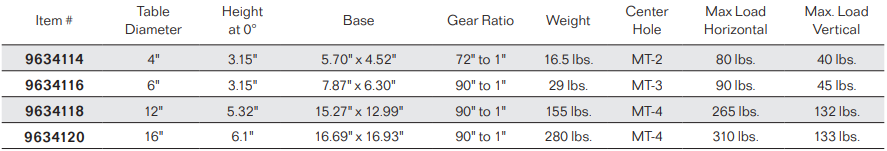

Type: Rotary Table | Base Dimension (in.): 7.87 x 6.30 | Center Hole (in.): MT-3 | Gear Ratio (in.): 90 - 1 | Height at 0° (in.): 3.15 | Includes: 6 Heavy Duty Rotary Table | Material: Steel | Max Load Horizontal (lbs): 90 | Max. Load Vertical (lbs): 45 | Positioning Table Type: Rotary | Table Diameter (in.): 6

Features:

• Low profile dimensions
• The table top and the vertical and horizontal bases are ground for overall squareness
• Gear drive is immersed in oil
• Dual positive action locks
• Hardened and ground worm gear
• The work table is graduated a full 360° - One turn on the handle moves the table 4°
• The micro collar is graduated in steps of 1 minute on the dial and 10 down to 10 seconds on the vernier scale
• Flatness of clamping surface ,0006" / Parallelism of clamping ­surface to base ,0008" / Squareness of clamping surface to angle face ,0008" / Squareness of clamping surface to center hole ,0008"

Looking for more information about Palmgren Rotary Tables? Click here to view the Catalog.

Need help selecting the correct Palmgren Rotary Table for your application? Please call (800) 608-5210 or email info@intlairtool.com
