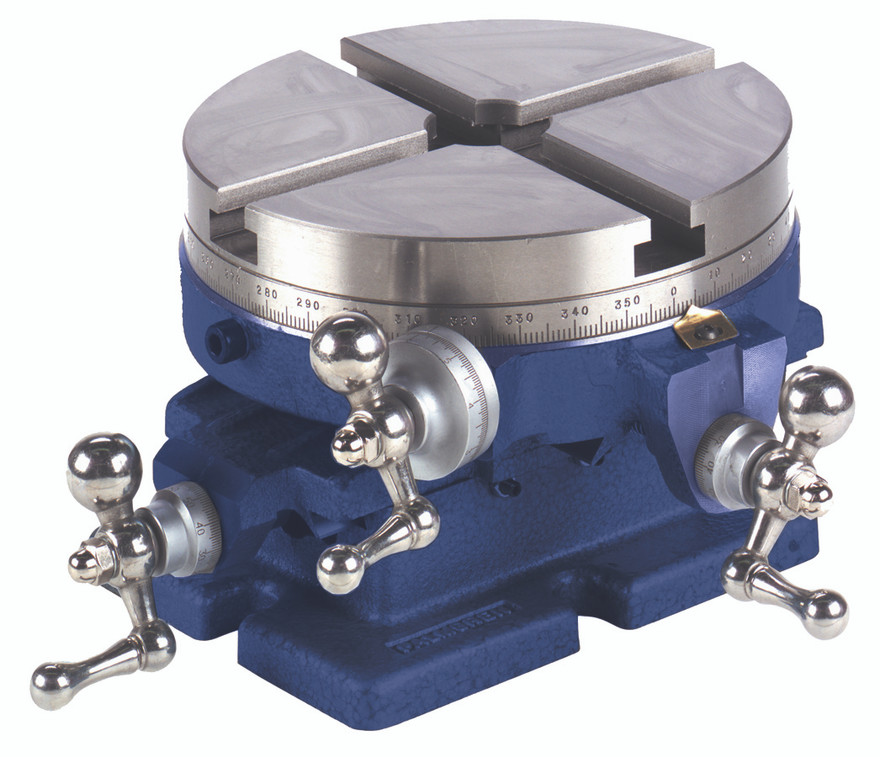

Palmgren 9632803 8" Rotary Cross Slide Table | 5/8" Table T-Slots

Palmgren 9632803 8" Rotary Cross Slide Table is a precision-engineered fixture that delivers smooth, accurate rotary, lateral, and transverse feeds for demanding milling, routing, slot cutting, and grinding tasks. Constructed from rigid cast iron with precision-ground surfaces, the 8" diameter table offers 4" of travel on both X and Y axes and full 360° rotation via a smooth worm gear drive with a 40:1 ratio. Balanced ball-crank handles eliminate interference with the machine table, while finely graduated dials provide 0.001" resolution on the cross slides and 3′ arc graduations, plus a 1' vernier on the rotary dial. A 5/8" T-slot and base keyway enable secure workpiece mounting and precise alignment, and the overall height of approximately 5-1/2" makes it a compact yet powerful enhancement for drill presses, mills, surface grinders, and CNC setups, bringing versatile, high-precision positioning to any workshop.

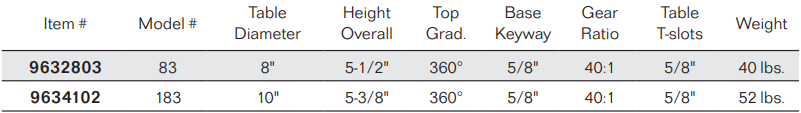

Type: Rotary Cross Slide Table | Base Keyway (in.): 5/8 | Height Overall (in.): 5-1/2 | Positioning Table Type: Cross Slide | Table Diameter (in.): 8 | Table T-Slots (in.): 5/8

Features:

• Accurately position work on the "X" and "Y" axis, as well as 360° table rotation
• Precision ground table top to 0 001" total indicator reading
• A 5/8" keyway and mounting lugs are provided for locating and accurate, secure mounting
• Smooth worm gear drive provides positive rotary feed
• Balanced ball crank feed handles do not exceed below the base to eliminate interference with the machine table
• 4? cross slide trave
• lCross slide dials are calibrated in 0 001" increments
• Rotary dials are graduated in 3 minute increments and 1 minute increment on the vernier

Looking for more information about Palmgren Rotary Cross Slide Tables? Click here to view the Catalog.

Need help selecting the correct Palmgren Rotary Cross Slide Table for your application? Please call (800) 608-5210 or email info@intlairtool.com
