This economical Palmgren Dual Force standard machine vise is recommended for milling, drilling, boring, tapping and finishing operations on most parts. These vises can be used on your machining centers as well as your basic manual machine tools.

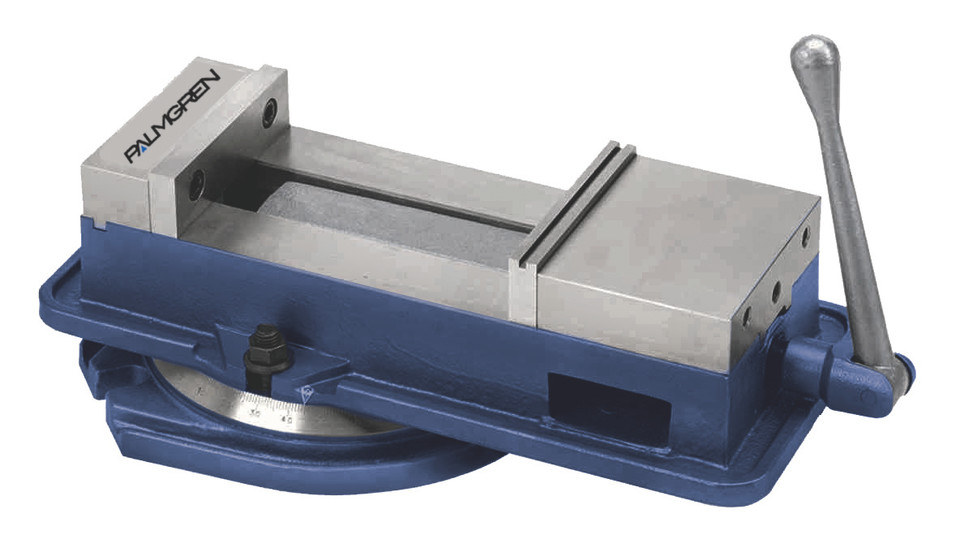

Palmgren 9626608 Milling Machine Vise is built to hold your workpieces firmly and accurately during milling and drilling jobs. With wide 6-inch jaws and a large 8-3/4-inch opening, it can easily clamp bigger parts securely. Its special dual force design keeps the jaws from lifting, so your work stays in place even under heavy pressure. The stationary base provides a solid, stable platform—perfect when you don’t need to rotate or swivel your work.
Type: Dual Force Milling Machine Vise | Jaw Deflection: 0.001 @ 4000 lbs | Jaw Opening (in.): 8-3/4 | Jaw Width (in.): 6 | Throat Capacity (in.): 1-3/4 | Vise Jaw Material: Steel | Vise Material: Iron | Vise Type: CNC | Product Length (in.): 24 | Product Height (in.): 6 | Product Width (in.): 14.5 | Includes: Stationary Base
Features:
- Equipped with Palmgren's anti-lift mechanism
- Friction reducing needle bearings reduce clamping friction
- Hardened jaw plates
- Hardened vise bed
- Semi-hard steel screw
- Extra-large opening
- 60,000 PSI ductile iron castings
Looking for more information about Palmgren Milling Machine Vises? Click here to view the Catalog.
Need help selecting the correct Palmgren Milling Machine Vise for your application? Please call (800) 608-5210 or email info@intlairtool.com
- Type
- Dual Force Milling Machine Vise
- Jaw Deflection
- 0.001 @ 4000 lbs
- Jaw Opening (in.)
- 8-3/4
- Jaw Width (in.)
- 6
- Throat Capacity (in.)
- 1-3/4
- Vise Jaw Material
- Steel
- Vise Material
- Iron
- Vise Type
- CNC
- Product Length (in.)
- 24
- Product Height (in.)
- 6
- Product Width (in.)
- 14.5
- Includes
- Stationary Base
