Handy robust angle vises are indispensable for work that requires frequent angle setups, including drilling, tapping, reaming, milling, and grinding.
Palmgren 9611405 Industrial Angle Vise with Swivel Base is designed for precision angle work and versatile positioning. Featuring a 4-inch jaw width, 4-inch jaw opening, and 1-3/4-inch throat capacity, this vise securely holds workpieces at precise angles for grinding, drilling, or milling. The fully adjustable swivel base allows for smooth 360° rotation, ensuring optimal access and alignment.

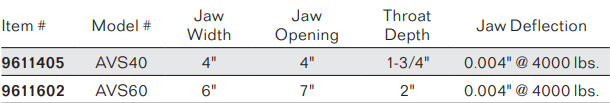

Type: Industrial Angle Vise | Jaw Deflection: 0.004 @ 4000 lbs | Jaw Opening (in.): 4 | Jaw Width (in.): 4 | Throat Capacity (in.): 1-3/4 | Vise Jaw Material: Steel | Vise Material: Iron | Vise Type: Drill Press | Product Length (in.): 14 | Product Height (in.): 7 | Product Width (in.): 7.5 | Application: Drilling | Drill Press Vise Type: Angle | Includes: Swivel Base
Features:
- Angle hinge is graduated in 1 degree increments from 0 to 90 degrees
- Base and bed are parallel to 0 004 in with the jaw surface square to 0 002
- Hinge pin hole is precision drilled and reamed for smooth accurate angle settings, with no lateral end play
- Angle vise can be mounted with or with out the swivel base
- Both the swivel base and angle vise feature two 5/8 in bolt slots for mounting
Looking for more information about Palmgren Angle Vises? Click here to view the Catalog.
Need help selecting the correct Palmgren Angle Vise for your application? Please call (800) 608-5210 or email info@intlairtool.com
- Type
- Industrial Angle Vise
- Jaw Deflection
- 0.004 @ 4000 lbs
- Jaw Opening (in.)
- 4
- Jaw Width (in.)
- 4
- Throat Capacity (in.)
- 1-3/4
- Vise Jaw Material
- Steel
- Vise Material
- Iron
- Vise Type
- Drill Press
- Product Length (in.)
- 14
- Product Height (in.)
- 7
- Product Width (in.)
- 7.5
- Application
- Drilling
- Drill Press Vise Type
- Angle
- Includes
- Swivel Base
