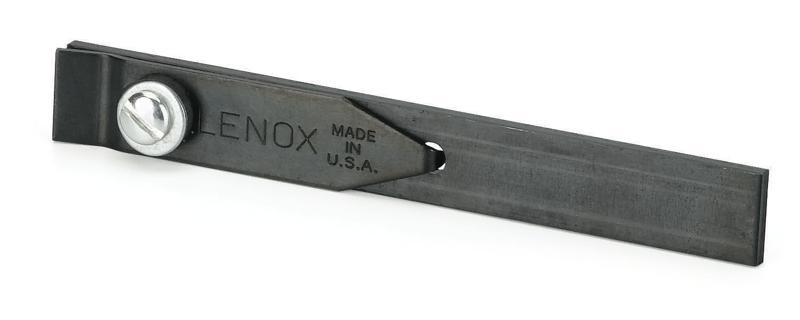

LENOX Bandsaw Blade Alignment Gauge | 62125

Built for band saw setup and straight-cutting checks, the LENOX 62125 Blade Alignment Gauge helps operators verify whether the blade is properly aligned before cutting. Proper blade alignment matters because an out-of-square blade can cause crooked cuts, premature blade wear, and extra setup time when band guide assemblies need adjustment. This gauge clips to the back of the blade and is used with a machinist’s square to check whether the blade is perpendicular to the saw bed.

For fabrication shops, maintenance departments, metal service centers, and production sawing operations, the 62125 Bandsaw Blade Alignment Gauge provides a simple visual reference for correcting blade tracking and guide alignment. It is part of LENOX advanced sawing support tooling and is intended for straight-cutting setup rather than cutting, measuring band speed, or checking blade tension.

Type: Bandsaw Blade Alignment Gauge | Brand: LENOX | SKU / Product No.: 62125 | Application: Blade alignment checking for straight cutting | Use With: Bandsaw blade and machinist’s square

Features:

• Helps measure blade alignment so band guide assemblies can be adjusted for straighter cuts.
• Clips to the back of the blade for a simple setup check before running material through the saw.
• Used with a machinist’s square to confirm whether the blade is perpendicular to the saw bed.
• Useful for troubleshooting cut drift, out-of-square cuts, and alignment issues during band saw setup.
• Compact setup tool for shops that need a repeatable way to check blade position without complex instrumentation.
• Supports better sawing consistency when used as part of routine blade installation and machine setup procedures.

Applications:

• Metal fabrication shops: Checking blade squareness before cutting bar stock, tubing, plate, and structural shapes.
• Industrial maintenance & MRO: Verifying band saw setup after blade changes, guide adjustments, or machine service.
• Production sawing: Reducing setup variation where straight, repeatable cuts are required across multiple workpieces.
• Toolrooms & machine shops: Supporting accurate saw preparation before cutting blanks, fixtures, and repair parts.
• Garage and small-shop use: Helping operators diagnose crooked cuts on shop band saws using a simple square-check method.

FAQs:

• Q: What does the LENOX 62125 Blade Alignment Gauge do?
  A: It helps check whether a band saw blade is aligned for straight cutting. The gauge clips to the back of the blade, then a machinist’s square is used to see if the blade is perpendicular to the saw bed.
• Q: Does this gauge adjust the band saw automatically?
  A: No. It is a checking tool that helps you see the blade alignment condition. Any adjustments to the band guide assemblies must be made separately according to the saw manufacturer’s instructions.
• Q: Do I need a machinist’s square to use this tool?
  A: Yes. LENOX describes the tool as being used with a machinist’s square to verify whether the blade is perpendicular to the bed.
• Q: Is this the same as a blade tension meter?
  A: No. A blade tension meter checks blade tension, while the 62125 Blade Alignment Gauge checks blade alignment for straight cutting setup.
• Q: When should I check blade alignment?
  A: Check alignment after installing a new blade, after adjusting band guides, when cuts begin drifting, or any time the saw is not producing square cuts.
