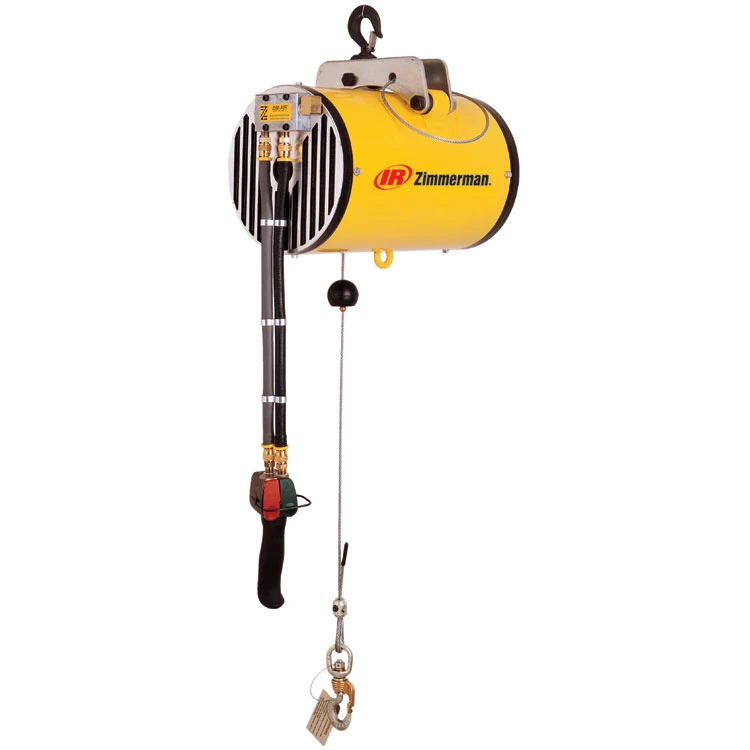

Ingersoll Rand Zimmerman ZAW035080 Pneumatic Balancer is a compressed-air-powered lifting and positioning system equipped with pendant control for repetitive material handling and assembly operations. Part of the ZA Series Zim-Air product line, this balancer provides a 350 lbs lifting capacity at 100 PSI with 80 inches of vertical travel. The single-wire-rope configuration uses an ergonomic up/down pendant with color-coded thumb levers for controlled lifting and lowering. Variable-speed operation lets operators adjust load movement when positioning components, loading machinery, or transferring materials between workstations.
The ZAW035080 features an automatic balanced-load condition, also known as float mode, which allows up to 18 inches of manual positioning travel after pendant operation. This functionality supports accurate component alignment without continuous pendant adjustments. The balancer includes a 12 ft pendant hose, an all-steel housing, aircraft-grade wire rope, and a self-closing cast safety hook. Additional features include an emergency centrifugal cable retraction brake, load-holding protection during air supply interruption, and intrinsic overload protection. The unit has a 10-inch diameter and a 62 lb net weight, key specifications for overhead installation planning.
Type: Pneumatic Balancer | Model: ZAW035080 | Series: ZA Series / Zim-Air | Control Type: Up/Down Pendant | Load Capacity: 350 lbs at 100 PSI | Vertical Travel: 80 in. | Wire Rope Configuration: Single Wire Rope | Pendant Hose Length: 12 ft | Manual Float Travel: Up to 18 in. | Diameter: 10 in. | Net Weight: 62 lbs
Note: Suspension Kit/Mounting Hardware is sold separately.
Features:
- 350 lbs lifting capacity at 100 PSI for pneumatic lifting and positioning operations.
- 80-inch vertical travel accommodates lifting and lowering between workstation heights.
- Ergonomic up/down pendant with low-effort, color-coded thumb levers for controlled load movement.
- Variable-speed pendant operation allows gradual adjustment of lifting and lowering speed.
- Automatic balanced-load condition provides up to 18 inches of manual float travel for precise positioning.
- All-steel housing, aircraft-grade wire rope, and self-closing cast safety hook support repetitive material handling.
- Emergency centrifugal cable retraction brake limits rapid upward cable movement if a suspended load is accidentally released.
- Load-holding protection during air supply interruption and intrinsic overload protection provide additional operating safeguards.
Applications:
- Automotive assembly operations involving repetitive component lifting and positioning.
- Manufacturing workstations requiring controlled material transfer and load alignment.
- Machine loading and unloading of components within the rated lifting capacity.
- Production assembly lines requiring pendant-operated lifting assistance.
- Industrial pick-and-place operations involving variable-weight loads.
FAQs:
- Q: What is the lifting capacity of the Ingersoll Rand Zimmerman ZAW035080?
A: The ZAW035080 has a maximum lifting capacity of 350 lbs at 100 PSI air pressure. - Q: How much vertical travel does the ZAW035080 provide?
A: The balancer provides 80 inches of vertical travel for lifting and lowering loads. - Q: What type of control does this pneumatic balancer use?
A: It uses an up/down pendant with color-coded thumb levers and variable-speed control for lifting and lowering operations. - Q: Does the ZAW035080 support manual load positioning?
A: Yes. Its automatic balanced-load condition allows up to 18 inches of manual float travel after pendant positioning. - Q: Is mounting hardware included with the ZAW035080?
A: Suspension kits and mounting hardware are sold separately. The appropriate mounting arrangement must be selected for the installation.
| SKU - B | ZA | BA | EA | Capacity lb (kg) | Travel in (mm) | Net Weight lb (kg) |
|---|---|---|---|---|---|---|
| SINGLE WIRE ROPE | ||||||
| BW015080¹ | ZAW015080¹ | BAW015080¹ | EAW015080¹ | 150 (68) | 80" (2032) | 50 (23) |
| BW020120 | ZAW020120 | BAW020120 | EAW020120 | 200 (90) | 120" (3048) | 62 (28) |
| BW020120S² | ZAW020120S² | BAW020120S² | EAW020120S² | 200 (90) | 120" (3048) | 62 (28) |
| BW032080S² | ZAW032080S² | BAW032080S² | EAW032080S² | 325 (147) | 80" (2032) | 62 (28) |
| BW035080¹ | ZAW035080¹ | BAW035080¹ | EAW035080¹ | 350 (158) | 80" (2032) | 62 (28) |
| BW050080 | ZAW050080 | BAW050080 | EAW050080 | 500 (227) | 80" (2032) | 110 (50) |
| BW050080S² | ZAW050080S² | BAW050080S² | EAW050080S² | 500 (227) | 80" (2032) | 110 (50) |
Looking for more information about Ingersoll Rand Balancer? Click here to view the Catalog.
For help selecting the correct Ingersoll Rand Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
