Ingersoll Rand W5350 Torque Impact Wrench | 1/2" Drive Size | 1,900 RPM | 180 (ft-lbs) Max Torque (Bare Tool Only, Battery Not Included)

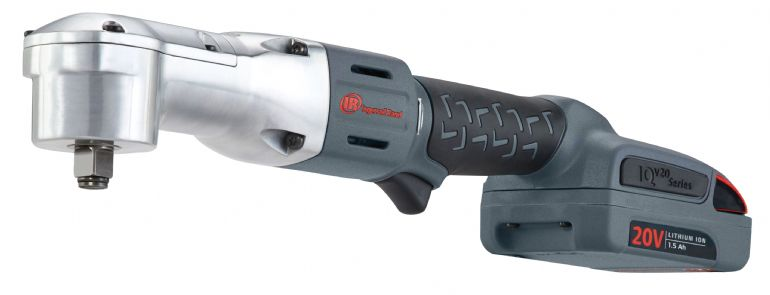

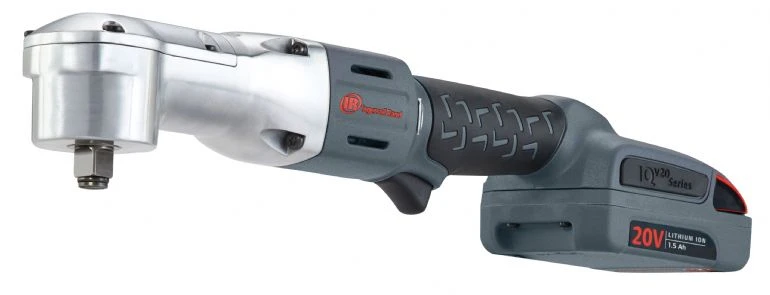

Ingersoll Rand W5350 IQV20 Series Right Angle Impactool combines the reach of a ratchet-style tool with cordless impact performance for fastening and removal work in confined areas. Built on the 20V IQV20 Series platform, this model features a 1/2" hog ring drive and Inline battery configuration, helping technicians reach fasteners where the body or battery position of a conventional impact wrench can restrict access.

The W5350 operates at a variable 0–1,900 RPM no-load speed. Ingersoll Rand specifies 180 ft-lbs (245 Nm) of maximum torque with a BL2012 battery and 190 ft-lbs (258 Nm) with BL2010 or BL2022 batteries. Reactionless impact torque, a variable-speed trigger, and an accessible forward/reverse switch provide useful control for automotive repair, industrial work, and facility maintenance.

*Note: This listing is for the bare tool only. Battery and charger are not included and must be purchased separately.

Type: Cordless Right Angle Impact Wrench | Series: IQV20 Series | Model: W5350 | Configuration: Bare Tool | Voltage: 20V DC | Drive Size: 1/2" | Drive Type: Hog Ring | No-Load Speed: 0–1,900 RPM | Max Torque with BL2012: 180 ft-lbs (245 Nm) | Max Torque with BL2010/BL2022: 190 ft-lbs (258 Nm) | Tool & Battery Weight with BL2012: 4.55 lb (2.06 kg) | Tool & Battery Weight with BL2010/BL2022: 5.15 lb (2.27 kg) | Length with Battery: 17.25" (439 mm)

Features:

• Right-angle configuration combines ratchet-like reach with impact action for working around closely spaced components and restricted fasteners.
• 1/2" hog ring drive provides the larger drive configuration in the W5330/W5350 right-angle Impactool™ family.
• Inline battery design positions the battery along the tool body to help the wrench reach spaces traditionally accessed with a ratchet.
• Reactionless impact torque delivers fastening power while reducing the reaction associated with conventional ratcheting action.
• Variable-speed trigger provides control across the 0–1,900 RPM no-load speed range.
• Conveniently located forward/reverse switch gives the operator direct control when changing between fastening and removal.
• Ergonomic handle and comfort grip provide reach comparable to a ratchet for work in confined locations.

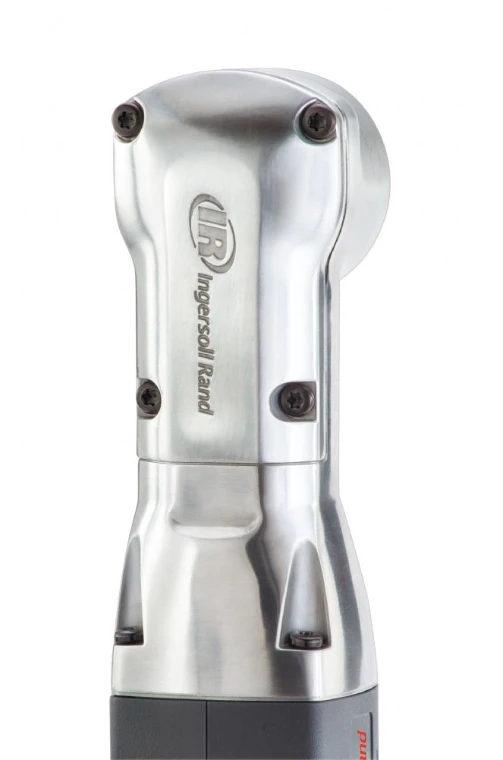

• Steel-lined aluminum hammer case and tough nylon housing help protect the tool from shop fluids and repeated drops.
• Fully serviceable head provides improved component accessibility when tool service is required.

Applications:

• General automotive repair involving fasteners located around crowded vehicle components.
• General industrial fastening and equipment maintenance requiring cordless mobility.

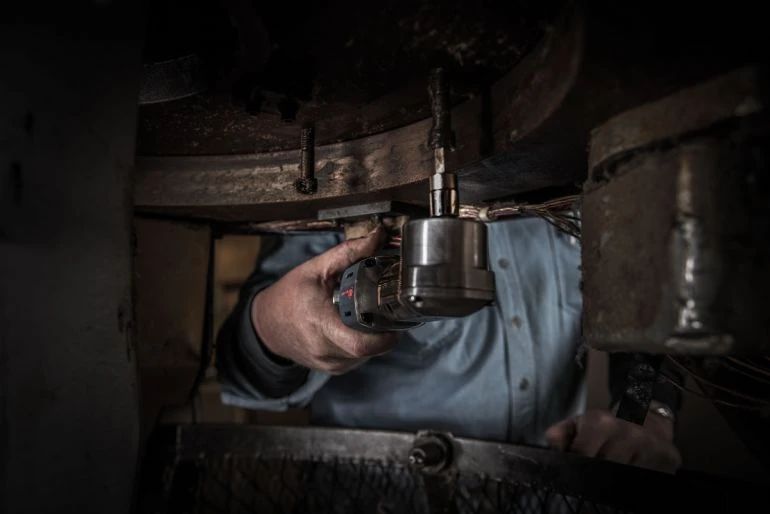

• Facility maintenance where access limitations make a conventional impact wrench difficult to position.
• Fastening and removal tasks that benefit from a 1/2" drive combined with a slim right-angle tool configuration.

FAQs:

• Q: Does the W5350 bare tool include a battery or charger?
  A: No. This listing is for the W5350 bare tool only. The battery and charger are not included and must be obtained separately.
• Q: What drive size does the Ingersoll Rand W5350 use?
  A: The W5350 uses a 1/2" hog ring drive. The related W5330 uses a 3/8" drive.
• Q: How much maximum torque does the W5350 produce?
  A: Ingersoll Rand's IQV20 Series brochure specifies 180 ft-lbs (245 Nm) with a BL2012 battery and 190 ft-lbs (258 Nm) with a BL2010 or BL2022 battery.
• Q: What is the no-load speed of the W5350?
  A: The W5350 has a variable 0–1,900 RPM no-load speed, allowing the operator to regulate speed with the trigger.
• Q: What is the difference between the W5350 and W5330?
  A: The primary difference identified in the manufacturer brochure is drive size. The W5350 uses a 1/2" drive, while the W5330 uses a 3/8" drive. The brochure lists the same battery-dependent maximum torque, no-load speed, weight, and length specifications for both models.
• Q: What applications does Ingersoll Rand identify for the W5350?
  A: The manufacturer brochure identifies facility maintenance, general industrial work, and general automotive repair as ideal applications for the W5330/W5350 Right Angle Impactool family.

Available in the following kits:

• W5350-K12 1/2" Impact Wrench Kit (BC1121 Charger, 1 BL2012 Li-ion Battery & Case)
• W5350-K22 1/2" Impact Wrench Kit (BC1121 Charger, 2 BL2012 Li-ion Battery & Case)
• W5330-K22 3/8" Impact Wrench Kit (BC1121 Charger, 2 BL2012 Li-ion Battery & Case)
• W5330-K12 3/8" Impact Wrench Kit (BC1121 Charger, 1 BL2012 Li-ion Battery & Case)
