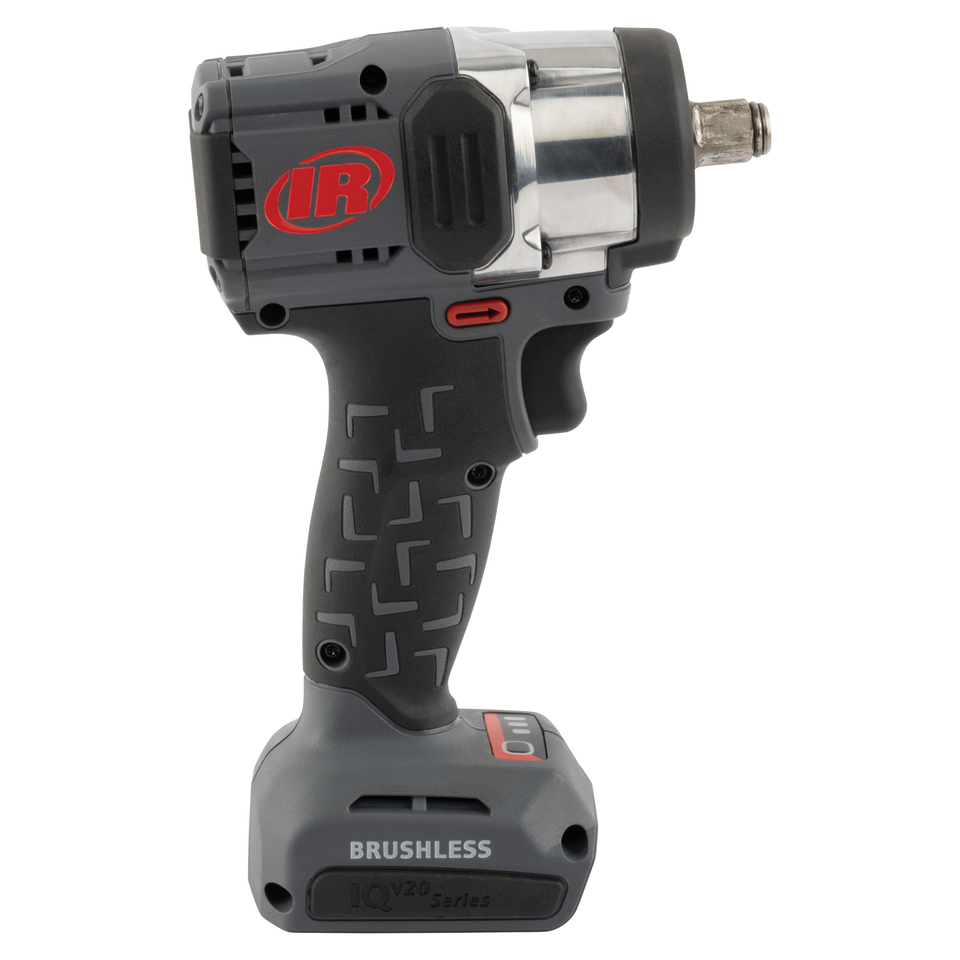

Ingersoll Rand W3131 IQV20 Compact Impact Wrench | 3/8" Square Drive | 2800 RPM

Bring cordless fastening power into confined workspaces with the Ingersoll Rand W3131 IQV20 Cordless Compact Impact Wrench. Featuring a 3/8" square drive and an efficient 20V brushless motor, this compact tool delivers up to 400 ft-lbs of breakaway torque for loosening stubborn fasteners and 300 ft-lbs of fastening torque. Its 5.2" compact length and 2.3 lb listed weight make it well suited for automotive repair, equipment servicing, and maintenance work where larger impact wrenches can be difficult to position.

The W3131 combines 2,800 RPM free speed with 4,200 impacts per minute for efficient fastening and removal. Three selectable speed modes, a variable-speed trigger, and a patented 360° Shadowless LED light ring provide control and visibility around fasteners. Its durable metal gear case, impact-resistant bumpers, and ergonomic overmolded grip support regular workshop use. Supplied as a bare tool only, the W3131 is compatible with Ingersoll Rand IQV20 batteries, allowing technicians to expand an existing cordless tool collection.

Type: Cordless Compact Impact Wrench | Model: W3131 | Series: IQV20 | Configuration: Bare Tool Only | Voltage: 20V | Motor: Brushless | Drive Size: 3/8" | Drive Type: Square | Maximum Breakaway Torque: 400 ft-lbs | Maximum Fastening Torque: 300 ft-lbs | Free Speed: 2,800 RPM | Impacts Per Minute: 4,200 | Speed Modes: 3 | Trigger: Variable Speed | Lighting: 360° Shadowless LED Ring | Length: 5.2" (132 mm) | Weight: 2.3 lbs (1.0 kg), manufacturer-listed tool weight | Battery Platform: Ingersoll Rand IQV20™ | Battery and Charger: Not Included

Features:

• Efficient brushless motor delivers substantial fastening power while supporting battery runtime and reducing motor maintenance requirements.
• 400 ft-lbs maximum breakaway torque provides loosening capability for suitable automotive and mechanical fasteners.
• 3/8" square drive accepts compatible impact-rated sockets for maintenance and repair applications.
• Three selectable speed modes allow operators to adjust wrench performance according to fastener size and task requirements.
• Variable-speed trigger provides progressive control when starting, tightening, or removing threaded fasteners.
• Compact 5.2" length improves tool positioning around closely spaced vehicle and machinery components.
• Lightweight 2.3 lb construction helps reduce handling effort during repeated fastening operations.
• Patented 360° Shadowless LED light ring illuminates the fastening area from multiple directions, improving visibility in restricted spaces.
• Durable metal gear case protects internal drive components during regular service work.
• Impact-resistant bumpers on the upper and lower housing help protect the tool against accidental contact and handling impacts.
• Ergonomic overmolded grip provides a comfortable handling surface for extended use.
• Compatible with Ingersoll Rand IQV20 batteries for convenient integration with an existing cordless tool system.

Applications:

• Automotive repair – Removing suitable mounting bolts, brackets, and mechanical fasteners in confined vehicle compartments.
• Collision repair – Servicing accessible body hardware and mechanical components during vehicle disassembly and reassembly.
• Industrial maintenance and MRO – Loosening and installing fasteners on equipment housings, machinery guards, and mechanical assemblies.
• Heavy equipment repair – Performing compatible fastening tasks where compact dimensions improve access around machinery components.
• Mobile and field service – Completing fastening and removal operations without requiring compressed-air hoses or nearby electrical outlets.

FAQs:

• Q: How much torque does the Ingersoll Rand W3131 deliver?
  A: Ingersoll Rand specifies up to 400 ft-lbs of breakaway torque and 300 ft-lbs of fastening torque. Breakaway torque refers to fastener-loosening capability, while fastening torque describes tightening output. Neither rating represents a calibrated final tightening setting.
• Q: Does the W3131 include a battery and charger?
  A: No. SKU W3131 is offered here as a bare tool only. A compatible IQV20™ battery and charger are required for operation and must be purchased separately unless already available.
• Q: What is the difference between the W3131 and W3151?
  A: The W3131 features a 3/8" square drive and delivers 400 ft-lbs of breakaway torque. The W3151 uses a 1/2" square drive and is rated at 450 ft-lbs of breakaway torque. Both models offer three speed settings, 2,800 RPM free speed, and 4,200 impacts per minute. Choose according to the required socket drive size and fastening application.
• Q: What are the advantages of the three-speed control?
  A: Three selectable speed modes allow operators to choose different output levels for various fastening tasks. Combined with the variable-speed trigger, they help provide greater control when positioning sockets, starting fasteners, and performing repeated maintenance operations.
• Q: Can the W3131 be used with standard 3/8" drive sockets?
  A: The wrench has a 3/8" square drive, but impact-rated sockets should be used for powered impact applications. Ordinary hand-tool sockets may not be designed to withstand repeated rotational impacts.
• Q: Is the W3131 suitable for precise final tightening?
  A: The W3131 can install compatible threaded fasteners, but its speed settings are not calibrated torque settings. Use a calibrated torque wrench whenever the assembly or equipment manufacturer specifies a final tightening value.

Looking for more information about Ingersoll Rand Cordless Compact Impact Wrench? Click here  to view the Ingersoll Rand Air Motors Catalog.

For help choosing the correct Ingersoll Rand Cordless Compact Impact Wrenches for your application, please call (800) 608-5210 or email info@intlairtool.com
