Ingersoll Rand TIR6600S-P00AP Plain Trolley | TIR Series | 1/4-3 (metric tons) Capacity | Plain Suspension

Moving suspended loads along an overhead beam requires a trolley that matches the hoist, beam flange, and intended lifting capacity. The Ingersoll Rand TIR6600S-P00AP Plain Trolley is a manually traversed trolley from the TIR Series, designed to support appropriately configured hoist installations and material handling operations. Its 6,600 lb (3 metric ton) maximum capacity provides the upper capacity limit of the TIR6600 family, which covers hoist applications from 1/4 to 3 metric tons. The plain suspension configuration without a lug or adapter makes this model a specific trolley arrangement rather than a complete hook-on or rigid-mounted hoist assembly. The trolley rolls along the beam by manual movement, without a motor or geared hand-chain drive.

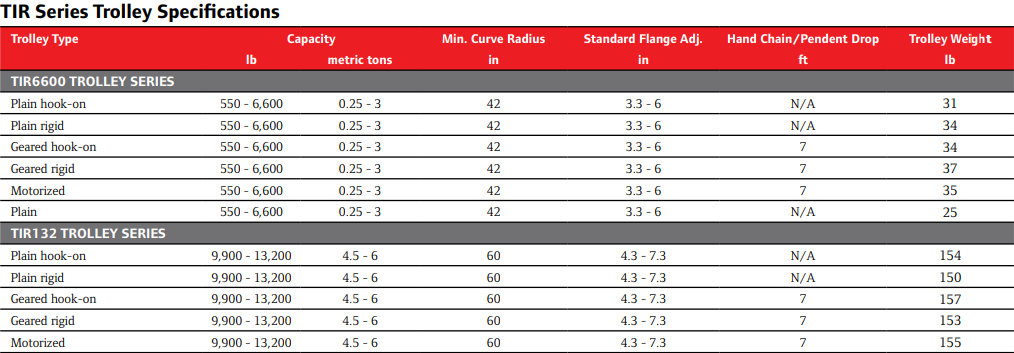

The TIR6600S-P00AP features standard cast-iron wheels with a universal tread designed for both flat and tapered beam flanges. Its standard adjustment range accommodates 3.3-inch to 6-inch beam flange widths, while the manufacturer specifies a 42-inch minimum curve radius for the TIR6600 family. The all-steel construction includes integral rail sweeps on the side plates, which help clear debris from the wheel travel path, and permanently greased, sealed wheel bearings for rolling movement. The manufacturer's catalog lists a 25 lb trolley weight for the plain, no-lug configuration. Designed around a modular frame, the TIR Series can accommodate other suspension and drive arrangements through separately specified components, providing flexibility when configuring a suitable lifting system.

Type: Plain Beam Trolley | Model: TIR6600S-P00AP | Series: TIR Series | Capacity: Up to 3 Metric Tons (6,600 lbs) | TIR6600 Family Capacity Range: 1/4–3 Metric Tons (550–6,600 lbs) | Drive: Manual Traverse, Plain | Suspension: Plain, Without Lug | Wheel Material: Cast Iron | Wheel Tread: Universal, Flat or Tapered Flanges | Standard Beam Flange Width: 3.3"–6" | Minimum Curve Radius: 42" | Catalog Trolley Weight: 25 lbs | Hand Chain or Pendant: Not Applicable | Design Factor: Minimum 5:1 | Referenced Hoisting Standard: ANSI B30.16

Features:

• Plain, manually traversed design allows the trolley to travel along a suitable overhead beam without an electric motor, air motor, or geared hand-chain mechanism.
• TIR6600 frame provides capacity for appropriately configured lifting applications up to 6,600 lbs.
• Standard cast-iron wheels with universal tread accommodate suitable flat or tapered beam flanges.
• Permanently greased sealed wheel bearings support rolling travel without requiring a separate wheel-bearing lubrication arrangement during normal operation.
• All-steel construction provides the structural framework for the trolley's intended lifting application.
• Integral rail sweeps help clear debris from the beam travel path as the trolley moves.
• Minimum 42-inch curve radius allows installation on properly designed curved beam systems meeting the manufacturer's requirements.
• Modular frame construction supports alternative hook-on, rigid, geared, and motorized configurations when the correct additional components are specified.
• Manufacturer-designed to meet ANSI B30.16 hoisting requirements with a minimum 5:1 safety factor.

Made in USA:

Applications:

• Industrial material handling: Providing horizontal trolley travel along a suitable overhead beam as part of a correctly configured hoist installation.
• Manufacturing facilities: Supporting the positioning of suspended equipment and components between designated workstations.
• Machinery maintenance: Moving appropriately supported hoists and loads along a beam during equipment installation, removal, and repair.
• Fabrication shops: Incorporating a manually traversed trolley into overhead lifting arrangements for handling fabricated components.
• Assembly operations: Supporting controlled horizontal positioning of suspended workpieces where a manual trolley is appropriate.
• Lifting system configuration: Serving as the plain, no-lug trolley arrangement when the required mounting and suspension components are selected separately.

FAQs:

• Q: What is the capacity of the Ingersoll Rand TIR6600S-P00AP?

  A: The TIR6600 trolley family covers hoist capacities from 1/4 to 3 metric tons, or 550 to 6,600 lbs. The TIR6600S-P00AP is a 6,600 lb trolley model. The allowable working load of a complete installation is limited by the lowest-rated component, including the trolley, suspension arrangement, hoist, and supporting structure.

• Q: What does plain suspension mean for this trolley?

  A: The P00AP configuration identifies a plain trolley with no lug. It is not the same as a complete plain hook-on or plain rigid trolley assembly. Any required suspension connection or adapter must be selected for the intended hoist and verified against the manufacturer's configuration instructions.

• Q: What beam flange widths does the TIR6600S-P00AP accommodate?

  A: The manufacturer's catalog lists a standard flange adjustment range of 3.3 to 6 inches for the TIR6600 family. Beam suitability also depends on flange geometry, load capacity, beam condition, and proper wheel engagement. A separately specified wide-flange kit is listed for 6- to 12-inch flanges.

• Q: Does the trolley include a hand chain or powered travel drive?

  A: No. The model code identifies a plain trolley, and the 00 code indicates no pendant or hand chain. This configuration is intended for manual travel rather than geared or motorized movement.

• Q: Can this trolley travel on curved beams?

  A: Ingersoll Rand lists a 42-inch minimum curve radius for the TIR6600 family. The beam must meet the manufacturer's dimensional and structural requirements, and the trolley must be correctly adjusted and inspected before use.

• Q: Is the TIR6600S-P00AP supplied with a hoist?

  A: The part number identifies the trolley configuration, not a complete hoist-and-trolley package. The manufacturer's ordering system lists separate suspension adapters for specific hoists. Confirm the required mounting arrangement and associated components before ordering.
