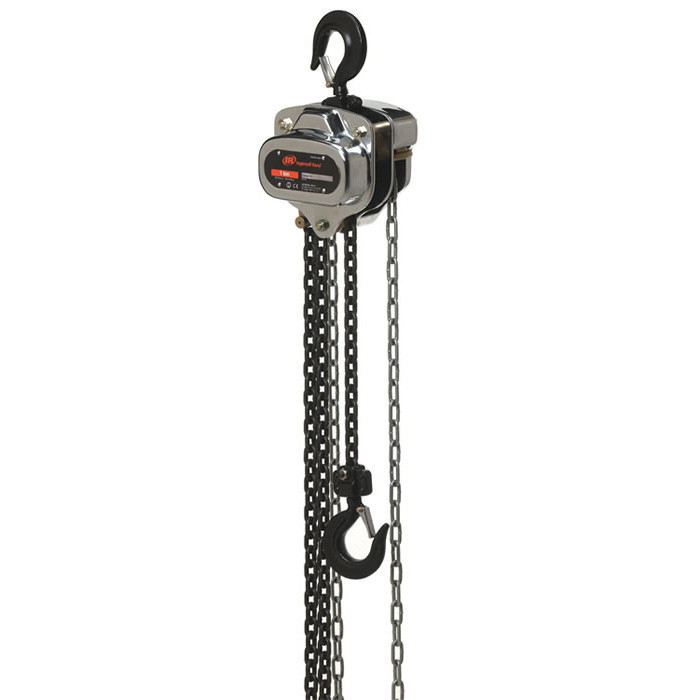

Ingersoll Rand SMB050-FV Silver Series Manual Chain Hoist is a 5 metric ton (11,000 lb) capacity hoist supplied without load chain. This configuration is intended for applications where the required load-chain length is selected separately rather than supplied as a fixed lift configuration. The SMB050 uses 2 chain falls and features high-strength, all-stamped steel construction, roller-bearing support, and an open-frame design for easier cleaning and inspection.
The SMB050 is specified for a 9 x 27 mm load chain and requires 83 lb of pull to lift the rated load. The manufacturer specifies 187 ft of chain overhaul per 1 ft of load lift and a 2.4 lb/ft load-chain weight. The Silver Series also incorporates a self-adjusting disc-type double-pawl mechanical load brake, double hand-chain guides, hardened swivel-latch hooks, and overload protection through a clutch that slips in the lifting direction only. Because SMB050-FV is the hoist-without-load-chain configuration, a specific lift height or hand-chain drop should not be assigned to this SKU.
Type: Manual Chain Hoist | Series: Silver Series | Model: SMB050-FV | Capacity: 5 Metric Tons (11,000 lb) | Configuration: Hoist Without Load Chain | Chain Falls: 2 | Load Chain Size: 9 x 27 mm | Pull to Lift Rated Load: 83 lb | Chain Overhaul: 187 ft per 1 ft of Load Lift | Load Chain Weight: 2.4 lb/ft | Overload Protection: Slip Clutch | Minimum Headroom: 28 in
Features:
- Hoist-only configuration is supplied without load chain, allowing the required chain length to be selected separately.
- High-strength, all-stamped steel construction provides decreased weight and improved impact resistance.
- Two chain falls provide the specified lifting arrangement for the 5 metric ton SMB050 capacity.
- Encased and retained roller bearings on the input shafts support efficient operation and ease of maintenance.
- Self-adjusting disc-type double-pawl mechanical load brake provides controlled load holding.
- Overload protection uses a clutch that slips in the lifting direction only.
- Nickel/chrome-plated exterior and zinc-plated frame components provide increased corrosion resistance.
- Double hand-chain guides help provide smooth operation when pulling excess hand chain.
- Open-frame construction allows easier cleaning and inspection.
- Hardened swivel-latch hooks provide the specified hook configuration for the Silver Series.
- CE-certified hoists meet or exceed regional requirements including ASME B30.16 and HST-2M.
Applications:
- Industrial maintenance — lifting and positioning machinery components when the required load-chain length is selected separately.
- Construction and rigging — configuring the hoist with a load-chain length appropriate to the lifting application.
- Material handling — controlled manual lifting within the 5 metric ton rated capacity.
- Rental and construction applications — using a Silver Series hoist where a hoist-only configuration is required.
FAQs:
- Q: What does “hoist without load chain” mean?
A: The SMB050-FV is supplied without load chain. The appropriate load-chain length must be selected separately for the intended lifting application. - Q: What is the capacity of the SMB050-FV?
A: The hoist has a rated capacity of 5 metric tons, equivalent to 11,000 lb. - Q: How many chain falls does the SMB050-FV use?
A: The SMB050 uses 2 chain falls for its 5 metric ton rated capacity. - Q: What size load chain is specified for the SMB050?
A: The SMB050 is specified for a 9 x 27 mm load chain when load chain is installed. - Q: What is the pull to lift the rated load?
A: The specified pull to lift the rated 5 metric ton load is 83 lb. - Q: Does the SMB050-FV have a specified lift height?
A: No. This SKU is the hoist-without-load-chain configuration, so a specific lift height should not be assigned to it. - Q: Does the SMB050-FV have a specified hand-chain drop?
A: No fixed hand-chain drop should be assigned to this SKU. The product is the hoist-without-load-chain configuration. - Q: What is the minimum headroom for the SMB050?
A: The specified minimum headroom for the SMB050 is 28 in.
| SKU | CAPACITY | # FALLS | PULL TO LIFT RATED LOAD |
CHAIN O'HAULED TO LIFT LOAD 1 FT |
CHAIN SIZE MM |
CHAIN WEIGHT PER FOOT |
SHIPPING WEIGHT WITH 10' OF LIFT |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LB | METRIC TONS | LB | KG | FT | M | LB | KG | LB | KG | |||
| SMB005 | 1,100 | 0.50 | 1 | 55 | 25 | 25 | 7.6 | 5 x 15 | 0.6 | 0.3 | 23.5 | 10.68 |
| SMB010 | 2,200 | 1 | 1 | 64 | 29.1 | 39 | 11.9 | 6 x 18 | 0.6 | 0.3 | 26.8 | 12.18 |
| SMB015 | 3,300 | 1.50 | 1 | 69 | 31.4 | 58 | 17.7 | 7 x 21 | 1 | 0.5 | 38.5 | 17.5 |
| SMB020 | 4,400 | 2 | 1 | 77 | 35 | 75 | 22.9 | 8 x 24.6 | 1.1 | 0.5 | 42.4 | 19.27 |
| SMB030 | 6,600 | 3 | 1 | 100 | 45.5 | 116 | 35.4 | 10 x 30 | 2.1 | 1 | 70.4 | 32 |
| SMB050 | 11,000 | 5 | 2 | 83 | 37.7 | 187 | 57 | 9 x 27 | 2.4 | 1.1 | 90.2 | 41 |
Looking for more information about the Ingersoll Rand Hoist? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Hoists for your assembly application, please email info@intlairtool.com or call (800) 608-5210
- Type
- Manual Chain Hoist
- Chain Overhauled to Lift Load 1 (ft.)
- 187
- Pull To Lift Rated Load (lbs.)
- 83
- Capacity (lbs)
- 11000
- Capacity (tons)
- 5
