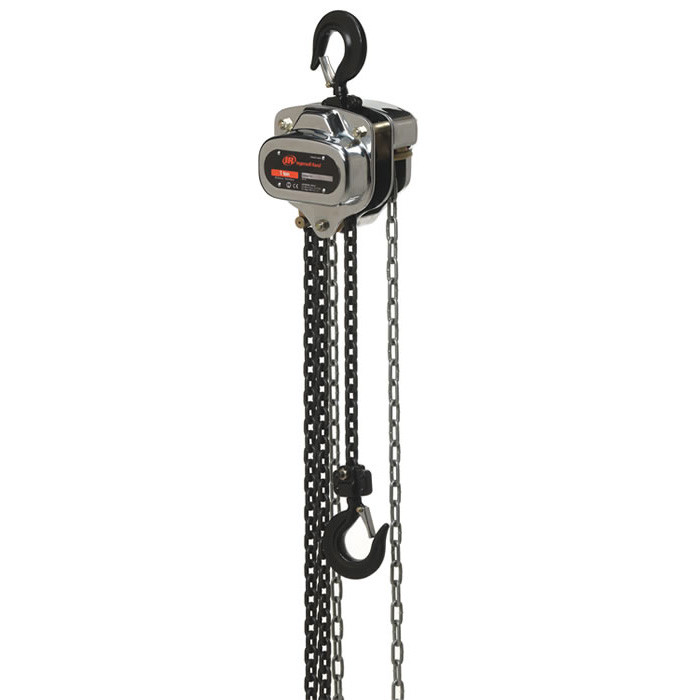

Ingersoll Rand SMB050-25-23V Silver Series Manual Chain Hoist | 25' Standard Lift | 5 (metric tons) Capacity | 2 Chain Falls

Ingersoll Rand SMB050‑25‑23V Silver Series Manual Chain Hoist is a heavy‑duty manual lifting solution designed for demanding industrial and material handling applications. It delivers a 5 metric ton lifting capacity, making it ideal for heavy‑load lifting tasks in workshops, warehouses, construction sites, and maintenance operations. This model features a 25 ft standard lift, providing extended vertical reach for a variety of lifting needs. Equipped with 2 chain falls, it offers enhanced lifting power and smoother, more controlled operation for heavier loads. Part of the Silver Series, the hoist is known for rugged construction and dependable performance in tough working environments. Its durable steel housing protects internal components from wear and damage during regular use. Manual hand chain operation allows precise load positioning without requiring electrical or pneumatic power. Forged steel hooks with safety latches improve load security during lifting tasks. Designed to meet industrial safety standards, this chain hoist delivers consistent performance, long service life, and ease of use for heavy material handling and rigging applications.

Type: Manual Chain Hoist | Capacity (metric tons): 5 | Capacity (lbs): 11,000 | Standard Lift (ft.): 25 | Pull to Lift Rated Load (lbs): 83.5 | Number of Chain Falls: 2 | Chain Overhauled to Lift Load 1 (ft.): 213.2 | Load Chain Size (mm): 9 x 27.2 | Min Head Room (in.): 28 | Hand Chain Drop V (ft.): 23

Features: Overload Protection to deter and reduce downtime and repair costs resulting from abuse All steel, low headroom, lightweight construction Self-adjusting disc-type double pawl mechanical load brake Hardened roller bearings for maximum efficiency and durability 4-layer finish of nickel, copper, nickel, and chrome - rugged enough to last Ideal for the Rental and Construction markets Hand chain drop is 2 feet less than the lift (unless specified)

Looking for more information about the Ingersoll Rand Hoist? Click here to view the Catalog
