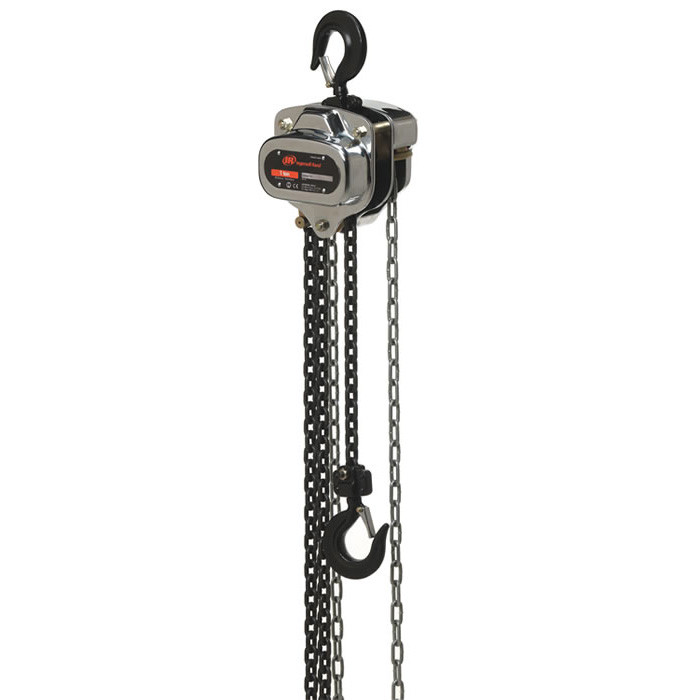

Ingersoll Rand SMB050-15-13V Silver Series Manual Chain Hoist is designed for controlled manual lifting of loads up to 5 metric tons (11,000 lb). This configuration provides a 15 ft standard lift, 13 ft hand chain drop, and 2 chain falls. The Silver Series uses high-strength, all-stamped steel construction for decreased weight and improved impact resistance, along with roller bearings on the input shafts for increased efficiency and easier lifting. The SMB050 is the 5 metric ton Silver Series model and uses a two-chain-fall lifting arrangement.
The SMB050 uses a 9 x 27 mm load chain and requires 83 lb of pull to lift the rated load. The manufacturer specifies 187 ft of chain overhaul to lift the load 1 ft and a 2.4 lb/ft load-chain weight. The hoist also features a self-adjusting mechanical load brake, hardened swivel-latch hooks, double hand-chain guides, and an overload clutch that slips in the lifting direction only. The 15 ft lift and 13 ft hand-chain drop identify the specific configuration represented by SKU SMB050-15-13V.
Type: Manual Chain Hoist | Series: Silver Series | Model: SMB050-15-13V | Capacity: 5 Metric Tons (11,000 lb) | Standard Lift: 15 ft | Hand Chain Drop: 13 ft | Chain Falls: 2 | Load Chain Size: 9 x 27 mm | Pull to Lift Rated Load: 83 lb | Chain Overhaul: 187 ft per 1 ft of Load Lift | Load Chain Weight: 2.4 lb/ft | Overload Protection: Slip Clutch | Minimum Headroom: 28 in
Features:
- High-strength, all-stamped steel construction provides decreased weight and better impact resistance.
- Two chain falls provide the specified lifting arrangement for the 5 metric ton SMB050 capacity.
- Encased and retained roller bearings on the input shafts support increased efficiency and ease of maintenance.
- Self-adjusting disc-type double-pawl mechanical load brake provides controlled load holding.
- Overload protection is provided by a clutch that slips in the lifting direction only.
- Nickel/chrome-plated exterior and zinc-plated frame components provide increased corrosion resistance.
- Double hand-chain guides help provide smooth operation when pulling excess hand chain.
- Open-frame construction allows easier cleaning and inspection.
- Hardened swivel-latch hooks provide the specified hook configuration for the Silver Series.
- CE-certified hoists meet or exceed regional requirements including ASME B30.16 and HST-2M.
Applications:
- Construction and jobsite lifting — raising and positioning equipment and materials within the 5 metric ton rated capacity.
- Industrial maintenance — lifting machinery components and equipment during repair and service operations.
- Rigging — controlled manual lifting using the two-chain-fall configuration.
- Material handling — positioning loads in industrial facilities and workshops where a 15 ft lift is required.
FAQs:
- Q: What is the capacity of the SMB050-15-13V?
A: The hoist is rated for 5 metric tons, equivalent to 11,000 lb, when operated according to manufacturer specifications and proper lifting procedures. - Q: What does the 15 ft standard lift mean?
A: The 15 ft lift identifies the vertical load-travel configuration for this specific hoist. - Q: What does the 13 ft hand chain drop mean?
A: The 13 ft hand-chain drop identifies the operating hand-chain configuration specified for this SKU. - Q: How many chain falls does the SMB050-15-13V use?
A: It uses 2 chain falls. The SMB050 is the 5 metric ton Silver Series model with a two-chain-fall configuration. - Q: What type of overload protection does this model have?
A: The Silver Series uses an overload clutch that slips in the lifting direction only. - Q: What size load chain does the SMB050 use?
A: The SMB050 uses a 9 x 27 mm load chain. - Q: How much pull is required to lift the rated load?
A: The specified pull to lift the rated 5 metric ton load is 83 lb. - Q: What is the minimum headroom for the SMB050?
A: The specified minimum headroom for the SMB050 is 28 in.
| SKU | CAPACITY | # FALLS | PULL TO LIFT RATED LOAD |
CHAIN O'HAULED TO LIFT LOAD 1 FT |
CHAIN SIZE MM |
CHAIN WEIGHT PER FOOT |
SHIPPING WEIGHT WITH 10' OF LIFT |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LB | METRIC TONS | LB | KG | FT | M | LB | KG | LB | KG | |||
| SMB005 | 1,100 | 0.50 | 1 | 55 | 25 | 25 | 7.6 | 5 x 15 | 0.6 | 0.3 | 23.5 | 10.68 |
| SMB010 | 2,200 | 1 | 1 | 64 | 29.1 | 39 | 11.9 | 6 x 18 | 0.6 | 0.3 | 26.8 | 12.18 |
| SMB015 | 3,300 | 1.50 | 1 | 69 | 31.4 | 58 | 17.7 | 7 x 21 | 1 | 0.5 | 38.5 | 17.5 |
| SMB020 | 4,400 | 2 | 1 | 77 | 35 | 75 | 22.9 | 8 x 24.6 | 1.1 | 0.5 | 42.4 | 19.27 |
| SMB030 | 6,600 | 3 | 1 | 100 | 45.5 | 116 | 35.4 | 10 x 30 | 2.1 | 1 | 70.4 | 32 |
| SMB050 | 11,000 | 5 | 2 | 83 | 37.7 | 187 | 57 | 9 x 27 | 2.4 | 1.1 | 90.2 | 41 |
Looking for more information about the Ingersoll Rand Hoist? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Hoists for your assembly application, please email info@intlairtool.com or call (800) 608-5210
