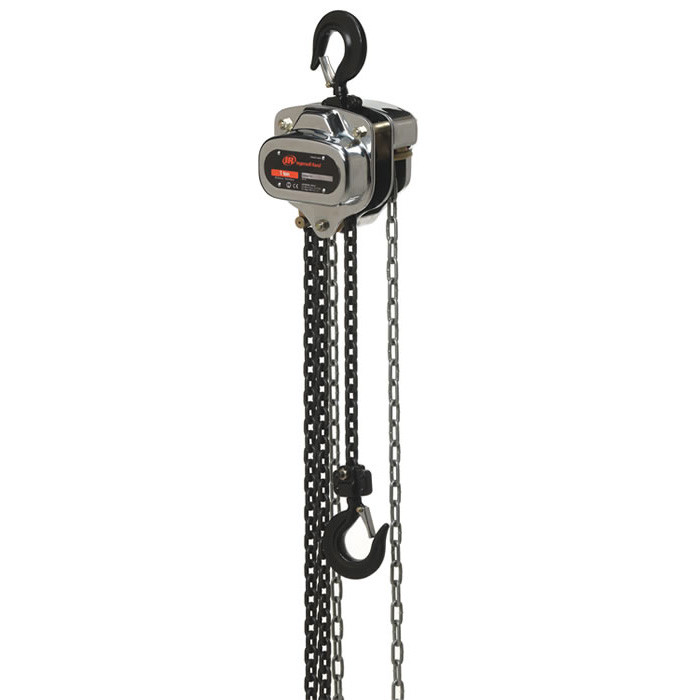

Ingersoll Rand SMB030-40-38V Silver Series Manual Chain Hoist | 40' Standard Lift | 3 (metric tons) Capacity | 1 Chain Falls

Ingersoll Rand SMB030-40-38V Silver Series Manual Chain Hoist is designed for controlled manual lifting of loads up to 3 metric tons (6,600 lb). This configuration provides a 40 ft standard lift, 38 ft hand chain drop, and 1 chain fall. The Silver Series features high-strength, all-stamped steel construction for reduced weight and improved impact resistance, roller bearings on the input shaft for easier lifting, and an open-frame design that allows easier cleaning and inspection. The extended 40 ft lift makes this configuration suitable where substantial vertical load travel is required.

The SMB030 uses a 10 x 30 mm load chain and requires 100 lb of pull to lift the rated load. The manufacturer specifies 116 ft of hand-chain overhaul per 1 ft of load lift for the SMB030. The Silver Series also incorporates a self-adjusting disc-type double-pawl mechanical load brake and overload protection in which the clutch slips in the lifting direction only. The 40 ft lift and 38 ft hand-chain drop identify the specific configuration represented by SKU SMB030-40-38V.

Type: Manual Chain Hoist | Series: Silver Series | Model: SMB030-40-38V | Capacity: 3 Metric Tons (6,600 lb) | Standard Lift: 40 ft | Hand Chain Drop: 38 ft | Chain Falls: 1 | Load Chain Size: 10 x 30 mm | Pull to Lift Rated Load: 100 lb | Hand Chain Overhaul: 116 ft per 1 ft of Load Lift | Load Chain Weight: 2.1 lb/ft | Overload Protection: Slip Clutch | Minimum Headroom: 20.9 in

Features:

• High-strength, all-stamped steel construction provides decreased weight and better impact resistance.
• Single chain fall provides the specified lifting arrangement for the 3 metric ton SMB030 capacity.
• Encased and retained roller bearings on the input shaft support increased efficiency and ease of maintenance.
• Self-adjusting disc-type double-pawl mechanical load brake provides controlled load holding.
• Overload protection uses a clutch that slips in the lifting direction only.
• Nickel/chrome-plated exterior and zinc-plated frame components provide increased corrosion resistance.
• Double hand-chain guides help provide smooth operation when pulling excess hand chain.
• Open-frame construction allows easier cleaning and inspection.
• Hardened swivel-latch hooks provide the specified hook configuration for the Silver Series.
• CE-certified hoists meet or exceed regional requirements including ASME B30.16 and HST-2M.

Applications:

• Construction and jobsite lifting — raising and positioning equipment and materials within the 3 metric ton rated capacity.
• Industrial maintenance — lifting machinery components and equipment during repair and service operations.
• Rigging — controlled manual lifting using the single-chain-fall configuration.
• Material handling — positioning loads in facilities and industrial environments where extended vertical travel is required.
• Long-lift applications — providing a 40 ft standard lift where the required lifting distance exceeds the shorter standard configurations.

FAQs:

• Q: What is the capacity of the SMB030-40-38V?
  A: The hoist is rated for 3 metric tons, equivalent to 6,600 lb, when operated according to manufacturer specifications and proper lifting procedures.
• Q: What does the 40 ft standard lift mean?
  A: The 40 ft lift identifies the vertical load-travel configuration for this specific hoist.
• Q: What does the 38 ft hand chain drop mean?
  A: The 38 ft hand-chain drop identifies the operating hand-chain configuration supplied with this SKU.
• Q: How many chain falls does the SMB030-40-38V use?
  A: It uses 1 chain fall.
• Q: What type of overload protection does this model have?
  A: The Silver Series uses an overload clutch that slips in the lifting direction only.
• Q: What size load chain does the SMB030 use?
  A: The SMB030 uses a 10 x 30 mm load chain.
• Q: How much pull is required to lift the rated load?
  A: The specified pull to lift the rated 3 metric ton load is 100 lb.
• Q: What is the minimum headroom for the SMB030?
  A: The manufacturer specifies 20.9 in minimum headroom for the SMB030.
