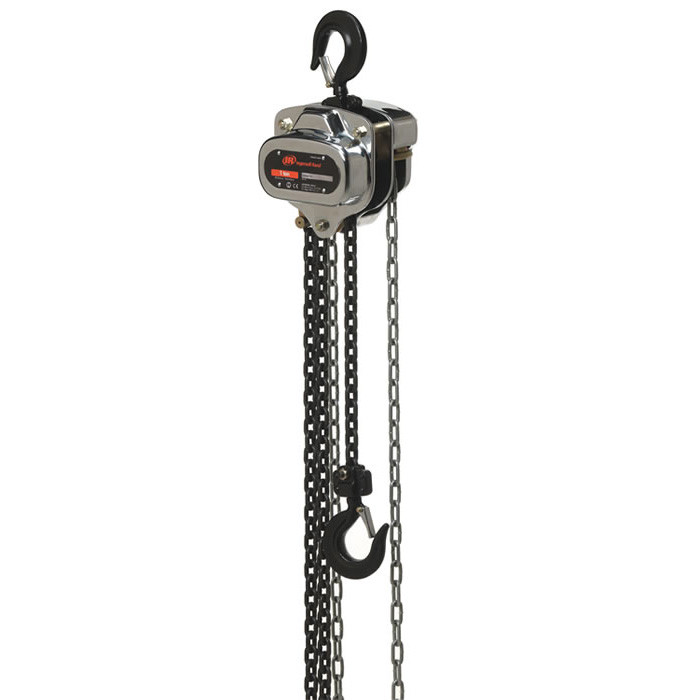

Ingersoll Rand SMB030-15-13V Silver Series Manual Chain Hoist is designed for controlled manual lifting of loads up to 3 metric tons (6,600 lb). This configuration provides a 15 ft standard lift, 13 ft hand chain drop, and 1 chain fall. The Silver Series uses high-strength, all-stamped steel construction, hardened roller bearings, and a self-adjusting disc-type double-pawl mechanical load brake for controlled load holding. It is suited to manual lifting applications in construction, maintenance, rigging, and material handling.
The SMB030 uses a 10 x 30 mm load chain and requires 100 lb of pull to lift the rated load. The manufacturer specifies 116 ft of hand-chain overhaul per 1 ft of load lift. The V configuration provides overload protection through a clutch that slips in the lifting direction only. The 15 ft lift and 13 ft hand-chain drop identify the specific configuration represented by SKU SMB030-15-13V.
Type: Manual Chain Hoist | Series: Silver Series | Model: SMB030-15-13V | Capacity: 3 Metric Tons (6,600 lb) | Standard Lift: 15 ft | Hand Chain Drop: 13 ft | Chain Falls: 1 | Load Chain Size: 10 x 30 mm | Pull to Lift Rated Load: 100 lb | Hand Chain Overhaul: 116 ft per 1 ft of Load Lift | Load Chain Weight: 2.1 lb/ft | Overload Protection: Slip Clutch | Minimum Headroom: 20.9 in
Features:
- High-strength, all-stamped steel construction provides the specified Silver Series construction for manual lifting applications.
- Single chain fall provides the specified lifting arrangement for the 3 metric ton SMB030 capacity.
- Hardened roller bearings support efficient operation and durability.
- Self-adjusting disc-type double-pawl mechanical load brake provides controlled load holding.
- Overload protection is provided by a clutch that slips in the lifting direction only.
- Nickel, copper, nickel, and chrome finishing provides the specified four-layer exterior finish.
- Zinc-plated frame components provide the specified protective finish for the hoist structure.
- Double hand-chain guides help provide smooth operation when pulling excess hand chain.
- Open-frame construction allows easier cleaning and inspection.
- Hardened swivel-latch hooks provide the specified hook configuration for the Silver Series.
- The Silver Series meets or exceeds applicable requirements including ASME B30.16 and HST-2M, with CE certification specified by the manufacturer.
Applications:
- Construction and rental applications — raising and positioning equipment and materials within the 3 metric ton rated capacity.
- Industrial maintenance — lifting machinery components and equipment during repair and service operations.
- Rigging — controlled manual lifting using the single-chain-fall configuration.
- Material handling — positioning loads in workshops, facilities, and industrial environments where a 15 ft lift is required.
FAQs:
- Q: What is the capacity of the SMB030-15-13V?
A: The hoist is rated for 3 metric tons, equivalent to 6,600 lb, when operated according to manufacturer specifications and proper lifting procedures. - Q: What does the 15 ft standard lift mean?
A: The 15 ft lift identifies the vertical load-travel configuration for this model. - Q: What does the 13 ft hand chain drop mean?
A: The 13 ft hand-chain drop identifies the operating hand-chain configuration supplied with this SKU. - Q: How many chain falls does the SMB030-15-13V use?
A: It uses 1 chain fall. - Q: What type of overload protection does this model have?
A: The V configuration uses a slip clutch for overload protection. The manufacturer specifies that the clutch slips in the lifting direction only. - Q: What size load chain does the SMB030 use?
A: The SMB030 uses a 10 x 30 mm load chain. - Q: How much pull is required to lift the rated load?
A: The specified pull to lift the rated 3 metric ton load is 100 lb. - Q: What is the minimum headroom for the SMB030?
A: The specified minimum headroom is 20.9 in.
| SKU | CAPACITY | # FALLS | PULL TO LIFT RATED LOAD |
CHAIN O'HAULED TO LIFT LOAD 1 FT |
CHAIN SIZE MM |
CHAIN WEIGHT PER FOOT |
SHIPPING WEIGHT WITH 10' OF LIFT |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LB | METRIC TONS | LB | KG | FT | M | LB | KG | LB | KG | |||
| SMB005 | 1,100 | 0.50 | 1 | 55 | 25 | 25 | 7.6 | 5 x 15 | 0.6 | 0.3 | 23.5 | 10.68 |
| SMB010 | 2,200 | 1 | 1 | 64 | 29.1 | 39 | 11.9 | 6 x 18 | 0.6 | 0.3 | 26.8 | 12.18 |
| SMB015 | 3,300 | 1.50 | 1 | 69 | 31.4 | 58 | 17.7 | 7 x 21 | 1 | 0.5 | 38.5 | 17.5 |
| SMB020 | 4,400 | 2 | 1 | 77 | 35 | 75 | 22.9 | 8 x 24.6 | 1.1 | 0.5 | 42.4 | 19.27 |
| SMB030 | 6,600 | 3 | 1 | 100 | 45.5 | 116 | 35.4 | 10 x 30 | 2.1 | 1 | 70.4 | 32 |
| SMB050 | 11,000 | 5 | 2 | 83 | 37.7 | 187 | 57 | 9 x 27 | 2.4 | 1.1 | 90.2 | 41 |
