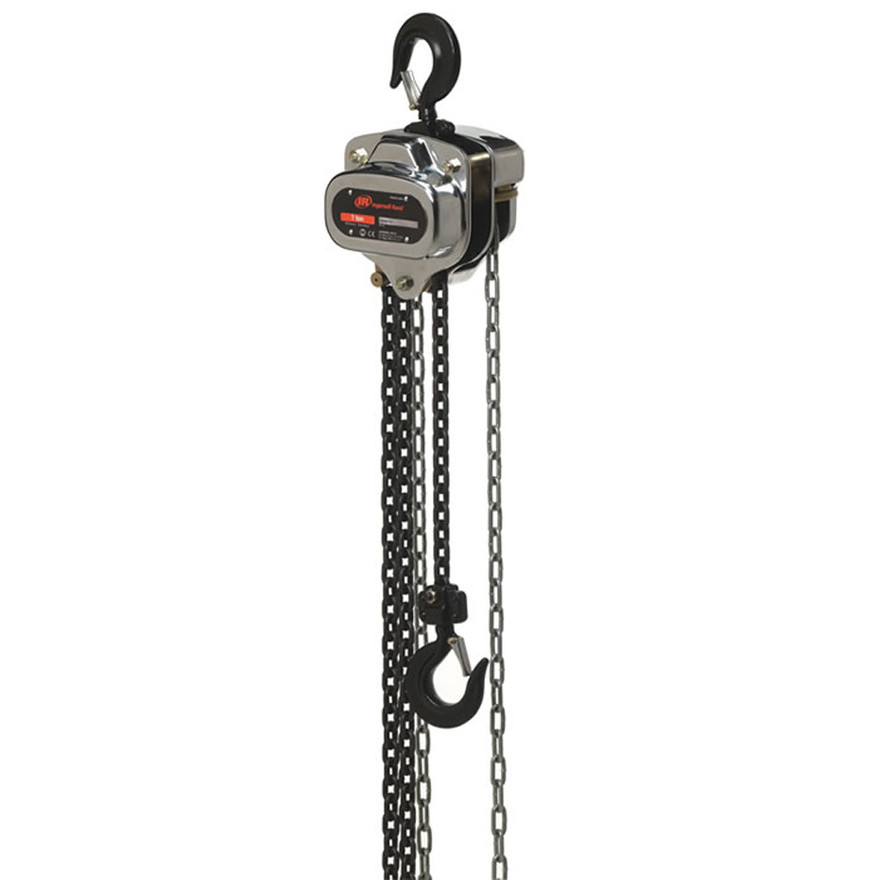

Ingersoll Rand SMB020-25-23V Silver Series Manual Chain Hoist is designed for controlled manual lifting of loads up to 2 metric tons (4,400 lb). This configuration provides a 25 ft lift, 23 ft hand chain drop, and 1 chain fall. The Silver Series uses high-strength, all-stamped steel construction, roller bearings on the input shaft, efficient gear reduction, and a self-adjusting mechanical load brake for controlled manual lifting.
The SMB020 uses an 8 x 24.6 mm load chain and requires 77 lb of pull to lift the rated load. The manufacturer specification is 75 ft of hand-chain overhaul per 1 ft of load lift. The V configuration incorporates overload protection through a clutch that slips in the lifting direction only. This 25 ft lift and 23 ft hand-chain-drop configuration is specifically identified as SMB020-25-23V.
Type: Manual Chain Hoist | Series: Silver Series | Model: SMB020-25-23V | Capacity: 2 Metric Tons (4,400 lb) | Standard Lift: 25 ft | Hand Chain Drop: 23 ft | Chain Falls: 1 | Load Chain Size: 8 x 24.6 mm | Pull to Lift Rated Load: 77 lb | Hand Chain Overhaul: 75 ft per 1 ft of Load Lift | Minimum Headroom: 18.2 in
Features:
- High-strength, all-stamped steel construction provides decreased weight and improved impact resistance.
- Single chain fall provides the specified lifting configuration for the 2 metric ton SMB020 capacity.
- Encased and retained roller bearings on the input shaft support efficient operation and ease of maintenance.
- Efficient gear reduction helps provide easier manual lifting operation.
- Self-adjusting disc-type double-pawl mechanical load brake provides controlled load holding.
- Overload protection is provided by a clutch that slips in the lifting direction only.
- Nickel/chrome-plated exterior and zinc-plated frame components provide increased corrosion resistance.
- Double hand-chain guides help provide smooth operation when pulling excess hand chain.
- Open-frame construction allows easier cleaning and inspection.
- Hardened swivel-latch hooks provide the specified hook configuration for the Silver Series.
- CE certification and compliance with regional requirements including ASME B30.16 and HST-2M are specified for the Silver Series.
Applications:
- Construction and rental — raising and positioning equipment and materials within the 2 metric ton rated capacity.
- Industrial maintenance — lifting machinery components and equipment during repair and service operations.
- Rigging — controlled manual lifting using the single-chain-fall configuration.
- Material handling — positioning loads in workshops, facilities, and industrial environments where extended vertical travel is required.
FAQs:
- Q: What is the capacity of the SMB020-25-23V?
A: The hoist is rated for 2 metric tons, equivalent to 4,400 lb, when operated according to manufacturer specifications and proper lifting procedures. - Q: What does the 25 ft lift specification mean?
A: The 25 ft lift identifies the vertical load-travel configuration for this specific model. - Q: What does the 23 ft hand chain drop mean?
A: The 23 ft hand-chain drop identifies the operating hand-chain configuration supplied with this SKU. - Q: How many chain falls does the SMB020-25-23V use?
A: It uses 1 chain fall. - Q: What type of overload protection does this model have?
A: The V configuration uses a slip clutch for overload protection. The clutch slips in the lifting direction only. - Q: What size load chain does the SMB020 use?
A: The SMB020 uses an 8 x 24.6 mm load chain. - Q: How much pull is required to lift the rated load?
A: The specified pull to lift the rated 2 metric ton load is 77 lb. - Q: What is the minimum headroom for the SMB020?
A: The specified hook-mount minimum headroom is 18.2 in.
| SKU | CAPACITY | # FALLS | PULL TO LIFT RATED LOAD |
CHAIN O'HAULED TO LIFT LOAD 1 FT |
CHAIN SIZE MM |
CHAIN WEIGHT PER FOOT |
SHIPPING WEIGHT WITH 10' OF LIFT |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LB | METRIC TONS | LB | KG | FT | M | LB | KG | LB | KG | |||
| SMB005 | 1,100 | 0.50 | 1 | 55 | 25 | 25 | 7.6 | 5 x 15 | 0.6 | 0.3 | 23.5 | 10.68 |
| SMB010 | 2,200 | 1 | 1 | 64 | 29.1 | 39 | 11.9 | 6 x 18 | 0.6 | 0.3 | 26.8 | 12.18 |
| SMB015 | 3,300 | 1.50 | 1 | 69 | 31.4 | 58 | 17.7 | 7 x 21 | 1 | 0.5 | 38.5 | 17.5 |
| SMB020 | 4,400 | 2 | 1 | 77 | 35 | 75 | 22.9 | 8 x 24.6 | 1.1 | 0.5 | 42.4 | 19.27 |
| SMB030 | 6,600 | 3 | 1 | 100 | 45.5 | 116 | 35.4 | 10 x 30 | 2.1 | 1 | 70.4 | 32 |
| SMB050 | 11,000 | 5 | 2 | 83 | 37.7 | 187 | 57 | 9 x 27 | 2.4 | 1.1 | 90.2 | 41 |
