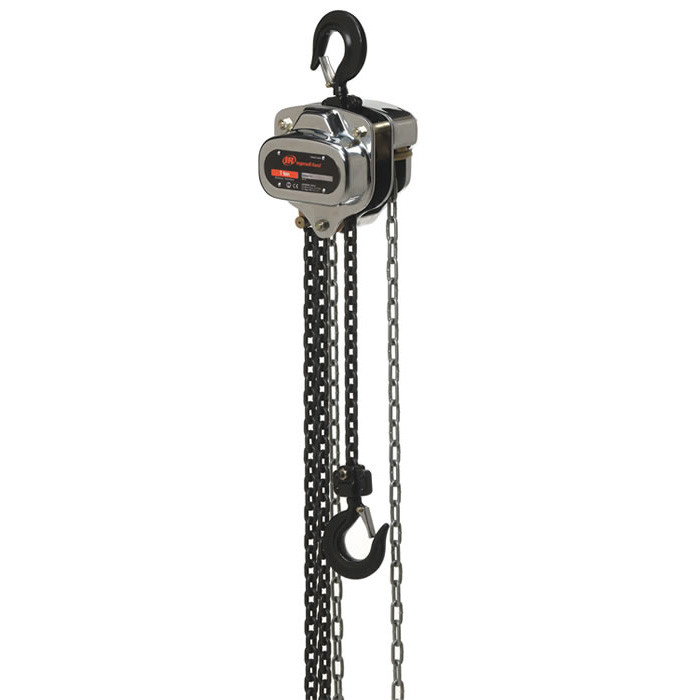

Ingersoll Rand SMB020-20-8V Silver Series Manual Chain Hoist is a 2 metric ton (4,400 lb) capacity manual chain hoist configured with a 20 ft standard lift, 8 ft hand chain drop, and 1 chain fall. The Silver Series uses high-strength, all-stamped steel construction for reduced weight and impact resistance, along with roller bearings on the input shaft to support easier lifting. It is designed for lifting, positioning, maintenance, construction, rigging, and general material-handling applications.
The SMB020 uses an 8 x 24.6 mm load chain, with a specified 77 lb pull to lift the rated load and 75 ft of hand-chain overhaul per 1 ft of load lift. The V configuration indicates the overload-clutch option; Ingersoll Rand states that overload protection is standard on all Silver Series models and that the clutch slips only in the lifting direction. The 20 ft lift and 8 ft hand-chain drop are the specific configuration identified by SKU SMB020-20-8V.
Type: Manual Chain Hoist | Series: Silver Series | Model: SMB020-20-8V | Capacity: 2 Metric Tons (4,400 lb) | Standard Lift: 20 ft | Hand Chain Drop: 8 ft | Chain Falls: 1 | Load Chain Size: 8 x 24.6 mm | Pull to Lift Rated Load: 77 lb | Hand Chain Overhaul: 75 ft per 1 ft of Load Lift | Load Chain Weight: 1.1 lb/ft | Overload Protection: Slip Clutch | Minimum Headroom: 18.2 in
Features:
- High-strength, all-stamped steel construction provides decreased weight and improved impact resistance.
- Single chain fall provides the specified lifting arrangement for the 2 metric ton SMB020 capacity.
- Encased and retained roller bearings on the input shaft support efficient lifting and ease of maintenance.
- Self-adjusting disc-type double-pawl mechanical load brake provides controlled load holding.
- Overload protection uses a clutch that slips in the lifting direction only.
- Nickel/chrome-plated exterior and zinc-plated frame components provide increased corrosion resistance.
- Double hand-chain guides help provide smooth operation when pulling excess hand chain.
- Open-frame construction allows easier cleaning and inspection.
- Hardened swivel-latch hooks provide the specified hook configuration for the Silver Series.
- CE-certified Silver Series hoists meet or exceed regional requirements including ASME B30.16 and HST-2M.
Applications:
- Construction and jobsite lifting — raising and positioning equipment and materials within the 2 metric ton rated capacity.
- Industrial maintenance — lifting machinery components and equipment during repair and service operations.
- Rigging — controlled manual lifting using the single-chain-fall configuration.
- Material handling — positioning loads in workshops, facilities, and industrial environments requiring extended vertical travel.
FAQs:
- Q: What is the capacity of the SMB020-20-8V?
A: The hoist is rated for 2 metric tons, equivalent to 4,400 lb, when operated according to manufacturer specifications and proper lifting procedures. - Q: What does the 20 ft standard lift mean?
A: The 20 ft lift identifies the vertical load-travel configuration for this model. - Q: What does the 8 ft hand chain drop mean?
A: The 8 ft hand-chain drop identifies the operating hand-chain configuration supplied with this specific SKU. - Q: How many chain falls does the SMB020-20-8V use?
A: It uses 1 chain fall. - Q: What type of overload protection does the V configuration use?
A: The V configuration uses an overload clutch. Ingersoll Rand specifies that the clutch slips in the lifting direction only. - Q: What size load chain does the SMB020 use?
A: The SMB020 uses an 8 x 24.6 mm load chain. - Q: How much pull is required to lift the rated load?
A: The specified pull to lift the rated 2 metric ton load is 77 lb. - Q: What is the minimum headroom for the SMB020?
A: The manufacturer specifies 18.2 in minimum headroom for the SMB020.
| SKU | CAPACITY | # FALLS | PULL TO LIFT RATED LOAD |
CHAIN O'HAULED TO LIFT LOAD 1 FT |
CHAIN SIZE MM |
CHAIN WEIGHT PER FOOT |
SHIPPING WEIGHT WITH 10' OF LIFT |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LB | METRIC TONS | LB | KG | FT | M | LB | KG | LB | KG | |||
| SMB005 | 1,100 | 0.50 | 1 | 55 | 25 | 25 | 7.6 | 5 x 15 | 0.6 | 0.3 | 23.5 | 10.68 |
| SMB010 | 2,200 | 1 | 1 | 64 | 29.1 | 39 | 11.9 | 6 x 18 | 0.6 | 0.3 | 26.8 | 12.18 |
| SMB015 | 3,300 | 1.50 | 1 | 69 | 31.4 | 58 | 17.7 | 7 x 21 | 1 | 0.5 | 38.5 | 17.5 |
| SMB020 | 4,400 | 2 | 1 | 77 | 35 | 75 | 22.9 | 8 x 24.6 | 1.1 | 0.5 | 42.4 | 19.27 |
| SMB030 | 6,600 | 3 | 1 | 100 | 45.5 | 116 | 35.4 | 10 x 30 | 2.1 | 1 | 70.4 | 32 |
| SMB050 | 11,000 | 5 | 2 | 83 | 37.7 | 187 | 57 | 9 x 27 | 2.4 | 1.1 | 90.2 | 41 |
