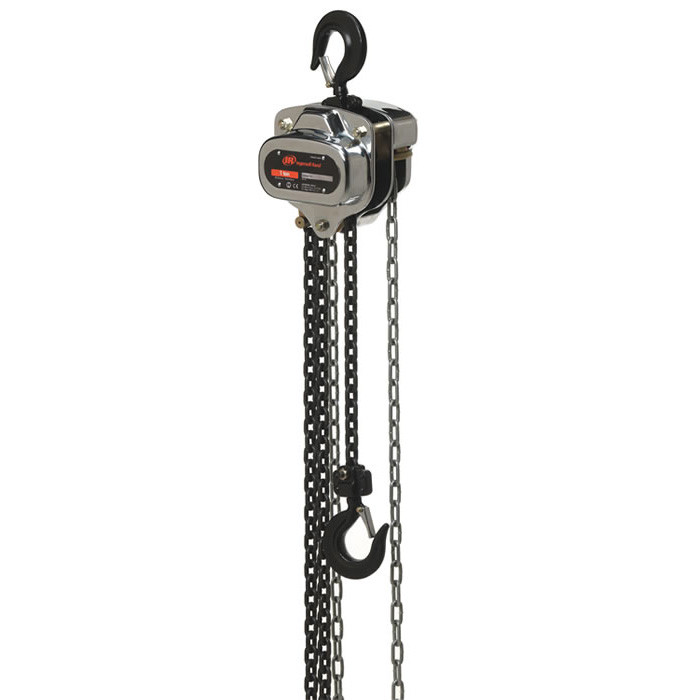

Ingersoll Rand SMB020-15-13V Silver Series Manual Chain Hoist | 15' Standard Lift | 2 (metric tons) Capacity | 1 Chain Falls

Ingersoll Rand SMB020-15-13V Silver Series Manual Chain Hoist is designed for controlled manual lifting of loads up to 2 metric tons (4,400 lb). This configuration provides a 15-ft standard lift, a 13-ft hand-chain drop, and 1 chain fall. The Silver Series uses high-strength stamped-steel construction, roller bearings on the input shaft, a self-adjusting mechanical load brake, and standard overload protection for construction, maintenance, rigging, and material-handling applications.

The SMB020 uses an 8 x 24.6 mm load chain and requires 77 lb of pull to lift the rated load. The manufacturer specifies 75 ft of hand-chain overhaul per 1 ft of load lift for the SMB020. The Silver Series overload clutch is standard equipment and slips in the lifting direction only. The 15 ft lift and 13 ft hand-chain drop identify the specific configuration represented by SKU SMB020-15-13V.

Type: Manual Chain Hoist | Series: Silver Series | Model: SMB020-15-13V | Capacity: 2 Metric Tons (4,400 lb) | Standard Lift: 15 ft | Hand Chain Drop: 13 ft | Chain Falls: 1 | Load Chain Size: 8 x 24.6 mm | Pull to Lift Rated Load: 77 lb | Hand Chain Overhaul: 75 ft per 1 ft of Load Lift | Overload Protection: Slip Clutch | Minimum Headroom: 18.2 in

Features:

• High-strength, all-stamped steel construction provides reduced weight and improved impact resistance.
• Single chain fall provides the specified lifting configuration for the 2 metric ton SMB020 capacity.
• Encased and retained roller bearings on the input shaft support efficient operation and ease of maintenance.
• Self-adjusting disc-type double-pawl mechanical load brake provides controlled load holding.
• Overload protection is provided by a clutch that slips in the lifting direction only.
• Nickel/chrome-plated exterior and zinc-plated frame components provide increased corrosion resistance.
• Double hand-chain guides provide smooth operation when pulling excess hand chain.
• Open-frame construction allows easier cleaning and inspection.
• Hardened swivel-latch hooks provide the specified hook configuration for the Silver Series.
• CE certification and compliance with regional requirements including ASME B30.16 and HST-2M are specified for the Silver Series.

Applications:

• Construction and jobsite lifting — raising and positioning equipment and materials within the 2 metric ton rated capacity.
• Industrial maintenance — lifting machinery components and equipment during repair and service operations.
• Rigging applications — controlled manual lifting using a single-chain-fall configuration.
• Material handling — positioning loads in workshops, maintenance areas, and industrial facilities where a 15 ft lift is required.

FAQs:

• Q: What is the capacity of the SMB020-15-13V?
  A: The hoist is rated for 2 metric tons, equivalent to 4,400 lb, when operated according to manufacturer specifications and proper lifting procedures.
• Q: What does the 15 ft standard lift mean?
  A: The 15 ft lift identifies the vertical load-travel configuration for this model.
• Q: What does the 13 ft hand chain drop mean?
  A: The 13 ft hand-chain drop identifies the operating hand-chain configuration supplied with this SKU.
• Q: How many chain falls does the SMB020-15-13V use?
  A: It uses 1 chain fall.
• Q: What type of overload protection does this model have?
  A: The V configuration uses a slip clutch. The manufacturer specifies that the overload clutch slips in the lifting direction only.
• Q: What size load chain does the SMB020 use?
  A: The SMB020 uses an 8 x 24.6 mm load chain.
• Q: How much pull is required to lift the rated load?
  A: The specified pull to lift the rated 2 metric ton load is 77 lb.
