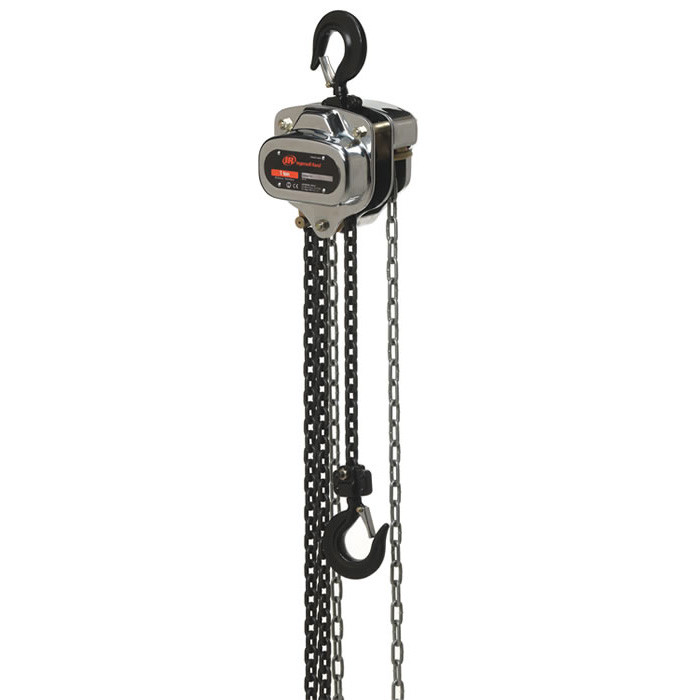

Ingersoll Rand SMB015-FV Silver Series Manual Chain Hoist is a 1.50 metric ton (3,300 lb) capacity hoist supplied without load chain. The F configuration identifies the hoist without load chain, while the V configuration identifies the overload-clutch option. Because this SKU does not include a load chain, no specific lift height or hand-chain drop should be assigned to the product. The SMB015 uses a single chain fall and is designed for controlled manual lifting applications.
The SMB015 Silver Series uses a 7 x 21 mm load chain when configured with load chain and has a specified 69 lb pull to lift the rated load. The hoist incorporates high-strength stamped-steel construction, encased and retained roller bearings, a self-adjusting disc-type double-pawl mechanical load brake, double hand-chain guides, and an open-frame design for cleaning and inspection. Ingersoll Rand also specifies nickel/chrome-plated exterior and zinc-plated frame components, hardened swivel-latch hooks, and overload protection through a clutch that slips in the lifting direction only.
Type: Manual Chain Hoist | Series: Silver Series | Model: SMB015-FV | Capacity: 1.50 Metric Tons (3,300 lb) | Configuration: Hoist Without Load Chain | Chain Falls: 1 | Load Chain Size: 7 x 21 mm | Pull to Lift Rated Load: 69 lb | Hand Chain Overhaul: 58 ft per 1 ft of Load Lift | Overload Protection: Slip Clutch | Minimum Headroom: 17.1 in
Features:
- Hoist-only configuration is supplied without load chain, allowing the required load-chain length to be specified separately.
- High-strength, all-stamped steel construction provides impact resistance while reducing hoist weight.
- Single chain fall provides the specified lifting configuration for the SMB015 1.50 metric ton capacity.
- Encased and retained roller bearings on the input shaft support efficient operation and ease of maintenance.
- Self-adjusting disc-type double-pawl mechanical load brake provides controlled load holding.
- Overload protection uses a clutch that slips in the lifting direction only.
- Nickel/chrome-plated exterior and zinc-plated frame components provide increased corrosion resistance.
- Double hand-chain guides provide smooth operation when pulling excess hand chain.
- Open-frame design allows easier cleaning and inspection.
- Hardened swivel-latch hooks provide the specified hook configuration for the Silver Series.
- CE certification and compliance with regional requirements including ASME B30.16 and HST-2M are specified for the Silver Series.
Applications:
- Industrial maintenance — lifting and positioning machinery components and equipment when the required load-chain length is selected separately.
- Construction and rigging — configuring a manual hoist for applications requiring a particular load-chain length.
- Material handling — controlled manual lifting of loads within the 1.50 metric ton rated capacity.
- Rental and construction applications — the Silver Series is designed for lifting situations requiring a compact, manually operated chain hoist.
FAQs:
- Q: What does “hoist without load chain” mean?
A: The SMB015-FV is supplied without load chain. The appropriate load-chain length must be specified separately for the intended lifting application. - Q: What is the capacity of the SMB015-FV?
A: The SMB015-FV has a rated capacity of 1.50 metric tons, equivalent to 3,300 lb. - Q: How many chain falls does the SMB015-FV use?
A: The SMB015 uses 1 chain fall. - Q: What does the V configuration indicate?
A: The V configuration identifies the overload-clutch option. In the Silver Series, the clutch slips in the lifting direction only. - Q: What load chain size is specified for the SMB015?
A: The SMB015 is specified for 7 x 21 mm load chain when load chain is installed. - Q: What is the pull to lift the rated load?
A: The specified pull to lift the rated 1.50 metric ton load is 69 lb. - Q: Does the SMB015-FV have a specified lift height?
A: No. Because the SKU is supplied without load chain and does not contain a lift-length designation, a specific lift height should not be assigned to this product.
| SKU | CAPACITY | # FALLS | PULL TO LIFT RATED LOAD |
CHAIN O'HAULED TO LIFT LOAD 1 FT |
CHAIN SIZE MM |
CHAIN WEIGHT PER FOOT |
SHIPPING WEIGHT WITH 10' OF LIFT |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LB | METRIC TONS | LB | KG | FT | M | LB | KG | LB | KG | |||
| SMB005 | 1,100 | 0.50 | 1 | 55 | 25 | 25 | 7.6 | 5 x 15 | 0.6 | 0.3 | 23.5 | 10.68 |
| SMB010 | 2,200 | 1 | 1 | 64 | 29.1 | 39 | 11.9 | 6 x 18 | 0.6 | 0.3 | 26.8 | 12.18 |
| SMB015 | 3,300 | 1.50 | 1 | 69 | 31.4 | 58 | 17.7 | 7 x 21 | 1 | 0.5 | 38.5 | 17.5 |
| SMB020 | 4,400 | 2 | 1 | 77 | 35 | 75 | 22.9 | 8 x 24.6 | 1.1 | 0.5 | 42.4 | 19.27 |
| SMB030 | 6,600 | 3 | 1 | 100 | 45.5 | 116 | 35.4 | 10 x 30 | 2.1 | 1 | 70.4 | 32 |
| SMB050 | 11,000 | 5 | 2 | 83 | 37.7 | 187 | 57 | 9 x 27 | 2.4 | 1.1 | 90.2 | 41 |
Looking for more information about the Ingersoll Rand Hoist? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Hoists for your assembly application, please email info@intlairtool.com or call (800) 608-5210
- Type
- Manual Chain Hoist
- Chain Overhauled to Lift Load 1 (ft.)
- 58
- Pull To Lift Rated Load (lbs.)
- 69
- Capacity (lbs)
- 3300
- Capacity (tons)
- 1-1/2
This product hasn't received any reviews yet. Be the first to review this product!
