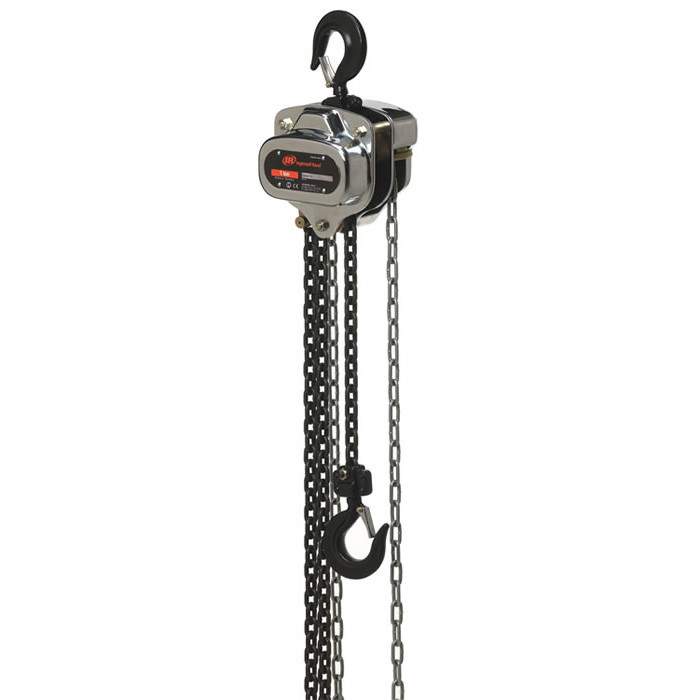

Ingersoll Rand SMB015-20-8V Silver Series Manual Chain Hoist is a robust manual lifting solution designed for industrial and material handling applications. It offers a 1-1/2 metric ton lifting capacity, making it suitable for medium-duty lifting tasks. This model features a 20 ft standard lift, providing extended vertical reach for workshops, warehouses, and maintenance operations. Equipped with 1 chain fall, it ensures smooth, stable, and controlled lifting performance. Part of the Silver Series, it is recognized for rugged construction and long-lasting reliability. Its heavy-duty steel housing protects internal components from wear in demanding environments. Manual hand chain operation enables precise control of loads without the need for electricity or pneumatic power. Forged steel hooks with safety latches improve load security during lifting. Designed to meet industrial safety standards, this chain hoist delivers dependable performance, durability, and ease of use for everyday lifting needs.
Type: Manual Chain Hoist | Capacity (metric tons): 1-1/2 | Capacity (lbs): 3,300 | Standard Lift (ft.): 20 | Pull to Lift Rated Load (lbs): 69 | Number of Chain Falls: 1 | Chain Overhauled to Lift Load 1 (ft.): 71.6 | Load Chain Size (mm): 7.1 x 21 | Min Head Room (in.): 17.1 | Hand Chain Drop V (ft.): 8
|
Features:
|
 |
Looking for more information about the Ingersoll Rand Hoist? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Hoists for your assembly application, please email info@intlairtool.com or call (800) 608-5210
- Type
- Manual Chain Hoist
- Chain Falls
- 1
- Chain Overhauled to Lift Load 1 (ft.)
- 71.6
- Pull To Lift Rated Load (lbs.)
- 69
- Min Headroom (in.)
- 17.1
- Capacity (lbs)
- 3300
- Lift (ft.)
- 20
- Capacity (tons)
- 1-1/2
- Load Chain Size (mm)
- 7.1 x 21
- Drop (ft.)
- 8
