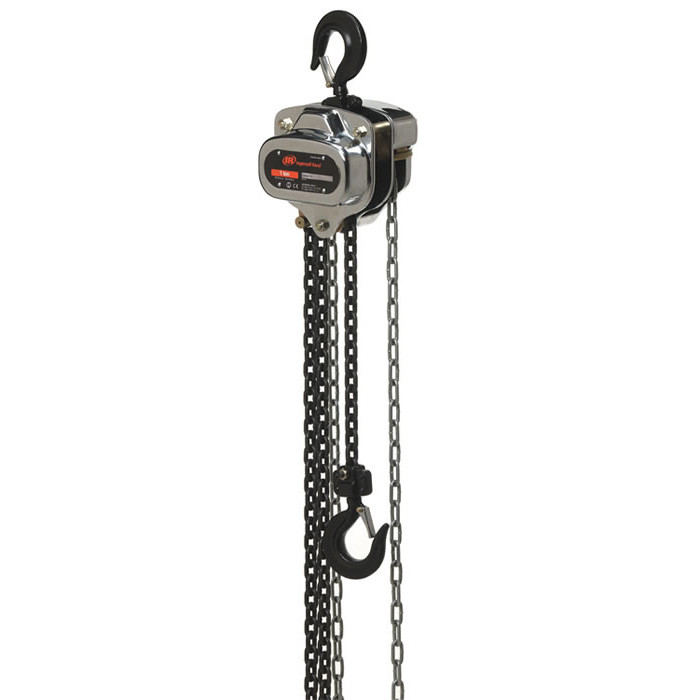

Ingersoll Rand SMB015-15-13V Silver Series Manual Chain Hoist | 15' Standard Lift | 1-1/2 (metric tons) Capacity | 1 Chain Falls

Ingersoll Rand SMB015-15-13V Silver Series Manual Chain Hoist is designed for controlled manual lifting of loads up to 1.5 metric tons (3,300 lb). This configuration provides a 15 ft standard lift, 13 ft hand chain drop, and 1 chain fall. The Silver Series combines high-strength stamped-steel construction, roller-bearing support, a self-adjusting mechanical load brake, and overload protection for demanding manual lifting applications.

The SMB015 model uses a 7 x 21 mm load chain and requires 69 lb of pull to lift the rated load. Its V configuration incorporates a slip-clutch overload protection system that slips in the lifting direction only. The 15 ft lift and 13 ft hand-chain drop follow the Silver Series ordering format, in which the lift and hand-chain drop are specified separately.

Type: Manual Chain Hoist | Series: Silver Series | Model: SMB015-15-13V | Capacity: 1.5 Metric Tons (3,300 lb) | Standard Lift: 15 ft | Hand Chain Drop: 13 ft | Chain Falls: 1 | Load Chain Size: 7 x 21 mm | Pull to Lift Rated Load: 69 lb | Overload Protection: Slip Clutch | Minimum Headroom: 17.1 in

Features:

• High-strength, all-stamped steel construction provides impact resistance while keeping the hoist relatively lightweight.
• Single chain fall provides the lifting configuration specified for the SMB015 1.5 metric ton model.
• Encased and retained roller bearings support efficient operation and ease of maintenance.
• Self-adjusting disc-type double-pawl mechanical load brake provides controlled load holding.
• Overload protection is provided by a slip clutch that operates in the lifting direction only.
• Nickel/chrome-plated exterior and zinc-plated frame components provide corrosion resistance.
• Double hand-chain guides help provide smooth operation when pulling excess hand chain.
• Open-frame construction allows easier cleaning and inspection.
• Hardened swivel-latch hooks provide the specified hook configuration for the Silver Series.
• CE-certified Silver Series hoists meet or exceed regional requirements including ASME B30.16 and HST-2M.

Applications:

• Construction and jobsite lifting — raising and positioning equipment and materials where a 1.5 metric ton manual hoist is appropriate.
• Industrial maintenance — lifting machinery components and equipment during repair and service operations.
• Rigging applications — controlled manual lifting using a single-chain-fall configuration.
• Material handling — positioning loads in workshops, maintenance areas, and industrial facilities.

FAQs:

• Q: What is the capacity of the SMB015-15-13V?
  A: The hoist is rated for 1.5 metric tons, equivalent to 3,300 lb, when used according to manufacturer specifications and proper lifting procedures.
• Q: What does the 15 ft standard lift mean?
  A: The 15 ft standard lift specifies the vertical load travel configuration for this model.
• Q: Why is the hand chain drop 13 ft?
  A: The 13 ft hand-chain drop is the operating-chain configuration specified with the 15 ft lift for this SKU.
• Q: How many chain falls does the SMB015-15-13V use?
  A: It uses 1 chain fall.
• Q: What type of overload protection does the V configuration use?
  A: The V configuration uses a slip clutch that provides overload protection and slips in the lifting direction only.
• Q: What size load chain is used on the SMB015?
  A: The SMB015 uses a 7 x 21 mm load chain.
• Q: How much pull is required to lift the rated load?
  A: The specified pull to lift the rated 1.5 metric ton load is 69 lb.
