Ingersoll Rand SMB015-10-8V Manual Chain Hoist | 1-1/2 Ton Capacity | 10 (ft.) Lift | 8 Hand Chain Drop

Ingersoll Rand SMB015-10-8V Silver Series Manual Chain Hoist is designed for controlled manual lifting of loads up to 1.50 metric tons (3,300 lb). This configuration provides a 10 ft lift, 8 ft hand chain drop, and 1 chain fall. The Silver Series combines high-strength stamped-steel construction, roller-bearing support, a self-adjusting mechanical load brake, and overload protection for demanding manual lifting, maintenance, construction, and rigging applications.

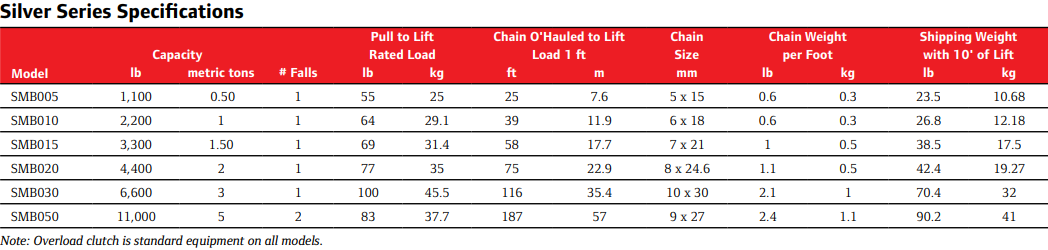

The SMB015 model uses a 7 x 21 mm load chain and requires 69 lb of pull to lift the rated load. The V configuration incorporates the Silver Series overload clutch, which slips in the lifting direction only. The manufacturer specifies 58 ft of hand-chain overhaul per 1 ft of load lift for the SMB015. The 10 ft lift and 8 ft hand-chain drop identify the specific configuration represented by SMB015-10-8V.

Type: Manual Chain Hoist | Series: Silver Series | Model: SMB015-10-8V | Capacity: 1.50 Metric Tons (3,300 lb) | Lift: 10 ft | Hand Chain Drop: 8 ft | Chain Falls: 1 | Load Chain Size: 7 x 21 mm | Pull to Lift Rated Load: 69 lb | Hand Chain Overhaul: 58 ft per 1 ft of Load Lift | Overload Protection: Slip Clutch | Minimum Headroom: 17.1 in

Features:

• High-strength, all-stamped steel construction provides impact resistance while reducing hoist weight.
• Single chain fall provides the specified lifting configuration for the SMB015 1.50 metric ton capacity.
• Encased and retained roller bearings on the input shaft support efficient operation and ease of maintenance.
• Self-adjusting disc-type double-pawl mechanical load brake provides controlled load holding.
• Overload protection is provided by a clutch that slips in the lifting direction only.
• Nickel/chrome-plated exterior and zinc-plated frame components provide increased corrosion resistance.
• Double hand-chain guides provide smooth operation when pulling excess hand chain.
• Open-frame construction allows easier cleaning and inspection.
• Hardened swivel-latch hooks provide the specified hook configuration for the Silver Series.
• CE certification and compliance with regional requirements including ASME B30.16 and HST-2M are specified for the Silver Series.

Applications:

• Construction and jobsite lifting — raising and positioning equipment and materials where a 1.50 metric ton manual hoist is appropriate.
• Industrial maintenance — lifting machinery components and equipment during repair and service operations.
• Rigging applications — controlled manual lifting using a single-chain-fall configuration.
• Material handling — positioning loads in workshops, maintenance areas, and industrial facilities requiring a 10 ft lift.

FAQs:

• Q: What is the capacity of the SMB015-10-8V?
  A: The hoist is rated for 1.50 metric tons, equivalent to 3,300 lb, when operated according to manufacturer specifications and proper lifting procedures.
• Q: What does the 10 ft lift specification mean?
  A: The 10 ft lift identifies the vertical load-travel configuration for this model.
• Q: What does the 8 ft hand chain drop mean?
  A: The 8 ft hand chain drop identifies the operating hand-chain configuration supplied for this SKU.
• Q: How many chain falls does the SMB015-10-8V use?
  A: It uses 1 chain fall.
• Q: What type of overload protection does this model have?
  A: The V configuration uses an overload clutch that slips in the lifting direction only.
• Q: What size load chain does the SMB015 use?
  A: The SMB015 uses a 7 x 21 mm load chain.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer's specified pull to lift the rated 1.50 metric ton load is 69 lb.
