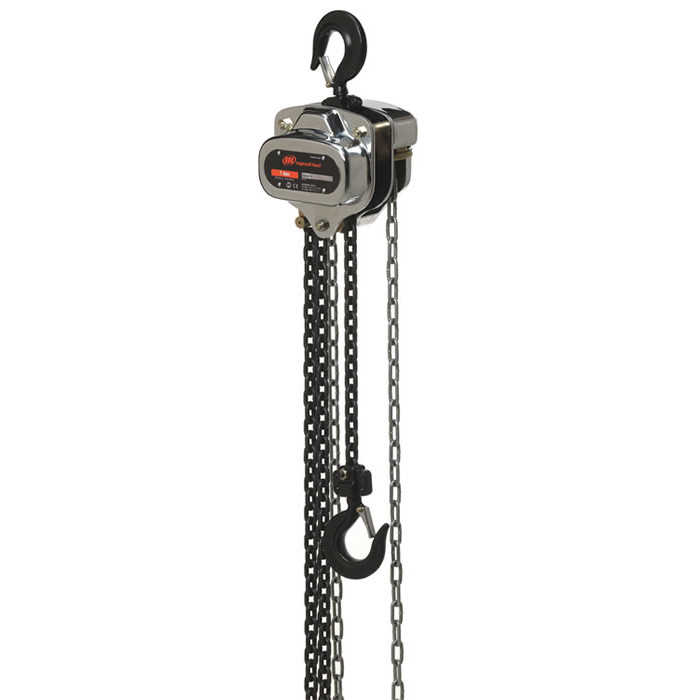

Ingersoll Rand SMB010-FV Silver Series Manual Chain Hoist is the 1 metric ton (2,200 lb) capacity version supplied without load chain. The F configuration identifies the hoist without load chain, while V identifies the slip-clutch overload protection. Because this is a load-chain-less configuration, no lift or hand-chain drop is assigned to the SKU; the appropriate load chain must be specified separately for the required lifting application. The manufacturer identifies the SMB010 as a single-chain-fall model.
The SMB010 Silver Series hoist uses 6 x 18 mm load chain when configured with load chain and has a specified 64 lb pull to lift the rated load. Its Silver Series construction includes high-strength stamped steel components, encased and retained roller bearings, a self-adjusting disc-type double-pawl mechanical load brake, double hand-chain guides, and an open-frame design. The manufacturer also specifies nickel/chrome-plated exterior and zinc-plated frame components for corrosion resistance, hardened swivel-latch hooks, and overload protection through a clutch that slips in the lifting direction only.
Type: Manual Chain Hoist | Series: Silver Series | Model: SMB010-FV | Capacity: 1 Metric Ton (2,200 lb) | Configuration: Hoist Without Load Chain | Chain Falls: 1 | Load Chain Size: 6 x 18 mm | Pull to Lift Rated Load: 64 lb | Overload Protection: Slip Clutch
Features:
- Hoist-only configuration is supplied without load chain, allowing the required chain length to be specified separately.
- High-strength, all-stamped steel construction provides impact resistance with reduced hoist weight.
- Encased and retained roller bearings support efficient operation and easier maintenance.
- Self-adjusting disc-type double-pawl mechanical load brake provides controlled load holding.
- Slip-clutch overload protection operates in the lifting direction only.
- Nickel/chrome-plated exterior and zinc-plated frame components provide corrosion resistance.
- Double hand-chain guides help provide smooth hand-chain operation when excess chain is pulled.
- Open-frame construction allows easier cleaning and inspection.
- Hardened swivel-latch hooks provide the specified hook configuration for the Silver Series.
- CE-certified Silver Series hoists meet or exceed regional requirements including ASME B30.16 and HST-2M.
Applications:
- Industrial maintenance — lifting and positioning equipment and components when the required load-chain length will be selected separately.
- Construction and rigging — configuring a manual hoist for applications requiring a specific load-chain length.
- Material handling — supporting controlled manual lifting where a 1 metric ton capacity is appropriate.
- Rental and general construction — the Silver Series is identified by Ingersoll Rand as well suited to rental and construction markets.
FAQs:
- Q: What does “hoist without load chain” mean?
A: The SMB010-FV is supplied as the hoist assembly without load chain. The appropriate load chain must be specified separately for the intended lifting configuration. - Q: What is the capacity of the SMB010-FV?
A: The SMB010-FV has a rated capacity of 1 metric ton, equivalent to 2,200 lb. - Q: Does the SMB010-FV include overload protection?
A: Yes. The V designation identifies the slip-clutch configuration, and the Silver Series catalog states that overload protection is standard and that the clutch slips in the lifting direction only. - Q: How many chain falls does the SMB010 use?
A: The SMB010 uses 1 chain fall. - Q: What load chain size is specified for the SMB010?
A: The catalog specifies a 6 x 18 mm load chain for the SMB010. - Q: What is the hand-chain drop for the SMB010-FV?
A: No hand-chain drop is assigned to the SMB010-FV because the SKU is a hoist-without-load-chain configuration and does not specify a lift length

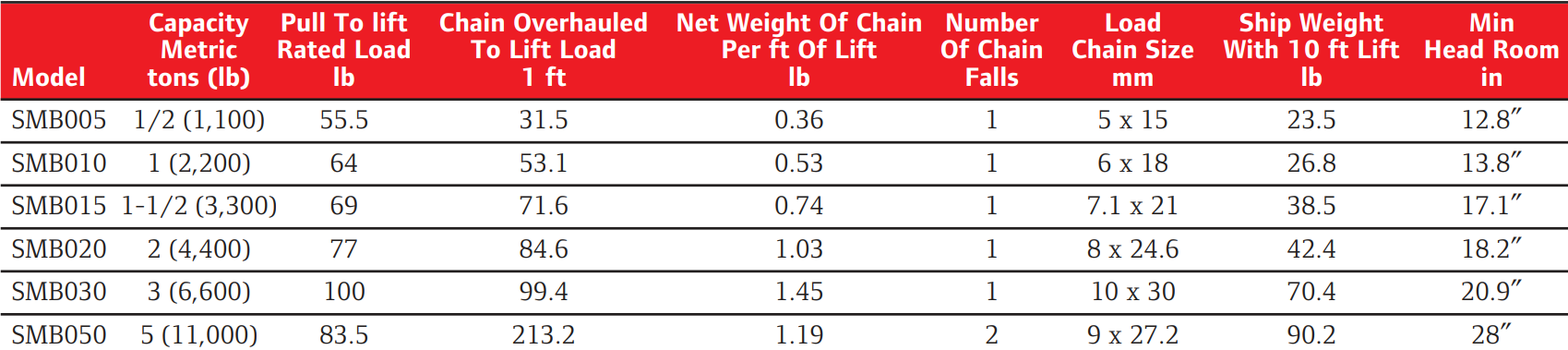

| SKU | CAPACITY | # FALLS | PULL TO LIFT RATED LOAD |
CHAIN O'HAULED TO LIFT LOAD 1 FT |
CHAIN SIZE MM |
CHAIN WEIGHT PER FOOT |
SHIPPING WEIGHT WITH 10' OF LIFT |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LB | METRIC TONS | LB | KG | FT | M | LB | KG | LB | KG | |||
| SMB005 | 1,100 | 0.50 | 1 | 55 | 25 | 25 | 7.6 | 5 x 15 | 0.6 | 0.3 | 23.5 | 10.68 |
| SMB010 | 2,200 | 1 | 1 | 64 | 29.1 | 39 | 11.9 | 6 x 18 | 0.6 | 0.3 | 26.8 | 12.18 |
| SMB015 | 3,300 | 1.50 | 1 | 69 | 31.4 | 58 | 17.7 | 7 x 21 | 1 | 0.5 | 38.5 | 17.5 |
| SMB020 | 4,400 | 2 | 1 | 77 | 35 | 75 | 22.9 | 8 x 24.6 | 1.1 | 0.5 | 42.4 | 19.27 |
| SMB030 | 6,600 | 3 | 1 | 100 | 45.5 | 116 | 35.4 | 10 x 30 | 2.1 | 1 | 70.4 | 32 |
| SMB050 | 11,000 | 5 | 2 | 83 | 37.7 | 187 | 57 | 9 x 27 | 2.4 | 1.1 | 90.2 | 41 |
Looking for more information about the Ingersoll Rand Hoist? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Hoists for your assembly application, please email info@intlairtool.com or call (800) 608-5210
- Type
- Manual Chain Hoist
- Chain Overhauled to Lift Load 1 (ft.)
- 39
- Pull To Lift Rated Load (lbs.)
- 64
- Capacity (lbs)
- 2200
- Capacity (tons)
- 1
