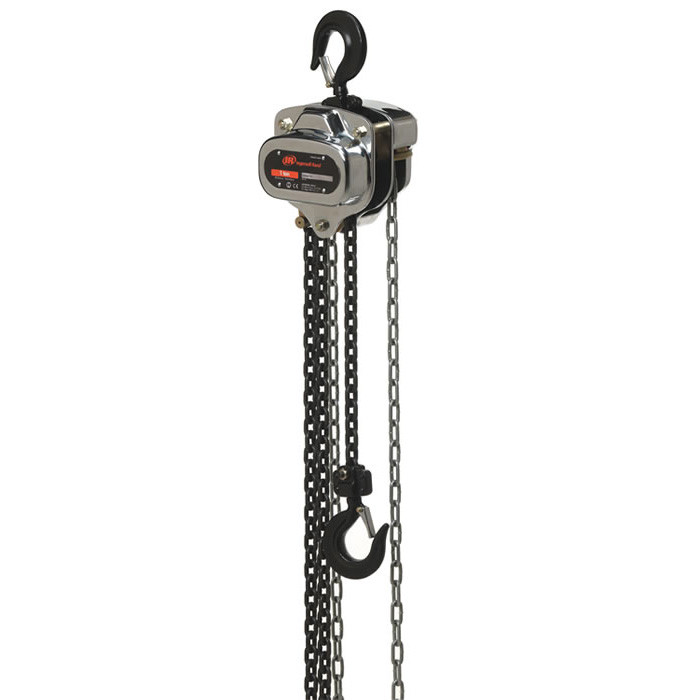

Ingersoll Rand SMB010-20-18V Silver Series Manual Chain Hoist | 20' Standard Lift | 1 (metric tons) Capacity | 1 Chain Falls

Ingersoll Rand SMB010-20-18V Silver Series Manual Chain Hoist is designed for controlled manual lifting of loads up to 1 metric ton (2,200 lb). This configuration provides a 20 ft standard lift, 18 ft hand chain drop, and 1 chain fall, making it suitable for construction, maintenance, rental, rigging, and general material-handling applications. The Silver Series combines a low-headroom, all-steel design with a self-adjusting mechanical load brake and overload protection for controlled lifting and load holding.

The SMB010-20-18V uses a 6 x 18 mm load chain and requires 64 lb of pull to lift the rated load. Its V configuration provides overload protection through a slip clutch that operates in the lifting direction. The hand chain drop is normally 2 ft shorter than the lift, which corresponds to the specified 20 ft lift and 18 ft hand chain for this model.

Type: Manual Chain Hoist | Series: Silver Series | Model: SMB010-20-18V | Capacity: 1 Metric Ton (2,200 lb) | Standard Lift: 20 ft | Hand Chain Drop: 18 ft | Chain Falls: 1 | Load Chain Size: 6 x 18 mm | Pull to Lift Rated Load: 64 lb | Overload Protection: Slip Clutch | Minimum Headroom: 13.8 in

Features:

• Overload protection helps reduce downtime and repair costs resulting from abusive loading conditions.
• All-steel, low-headroom construction provides a compact manual hoist configuration for lifting applications.
• Self-adjusting disc-type double-pawl mechanical load brake provides controlled load holding.
• Encased and retained roller bearings support efficient operation and ease of maintenance.
• Nickel, copper, nickel, and chrome exterior finishing with zinc-plated frame components provides corrosion resistance.
• Open-frame construction allows easier cleaning and inspection of the hoist.
• Double hand-chain guides provide smooth operation when pulling excess hand chain.
• The V configuration incorporates a slip clutch for overload protection in the lifting direction.
• The Silver Series is ideally suited for rental and construction markets.

Applications:

• Construction and rental — manual lifting and positioning of equipment and materials on jobsites.
• Industrial maintenance — raising machinery components and equipment during service and repair work.
• Rigging operations — controlled manual lifting where a single-chain-fall configuration is appropriate.
• Material handling — positioning loads in workshops, facilities, and other industrial environments.

FAQs:

• Q: What is the capacity of the SMB010-20-18V?
  A: The hoist is rated for 1 metric ton, equivalent to 2,200 lb, when used according to manufacturer specifications and proper lifting procedures.
• Q: What does the 20 ft standard lift mean?
  A: The 20 ft standard lift indicates the vertical distance through which the load can be raised or lowered.
• Q: Why is the hand chain drop 18 ft?
  A: In the standard configuration, the hand chain is 2 ft shorter than the lift. Therefore, a 20 ft lift is configured with an 18 ft hand chain drop.
• Q: How many chain falls does this model have?
  A: The SMB010-20-18V uses 1 chain fall.
• Q: What type of overload protection does this model use?
  A: The V configuration uses a slip clutch that provides overload protection in the lifting direction.
• Q: What size load chain does the SMB010 use?
  A: The SMB010 uses a 6 x 18 mm load chain.
• Q: How much hand-chain pull is required to lift the rated load?
  A: The specified pull to lift the rated 1 metric ton load is 64 lb.
