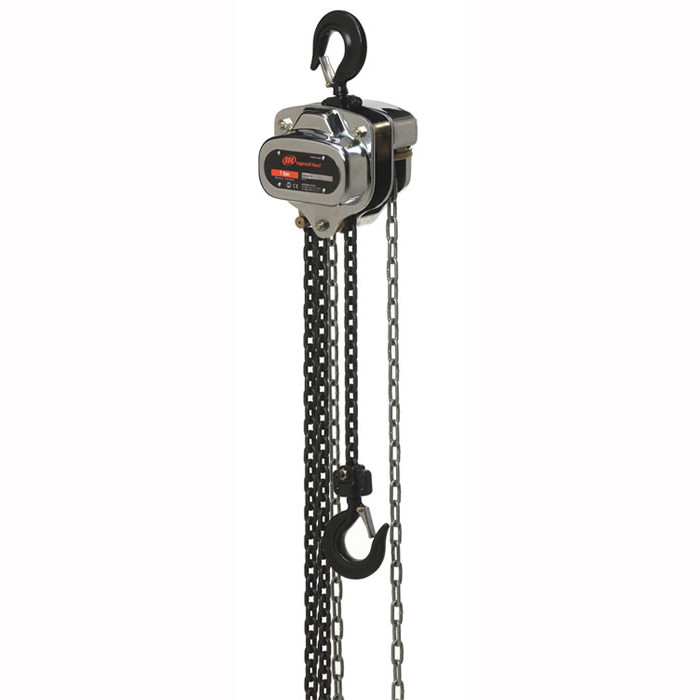

Ingersoll Rand SMB010-10-8V Silver Series Manual Chain Hoist | 1 Ton Capacity | 10 ft Lift | 8 ft Drop

Ingersoll Rand SMB010-10-8V Silver Series Manual Chain Hoist is designed for controlled manual lifting of loads up to 1 metric ton (1,000 kg / 2,200 lb). This configuration provides a 10 ft standard lift, 8 ft hand chain drop, and 1 chain fall. Its Silver Series design combines high-strength stamped-steel construction, roller bearings, efficient gear reduction, and overload protection for lifting applications in construction, maintenance, rigging, and general material handling.

The SMB010-10-8V requires 64 lb of pull to lift the rated load and uses a 6 x 18 mm load chain. The V configuration incorporates a slip clutch for overload protection; the manufacturer specifies that the clutch slips in the lifting direction only. The 8 ft hand-chain drop follows the manufacturer's standard configuration of making the hand chain 2 ft shorter than the 10 ft load-chain lift.

Type: Manual Chain Hoist | Series: Silver Series | Model: SMB010-10-8V | Capacity: 1 Metric Ton (1,000 kg / 2,200 lb) | Standard Lift: 10 ft | Hand Chain Drop: 8 ft | Chain Falls: 1 | Load Chain Size: 6 x 18 mm | Pull to Lift Rated Load: 64 lb | Overload Protection: Slip Clutch | Headroom, Hook Mount: 13.8 in | Chain Overhaul per 1 ft of Load Lift: 39 ft

Features:

• High-strength, all-stamped steel construction provides reduced weight and improved impact resistance.
• Single chain fall is used through the 3 metric ton Silver Series capacity models.
• Encased and retained roller bearings on the input shaft support efficient operation and ease of maintenance.
• Self-adjusting disc-type double-pawl mechanical load brake provides controlled load holding.
• Slip-clutch overload protection helps reduce downtime and repair costs resulting from abusive loading conditions.
• The overload clutch slips in the lifting direction only.
• Nickel, copper, nickel, and chrome exterior finishing with zinc-plated frame components provides corrosion resistance.
• Double hand-chain guides help provide smooth operation when pulling excess hand chain.
• Open-frame construction allows easier cleaning and inspection.
• Hardened swivel-latch hooks provide the specified hook configuration for the Silver Series.
• CE-certified Silver Series hoists meet or exceed regional requirements including ASME B30.16 and HST-2M.

Applications:

• Construction and rental — lifting and positioning equipment and materials where a 1 metric ton manual hoist is appropriate.
• Industrial maintenance — raising machinery components and equipment during repair and service work.
• Rigging operations — controlled manual lifting using a single-chain-fall configuration.
• General material handling — positioning loads in workshops, facilities, and industrial environments.

FAQs:

• Q: What is the capacity of the SMB010-10-8V?
  A: The hoist is rated for 1 metric ton, equivalent to 1,000 kg or 2,200 lb, when used according to manufacturer specifications and proper lifting procedures.
• Q: What does the 10 ft lift specification mean?
  A: The 10 ft lift is the standard load-chain and hook travel configuration for this model.
• Q: Why is the hand chain drop 8 ft?
  A: The manufacturer's standard configuration specifies the hand chain as 2 ft shorter than the lift, so the 10 ft lift configuration uses an 8 ft hand chain.
• Q: How many chain falls does this hoist use?
  A: The SMB010-10-8V uses 1 chain fall.
• Q: What type of overload protection does this model have?
  A: It uses a slip clutch. The manufacturer specifies that the clutch slips in the lifting direction only.
• Q: How much pull is required to lift the rated load?
  A: The specified pull to lift the rated 1 metric ton load is 64 lb.
