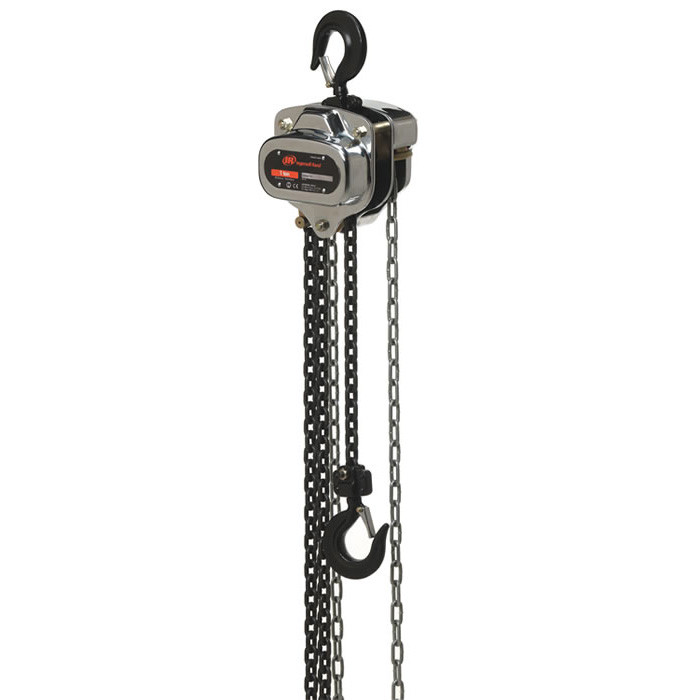

Ingersoll Rand SMB005-20-8V Silver Series Manual Chain Hoist | 20' Standard Lift | 1/2 (metric tons) Capacity | 1 Chain Falls

Ingersoll Rand SMB005-20-8V Silver Series Manual Chain Hoist is a dependable and rugged lifting solution designed for industrial, maintenance, and material handling applications. It offers a 1/2 metric ton (1100 lbs) capacity with a 20 ft standard lift and 1 chain fall for efficient load control. Constructed with an all-steel body and high-quality finish, the hoist provides long-lasting durability and corrosion resistance in demanding environments. Its manual chain operation delivers smooth and precise lifting and lowering across a variety of tasks. Designed for ease of use, it features a comfortable hand chain and optimized internal gearing to reduce operator effort. Equipped with a premium-grade alloy load chain and forged hooks with safety latches, it ensures secure and dependable load management. The balanced, compact design allows installation in tight spaces while maintaining strength and performance. Ideal for maintenance, construction, rigging, and material handling tasks, it delivers consistent performance in demanding conditions. Overall, the SMB005-20-8V combines durability, ease of operation, and ergonomic design to provide professional-grade manual lifting capabilities.

Type: Manual Chain Hoist | Capacity (metric tons): 1/2 | Capacity (lbs): 1,100 | Standard Lift (ft.): 20 | Pull to Lift Rated Load (lbs): 55.5 | Number of Chain Falls: 1 | Chain Overhauled to Lift Load 1 (ft.): 31.5 | Load Chain Size (mm): 5 x 15 | Min Head Room (in.): 12.8 | Hand Chain Drop V (ft.): 8

Features: Overload Protection to deter and reduce downtime and repair costs resulting from abuse All steel, low headroom, lightweight construction Self-adjusting disc-type double pawl mechanical load brake Hardened roller bearings for maximum efficiency and durability 4-layer finish of nickel, copper, nickel, and chrome - rugged enough to last Ideal for the Rental and Construction markets Hand chain drop is 2 feet less than the lift (unless specified)

Looking for more information about the Ingersoll Rand Hoist? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Hoists for your assembly application, please email info@intlairtool.com or call (800) 608-5210
