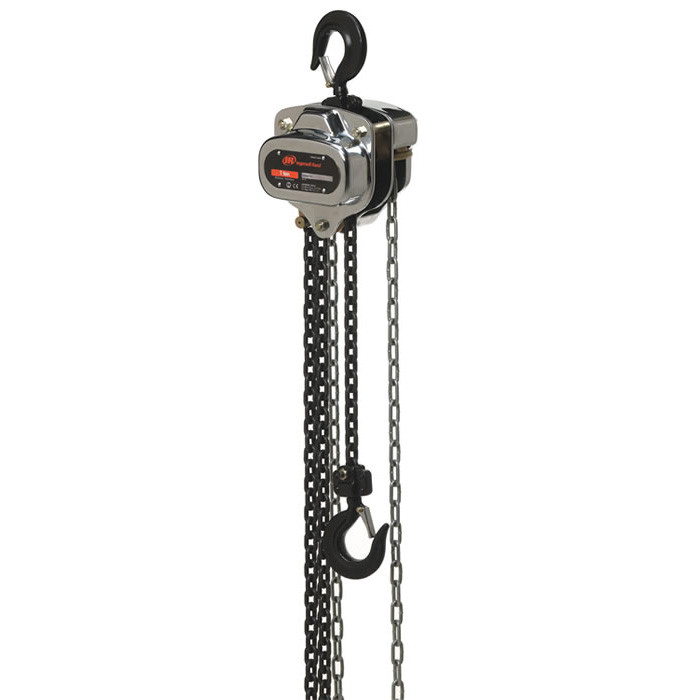

Ingersoll Rand SMB005-15-13V Silver Series Manual Chain Hoist is designed for controlled manual lifting applications requiring dependable load handling. This model features a 1/2 metric ton capacity, 15 ft standard lift, and 1 chain fall configuration, providing a practical lifting solution for maintenance, repair, assembly, and material handling operations where manual lifting equipment is required.
Part of the Ingersoll Rand Silver Series Manual Chain Hoist line, the SMB005-15-13V offers straightforward manual operation for industrial lifting tasks. The single chain fall design provides a simple lifting arrangement, while the 15 ft standard lift allows users to raise and position loads in a variety of workplace environments.
Type: Manual Chain Hoist | Series: Silver Series | Model: SMB005-15-13V | Capacity: 1/2 metric ton | Standard Lift: 15 ft | Chain Falls: 1
Features:
- Manual chain operation provides controlled lifting without the need for electrical or pneumatic power.
- Single chain fall configuration provides a simple and efficient lifting setup.
- 15 ft standard lift supports applications requiring extended vertical load movement.
- Compact hoist design allows use in maintenance areas, workshops, and industrial facilities.
- Silver Series design provides a practical solution for general manual lifting applications.
- Suitable for positioning and handling loads where portable lifting equipment is required.
Applications:
- Industrial maintenance — lifting machinery components, equipment parts, and assemblies during service operations.
- Workshops and repair facilities — providing manual lifting capability for equipment repair and installation tasks.
- Material handling — raising and lowering loads in manufacturing and industrial work areas.
- Assembly operations — assisting with controlled positioning of components during installation processes.
FAQs:
- Q: What is the lifting capacity of the SMB005-15-13V?
A: The SMB005-15-13V is rated for a 1/2 metric ton lifting capacity according to the provided product information. - Q: What does 1 chain fall mean?
A: A 1 chain fall configuration uses a single load chain arrangement, providing a straightforward manual lifting setup. - Q: What does the 15 ft standard lift indicate?
A: The standard lift specifies that this model is designed to raise loads through a vertical distance of 15 ft. - Q: Is the SMB005-15-13V an electric or pneumatic hoist?
A: No, this model is a manual chain hoist operated by hand chain movement.
| SKU | CAPACITY | # FALLS | PULL TO LIFT RATED LOAD |
CHAIN O'HAULED TO LIFT LOAD 1 FT |
CHAIN SIZE MM |
CHAIN WEIGHT PER FOOT |
SHIPPING WEIGHT WITH 10' OF LIFT |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LB | METRIC TONS | LB | KG | FT | M | LB | KG | LB | KG | |||
| SMB005 | 1,100 | 0.50 | 1 | 55 | 25 | 25 | 7.6 | 5 x 15 | 0.6 | 0.3 | 23.5 | 10.68 |
| SMB010 | 2,200 | 1 | 1 | 64 | 29.1 | 39 | 11.9 | 6 x 18 | 0.6 | 0.3 | 26.8 | 12.18 |
| SMB015 | 3,300 | 1.50 | 1 | 69 | 31.4 | 58 | 17.7 | 7 x 21 | 1 | 0.5 | 38.5 | 17.5 |
| SMB020 | 4,400 | 2 | 1 | 77 | 35 | 75 | 22.9 | 8 x 24.6 | 1.1 | 0.5 | 42.4 | 19.27 |
| SMB030 | 6,600 | 3 | 1 | 100 | 45.5 | 116 | 35.4 | 10 x 30 | 2.1 | 1 | 70.4 | 32 |
| SMB050 | 11,000 | 5 | 2 | 83 | 37.7 | 187 | 57 | 9 x 27 | 2.4 | 1.1 | 90.2 | 41 |
Looking for more information about the Ingersoll Rand Hoist? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Hoists for your assembly application, please email info@intlairtool.com or call (800) 608-5210
