Ingersoll Rand SMB005-10-8V Silver Series Manual Chain Hoist is designed for controlled manual lifting applications requiring dependable load handling in industrial, maintenance, and material handling environments. This model features a 1/2 ton capacity, 10 ft lift, and 8 ft drop, providing a practical solution for applications where manually operated lifting equipment is required.
Part of the Ingersoll Rand Silver Series Manual Chain Hoist family, the SMB005-10-8V provides straightforward hand-operated lifting performance for positioning and handling loads. The 10 ft lift length supports general lifting requirements, while the manual chain design allows controlled load movement without requiring electrical or pneumatic power.
Type: Manual Chain Hoist | Series: Silver Series | Model: SMB005-10-8V | Capacity: 1/2 Ton | Lift: 10 ft | Drop: 8 ft
Features:
- Manual chain operation provides controlled lifting without requiring electrical or pneumatic power.
- 1/2 ton capacity supports general industrial lifting and material handling applications.
- 10 ft lift length accommodates common vertical lifting requirements in workshops and industrial facilities.
- Compact manual hoist design allows convenient use in maintenance, repair, and assembly operations.
- Silver Series design provides a practical solution for controlled manual load handling.
- Suitable for applications requiring portable and manually operated lifting equipment.
Applications:
- Industrial maintenance — lifting and positioning machinery components, equipment parts, and assemblies.
- Workshops and repair facilities — providing manual lifting capability for service and installation tasks.
- Material handling — raising and lowering loads in manufacturing and industrial work areas.
- Assembly operations — assisting with controlled positioning of components during installation.
FAQs:
- Q: What is the capacity of the SMB005-10-8V?
A: The SMB005-10-8V is rated for a 1/2 ton lifting capacity according to the provided product information. - Q: What does the 10 ft lift indicate?
A: The lift specification indicates the vertical distance the hoist is designed to raise a load, which is 10 ft for this model. - Q: What does the 8 ft drop mean?
A: The drop specification refers to the chain drop length provided for operation of the hoist. - Q: Is the SMB005-10-8V powered?
A: No, this model is a manual chain hoist operated by hand chain movement rather than electric or pneumatic power.

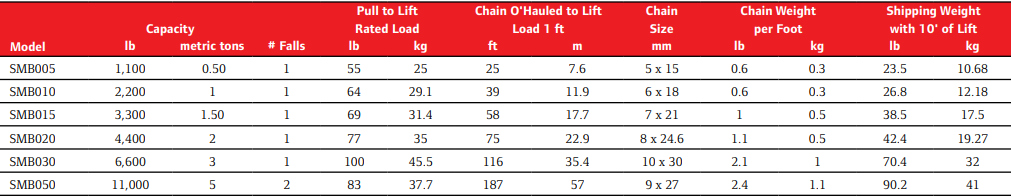

| SKU | CAPACITY | # FALLS | PULL TO LIFT RATED LOAD |
CHAIN O'HAULED TO LIFT LOAD 1 FT |
CHAIN SIZE MM |
CHAIN WEIGHT PER FOOT |
SHIPPING WEIGHT WITH 10' OF LIFT |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LB | METRIC TONS | LB | KG | FT | M | LB | KG | LB | KG | |||
| SMB005 | 1,100 | 0.50 | 1 | 55 | 25 | 25 | 7.6 | 5 x 15 | 0.6 | 0.3 | 23.5 | 10.68 |
| SMB010 | 2,200 | 1 | 1 | 64 | 29.1 | 39 | 11.9 | 6 x 18 | 0.6 | 0.3 | 26.8 | 12.18 |
| SMB015 | 3,300 | 1.50 | 1 | 69 | 31.4 | 58 | 17.7 | 7 x 21 | 1 | 0.5 | 38.5 | 17.5 |
| SMB020 | 4,400 | 2 | 1 | 77 | 35 | 75 | 22.9 | 8 x 24.6 | 1.1 | 0.5 | 42.4 | 19.27 |
| SMB030 | 6,600 | 3 | 1 | 100 | 45.5 | 116 | 35.4 | 10 x 30 | 2.1 | 1 | 70.4 | 32 |
| SMB050 | 11,000 | 5 | 2 | 83 | 37.7 | 187 | 57 | 9 x 27 | 2.4 | 1.1 | 90.2 | 41 |
Looking for more information about the Ingersoll Rand Hoist? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Hoists for your assembly application, please email info@intlairtool.com or call (800) 608-5210
