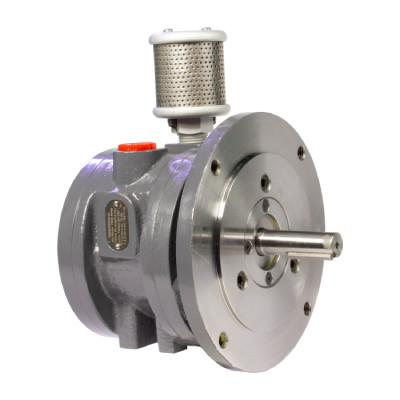

Ingersoll Rand SM6AMAN-A SM Series Direct Drive Vane Air Motor provides clean, consistent pneumatic rotary power for industrial machinery, automation, and sensitive manufacturing applications. This 3.6 HP lube-free air motor delivers a 7,900 RPM free speed, 5.3 lb-ft starting torque, and 8.7 lb-ft stall torque. Lube-free airline operation helps prevent oil contamination, making the motor well suited for applications where traditional lubricants must be strictly avoided.
The SM6AMAN-A is the NEMA configuration of the SM Series and features a compact design with versatile mounting options across the series. Its self-regulating cooling system helps maintain optimal operating temperatures, including in hot or humid environments, while easy throttling and quick response provide instant starting and stopping. An auto-stop mechanism helps protect the motor in the event of an overload.
Product Type: Direct Drive Vane Air Motor | Series: SM Series | Lubrication: Lube-Free | Maximum Power: 3.6 HP | Free Speed: 7,900 RPM | Starting Torque: 5.3 lb-ft | Stall Torque: 8.7 lb-ft | Air Consumption: 120 SCFM | Mounting: NEMA
Features:
- Lube-free airline operation helps prevent oil contamination in sensitive manufacturing applications.
- Direct-drive vane design provides pneumatic rotary power for industrial machinery and equipment integration.
- 3.6 HP maximum power provides substantial output for demanding pneumatic applications.
- 7,900 RPM free speed supports high-speed rotary operation.
- Self-regulating cooling system helps maintain optimal temperatures and prevent overheating, including in hot or humid environments.
- Easy throttling and quick response times provide instant start-and-stop operation.
- Auto-stop mechanism helps protect the motor in the event of an overload.
- NEMA configuration provides a standardized mounting arrangement for compatible equipment.
- SM Series mounting options include Foot, Flange, Hub, and NEMA configurations for installation flexibility.
- ATEX- and CE-certified design is intended for operation in hazardous locations where applicable.
Applications:
- Sensitive manufacturing equipment where lubricant contamination must be avoided.
- OEM machinery and industrial equipment integration.
- Industrial automation systems requiring high-output pneumatic rotary power.
- Production and assembly equipment requiring clean, lube-free operation.
- Machinery operating in hot or humid environments where temperature management is important.
- Equipment applications requiring responsive starting, stopping, and speed control.
FAQs:
- Q: What does lube-free mean for the SM6AMAN-A?
A: The SM Series is designed for lube-free airline operation, helping prevent oil contamination in applications where lubricants must be strictly avoided. - Q: What does the NEMA designation mean?
A: The SM6AMAN-A is identified by Ingersoll Rand as the NEMA configuration of the SM6AMA-A. The NEMA mounting arrangement should be matched to the equipment before installation. - Q: What is the free speed of the SM6AMAN-A?
A: The manufacturer specifies a free speed of 7,900 RPM. - Q: How much air does the SM6AMAN-A consume?
A: The manufacturer's specifications list air consumption of 120 SCFM. - Q: What is the benefit of the self-regulating cooling system?
A: The cooling system helps maintain optimal motor temperatures and prevent overheating, including when the motor is operated in hot or humid environments. - Q: Is the SM6AMAN-A suitable for hazardous locations?
A: The SM Series is ATEX- and CE-certified for operation in hazardous locations. The specific installation should be evaluated against the applicable requirements for the intended environment.
| SKU | Option | Max. Power (HP) |
Free Speed (rpm) |
Starting Torque (lb-ft) |
Stall Torque (lb-ft) |
Air Consumption (scfm) |
|---|---|---|---|---|---|---|
| SM1AMA-A | - | 0.45 | 15000 | 0.4 | 0.57 | 20 |
| SM1AMAL-A | (Left-Hand Bias) | 0.45 | 15000 | 0.4 | 0.57 | 20 |
| SM2AMAN-A | (NEMA) | 0.9 | 8000 | 1.7 | 2.3 | 30 |
| SM2AMC-A | - | 0.9 | 8000 | 1.7 | 2.3 | 30 |
| SM4AMAN-A | (NEMA) | 1.5 | 7900 | 2.6 | 4.1 | 67 |
| SM4AMB-A | (Woodruff Key) | 1.5 | 7900 | 2.6 | 4.1 | 67 |
| SM6AMA-A | - | 3.6 | 7900 | 5.3 | 8.7 | 120 |
| SM6AMAN-A | (NEMA) | 3.6 | 7900 | 5.3 | 8.7 | 120 |
| SM8AMA-A | - | 4.8 | 7000 | 10 | 14 | 152 |
| SM8AMAN-A | (NEMA) | 4.8 | 7000 | 10 | 14 | 152 |
Looking for more information about Ingersoll Rand Vane Air Motor? For help choosing the correct Ingersoll Rand Vane Air Motors for your application, please call (800) 608-5210 or email info@intlairtool.com
