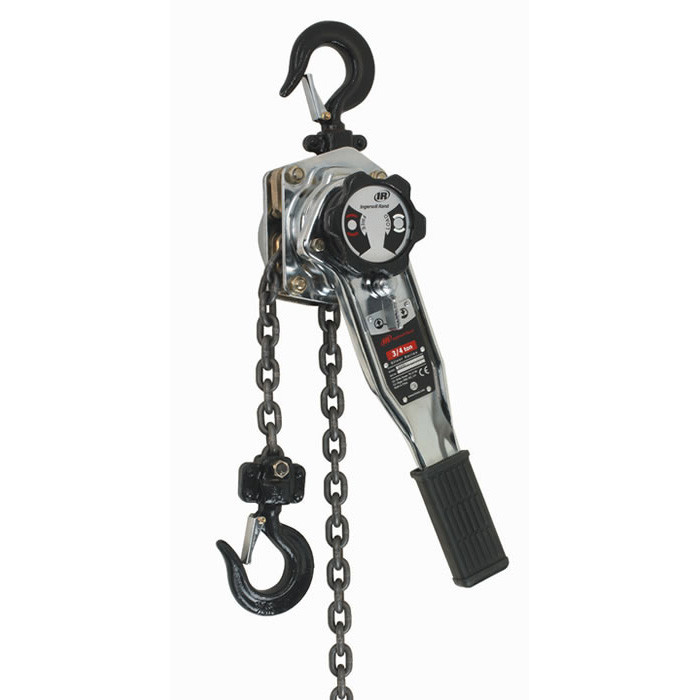

Ingersoll Rand SLB300-10 Silver Series Lever Chain Hoist | 10' Standard Lift | 1-1/2 (metric tons) Capacity | 1 Chain Falls

Built for controlled manual lifting, pulling, positioning, and rigging, the Ingersoll Rand SLB300-10 Silver Series Lever Chain Hoist provides a 1-1/2 metric ton (3,300 lb) rated capacity with a 10 ft standard lift and 1 chain fall. Its high-strength, all-stamped steel construction provides decreased weight and better impact resistance, while the compact lever-hoist design supports controlled manual operation in demanding lifting applications. The exact SLB300-10 configuration is listed by Intl Air Tool as a 10 ft, 1-1/2-ton Silver Series lever chain hoist.

The SLB300 requires 53 lb of pull to lift the rated load and uses a 7.1 x 21.2 mm premium-grade alloy load chain weighing 0.7 lb per foot. Encased and retained roller bearings support increased efficiency and ease of maintenance, while double-reduction gearing provides superior spotting characteristics and low handle effort. An automatic inertia brake engages if a load is applied while the hoist is in free-chain mode, helping minimize operator setup error. Its short handle and stroke allow 360° operation for rigging in tight spaces.

Type: Lever Chain Hoist | Series: Silver Series | Model: SLB300-10 | Capacity: 1-1/2 Metric Tons (3,300 lb) | Standard Lift: 10 ft | Chain Falls: 1 | Pull to Lift Rated Load: 53 lb | Load Chain Size: 7.1 x 21.2 mm | Chain Weight: 0.7 lb/ft | Minimum Headroom: 15.7 in | Shipping Weight with 10 ft Lift: 26 lb

Features:

• High-strength, all-stamped steel construction provides decreased weight and better impact resistance.
• Open-frame design makes cleaning and inspection easier.
• Encased and retained roller bearings support increased efficiency and ease of maintenance.
• Premium-grade alloy load chain provides the specified load-chain construction.
• Hardened swivel-latch hooks provide secure hook engagement during lifting operations.
• Nickel- and chrome-plated exterior and zinc-plated frame components provide increased corrosion resistance.
• Double-reduction gearing provides superior spotting characteristics and low handle effort.
• Deep lug knobs facilitate one-handed operation with or without gloves.
• Short handle and stroke allow 360° operation for rigging in tight spaces.
• Automatic inertia brake engages if a load is applied while the hoist is in free-chain mode, helping minimize operator setup error.
• Double hand-chain guides provide proper load-chain tracking and smooth operation around the load sheave.
• Silver Series lever chain hoists meet or exceed ANSI B30.21 standards according to the manufacturer catalog.

Applications:

• Manual load positioning — provides controlled lifting and positioning of loads within the 3,300 lb rated capacity.
• Maintenance and repair — suitable for positioning equipment, components, and machinery where a manual lever hoist is appropriate.
• Rigging — provides a single-chain-fall configuration for controlled manual lifting and positioning.
• Confined-space work — the short handle and stroke allow 360° operation where operating space is limited.
• Construction and material handling — the 10 ft standard lift provides vertical travel for general lifting and positioning tasks.

FAQs:

• Q: What is the capacity of the SLB300-10?
  A: The SLB300-10 is rated for 1-1/2 metric tons, equivalent to 3,300 lb.
• Q: What does the 10 ft standard lift mean?
  A: It identifies this SKU as the SLB300 configuration supplied with 10 ft of lifting travel.
• Q: How many chain falls does the SLB300-10 have?
  A: The SLB300 uses 1 chain fall.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 53 lb of pull to lift the rated load.
• Q: What size load chain does the SLB300 use?
  A: The SLB300 uses a 7.1 x 21.2 mm load chain with a listed chain weight of 0.7 lb per foot.
• Q: What is the minimum headroom?
  A: The manufacturer specifies 15.7 in minimum headroom for the SLB300.
• Q: What is the shipping weight of the SLB300-10?
  A: The manufacturer catalog lists 26 lb shipping weight for the SLB300 with 10 ft of lift.
• Q: Can the SLB300-10 be operated in tight spaces?
  A: Yes. The short handle and stroke allow 360° operation for rigging in tight spaces.
• Q: Does the SLB300-10 have an overload clutch?
  A: The supplied catalog does not identify a separate overload-clutch option for the SLB300. It specifies an automatic inertia brake that engages when a load is applied in free-chain mode.
