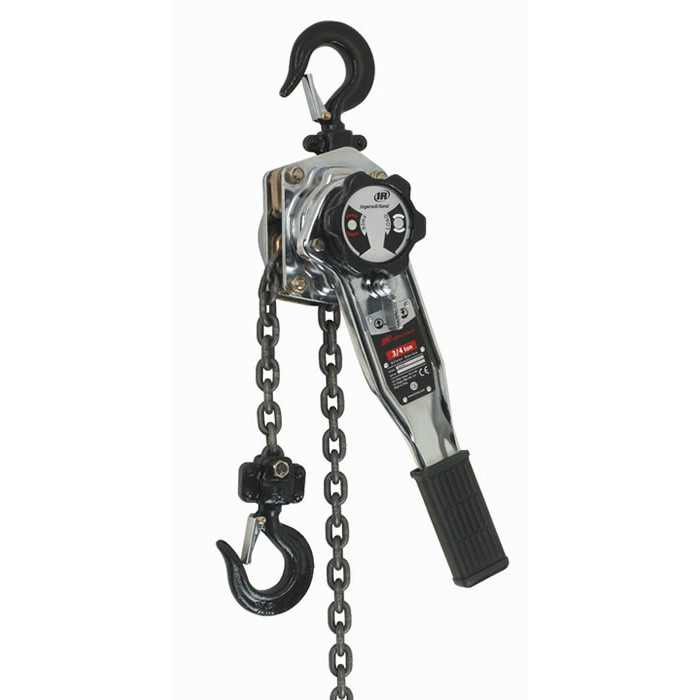

Ingersoll Rand SLB150-5 Silver Series Lever Chain Hoist | 5' Standard Lift | 3/4 (metric tons) Capacity | 1 Chain Falls

For controlled manual lifting, pulling, positioning, and rigging, the Ingersoll Rand SLB150-5 Silver Series Lever Chain Hoist provides a 3/4 metric ton (1,650 lb) rated capacity with a 5 ft standard lift and 1 chain fall. The Silver Series design combines all-steel construction with a compact lever-hoist format for applications where low handle effort and operation in confined spaces are important. The manufacturer specifies a 41 lb pull to lift the rated load.

The SLB150 uses a 6 x 18 mm premium-grade alloy load chain, encased and retained roller bearings, hardened swivel-latch hooks, and double-reduction gearing. A reliable disc brake provides load control, while the short handle and stroke allow 360° operation for rigging in tight spaces. The manufacturer also specifies deep lug knobs for one-handed operation with or without gloves and plated components for increased corrosion resistance.

Type: Lever Chain Hoist | Series: Silver Series | Model: SLB150-5 | Capacity: 3/4 Metric Ton (1,650 lb) | Standard Lift: 5 ft | Chain Falls: 1 | Pull to Lift Rated Load: 41 lb | Load Chain Size: 6 x 18 mm | Chain Weight: 0.5 lb/ft | Minimum Headroom: 13 in | Shipping Weight with 5 ft Lift: 16 lb

Features:

• All-steel construction provides the specified combination of durability and relatively low weight.
• Open-frame design allows easier cleaning and inspection.
• Encased and retained roller bearings increase operating efficiency and simplify maintenance.
• Premium-grade alloy load chain provides the specified load-chain construction.
• Hardened swivel-latch hooks provide the specified hook configuration.
• Nickel- and chrome-plated exterior and zinc-plated frame components provide increased corrosion resistance.
• Double-reduction gearing provides controlled spotting characteristics and low handle effort.
• Deep lug knobs support one-handed operation with or without gloves.
• Short handle and stroke allow 360° operation for rigging in tight spaces.
• Reliable disc brake provides the specified braking system for the Silver Series lever hoist.

Applications:

• Rigging and load positioning — provides manual control for lifting and positioning loads within the 1,650 lb rated capacity.
• Maintenance work — useful for positioning equipment and components where a compact lever chain hoist is appropriate.
• Confined-space rigging — the short handle and stroke support 360° operation where operating room is limited.
• Construction and material handling — provides a 5 ft standard-lift configuration for applications requiring relatively short vertical travel.

FAQs:

• Q: What is the capacity of the SLB150-5?
  A: The SLB150-5 is rated for 3/4 metric ton, equivalent to 1,650 lb.
• Q: What does the 5 ft standard lift specify?
  A: It identifies this SKU as the SLB150 configuration supplied with a 5 ft lift.
• Q: How many chain falls does the SLB150-5 have?
  A: It uses 1 chain fall.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 41 lb of pull to lift the rated load.
• Q: What size load chain does the SLB150 use?
  A: The SLB150 uses a 6 x 18 mm load chain with a listed chain weight of 0.5 lb per foot.
• Q: What is the minimum headroom?
  A: The manufacturer specifies 13 in minimum headroom for the SLB150.
• Q: Can the hoist be operated in tight spaces?
  A: Yes. The short handle and stroke allow 360° operation for rigging in tight spaces.
• Q: Does the SLB150-5 have an overload clutch?
  A: No separate overload-clutch option is identified for the SLB150 in the supplied manufacturer catalog, so an overload clutch should not be represented as included with this SKU.

Looking for more information about the Ingersoll Rand Hoist? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Hoists for your assembly application, please email info@intlairtool.com or call (800) 608-5210
