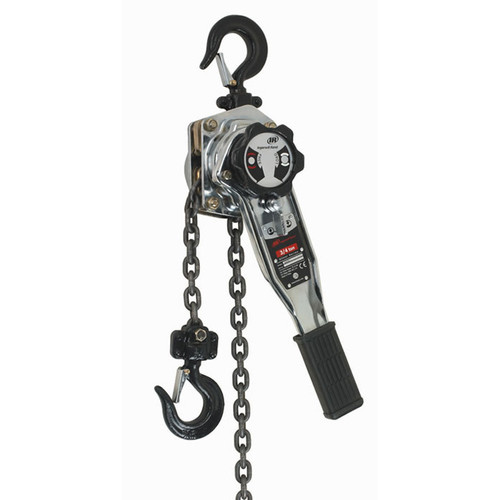

Built for controlled manual lifting and load positioning, the Ingersoll Rand SLB150-20 Silver Series Lever Chain Hoist provides a 3/4 metric ton (1,650 lb) rated capacity with a 20 ft standard lift and 1 chain fall. Its high-strength, all-stamped steel construction helps reduce weight while improving impact resistance, making the hoist suitable for demanding lifting and rigging applications.
The SLB150 uses a 6 x 18 mm premium-grade alloy load chain and requires 41 lb of pull to lift the rated load. Encased and retained roller bearings support efficient operation and easier maintenance, while double-reduction gearing provides controlled spotting and low handle effort. An automatic inertia brake engages if a load is applied while the hoist is in free-chain mode, helping minimize operator setup error. Its short handle and stroke also allow 360° operation for rigging in tight spaces. The manufacturer specifies a 20 ft lift as the ordering configuration for this SKU.
Type: Lever Chain Hoist | Series: Silver Series | Model: SLB150-20 | Capacity: 3/4 Metric Ton (1,650 lb) | Standard Lift: 20 ft | Chain Falls: 1 | Pull to Lift Rated Load: 41 lb | Load Chain Size: 6 x 18 mm | Load Chain Weight: 0.5 lb/ft | Minimum Headroom: 13 in
Features:
- High-strength, all-stamped steel construction provides decreased weight and better impact resistance.
- Open-frame design makes cleaning and inspection easier.
- Encased and retained roller bearings support efficient operation and ease of maintenance.
- Premium-grade alloy load chain provides the specified load-chain construction.
- Hardened swivel-latch hooks provide the specified hook configuration.
- Nickel- and chrome-plated exterior and zinc-plated frame components provide increased corrosion resistance.
- Double-reduction gearing provides superior spotting characteristics and low handle effort.
- Deep lug knobs facilitate one-handed operation with or without gloves.
- Short handle and stroke allow 360° operation for rigging in tight spaces.
- Automatic inertia brake engages if a load is applied in free-chain mode, helping minimize operator setup error.
- Silver Series lever chain hoists meet or exceed ANSI B30.21 standards according to the manufacturer catalog.
Applications:
- Manual load positioning — suitable for controlled lifting and positioning of loads within the 1,650 lb rated capacity.
- Maintenance and repair — useful for positioning equipment, components, and machinery where a manual lever hoist is appropriate.
- Confined-space rigging — the short handle and stroke allow 360° operation where operating space around the hoist is limited.
- Material handling — the 20 ft lift configuration provides additional vertical travel for applications requiring more lift than shorter configurations.
FAQs:
- Q: What is the capacity of the SLB150-20?
A: The SLB150 is rated for 3/4 metric ton, equivalent to 1,650 lb. - Q: What does the 20 ft standard lift mean?
A: It identifies the 20 ft lifting-length configuration of the SLB150 lever hoist. - Q: How many chain falls does the SLB150-20 have?
A: The SLB150 uses 1 chain fall. - Q: How much pull is required to lift the rated load?
A: The manufacturer specifies 41 lb of pull to lift the rated load. - Q: What load chain does this hoist use?
A: The SLB150 uses a 6 x 18 mm premium-grade alloy load chain weighing 0.5 lb per foot. - Q: What is the minimum headroom?
A: The Silver Series dimensional data lists 13 in minimum headroom for the SLB150. - Q: Can the hoist be operated in tight spaces?
A: Yes. The short handle and stroke allow 360° operation for rigging in tight spaces. - Q: Does the SLB150-20 have an overload clutch?
A: The supplied Silver Series catalog does not identify an overload clutch as a separate option for the SLB150. It should not be represented as an additional overload-clutch configuration for this SKU.
| SKU | CAPACITY | # FALLS | PULL TO LIFT RATED LOAD |
CHAIN SIZE MM |
CHAIN WEIGHT PER FOOT |
SHIPPING WEIGHT WITH 10' OF LIFT |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| LB | METRIC TONS | LB | KG | LB | KG | LB | KG | |||
| SLB150 | 1,650 | 0.75 | 1 | 41 | 18.6 | 6 x 18 | 0.5 | 0.2 | 16 | 7.3 |
| SLB200 | 2,200 | 1 | 1 | 60 | 27.3 | 6 x 18 | 0.5 | 0.2 | 16 | 7.3 |
| SLB300 | 3,300 | 1.50 | 1 | 53 | 24.1 | 7.1 x 21.2 | 0.7 | 0.3 | 26 | 11.8 |
| SLB600 | 6,600 | 3 | 1 | 53 | 24.1 | 10 x 30 | 1.5 | 0.7 | 46 | 20.9 |
| SLB1200 | 13,200 | 6 | 2 | 57 | 25.9 | 10 x 30 | 2.9 | 1.3 | 69 | 31.4 |
