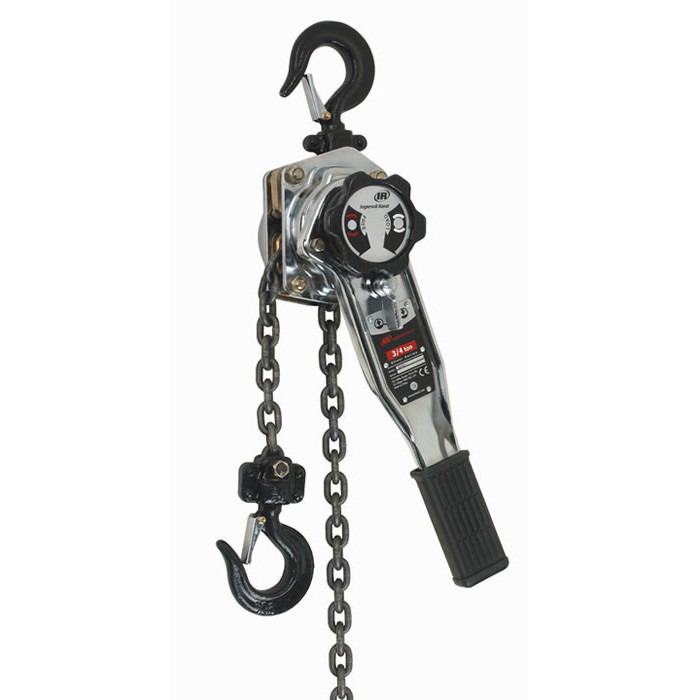

Ingersoll Rand SLB150-15 Silver Series Lever Chain Hoist | 15' Standard Lift | 3/4 (metric tons) Capacity | 1 Chain Falls

Built for controlled manual lifting and load positioning, the Ingersoll Rand SLB150-15 Silver Series Lever Chain Hoist provides a 3/4 metric ton (1,650 lb) rated capacity with a 15 ft standard lift and 1 chain fall. Its high-strength, all-stamped steel construction is designed to reduce weight while improving impact resistance, making this compact lever hoist suitable for demanding lifting and rigging applications.

The SLB150 uses a 6 x 18 mm premium-grade alloy load chain and requires 41 lb of pull to lift the rated load. Encased and retained roller bearings support efficient operation and easier maintenance, while double-reduction gearing provides controlled spotting and lower handle effort. An automatic inertia brake engages when a load is applied while the hoist is in free-chain mode, helping minimize operator setup error. The short handle and stroke also allow 360° operation for rigging in tight spaces. The manufacturer's catalog identifies the SLB150 as a 0.75-metric-ton, single-fall Silver Series lever hoist and provides lift-length ordering by base model and lift option.

Type: Lever Chain Hoist | Series: Silver Series | Model: SLB150-15 | Capacity: 3/4 Metric Ton (1,650 lb) | Standard Lift: 15 ft | Chain Falls: 1 | Pull to Lift Rated Load: 41 lb | Load Chain Size: 6 x 18 mm | Chain Weight: 0.5 lb/ft | Minimum Headroom: 13 in

Features:

• High-strength, all-stamped steel construction helps reduce weight while providing better impact resistance.
• Open-frame design makes cleaning and inspection easier.
• Encased and retained roller bearings support efficient operation and ease of maintenance.
• Premium-grade alloy load chain provides the specified load-chain construction.
• Hardened swivel-latch hooks provide secure hook engagement during lifting operations.
• Nickel- and chrome-plated exterior and zinc-plated frame components provide increased corrosion resistance.
• Double-reduction gearing provides controlled spotting characteristics and lower handle effort.
• Deep lug knobs support one-handed operation with or without gloves.
• Short handle and stroke allow 360° operation for rigging in tight spaces.
• Automatic inertia brake engages if a load is applied while the hoist is in free-chain mode, helping minimize operator setup error.
• Silver Series lever chain hoists meet or exceed ANSI B30.21 requirements according to the manufacturer catalog.

Applications:

• Manual load positioning — suitable for controlled lifting and positioning of loads within the 1,650 lb rated capacity.
• Maintenance and repair — useful for positioning equipment, components, and machinery where a manual lever hoist is appropriate.
• Rigging in confined areas — the short handle and stroke allow 360° operation where operating space is limited.
• General material handling — provides a 15 ft lifting configuration for applications requiring additional lift beyond the standard 10 ft configuration.

FAQs:

• Q: What is the capacity of the SLB150-15?
  A: The SLB150 is rated for 3/4 metric ton, equivalent to 1,650 lb.
• Q: What does the 15 ft standard lift specify?
  A: It identifies the lifting-length configuration of this SLB150 hoist as 15 ft.
• Q: How many chain falls does the SLB150-15 have?
  A: The SLB150 uses 1 chain fall.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 41 lb of pull to lift the rated load.
• Q: What load chain does the SLB150 use?
  A: The SLB150 uses a 6 x 18 mm premium-grade alloy load chain with a listed weight of 0.5 lb per foot.
• Q: What is the minimum headroom?
  A: The Silver Series dimensional data lists 13 in minimum headroom for the SLB150.
• Q: Can this hoist be operated in confined spaces?
  A: Yes. The manufacturer specifies a short handle and stroke that allow 360° operation for rigging in tight spaces.
• Q: Does the SLB150-15 have an overload clutch?
  A: The supplied manufacturer catalog does not identify an overload clutch as a standard SLB150 feature. It should not be represented as included unless separately confirmed for this SKU.
