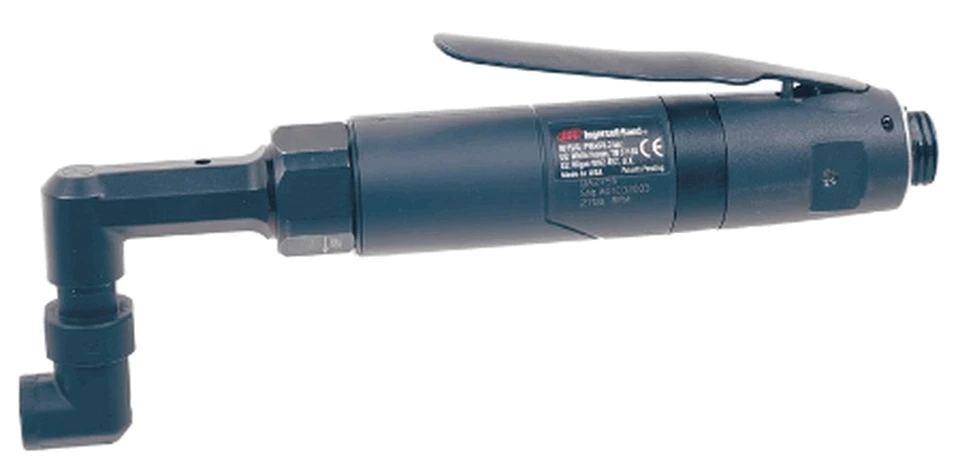

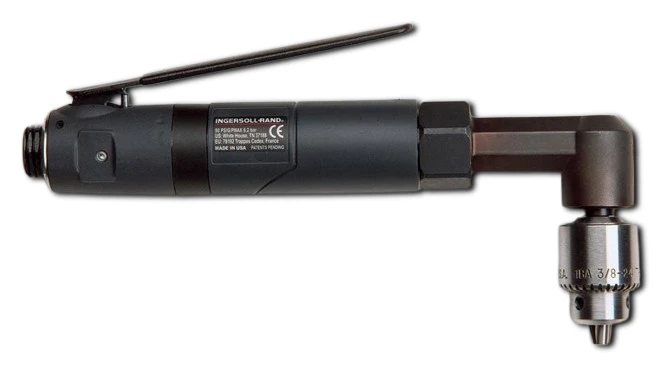

Ingersoll Rand QA2754D Air Production Angle Drill | Q2 Series | 0.28 HP | 2,700 RPM | 17 (in-lbs) Max Torque | Lever Start

Built for precision drilling and repetitive assembly operations, the Ingersoll Rand QA2754D Air Production Angle Drill combines a compact small angle head, 2,700 RPM free speed, and 17 in-lb maximum torque to deliver accurate drilling performance in confined production environments. Its 90-degree angle head (allowing the tool to access restricted areas where inline drills cannot operate) provides excellent maneuverability around machinery, fixtures, and structural assemblies while maintaining the speed required for high-volume manufacturing.

Part of the Ingersoll Rand Q2 Series production drilling tools, the QA2754D is built to provide dependable pneumatic performance during continuous industrial use. The high free speed supports efficient drilling of smaller holes, while the controlled torque output helps improve drilling accuracy on precision components. Its lightweight angle-head configuration helps reduce operator fatigue during extended production shifts, making it well suited for manufacturing environments where consistency and accessibility are essential.

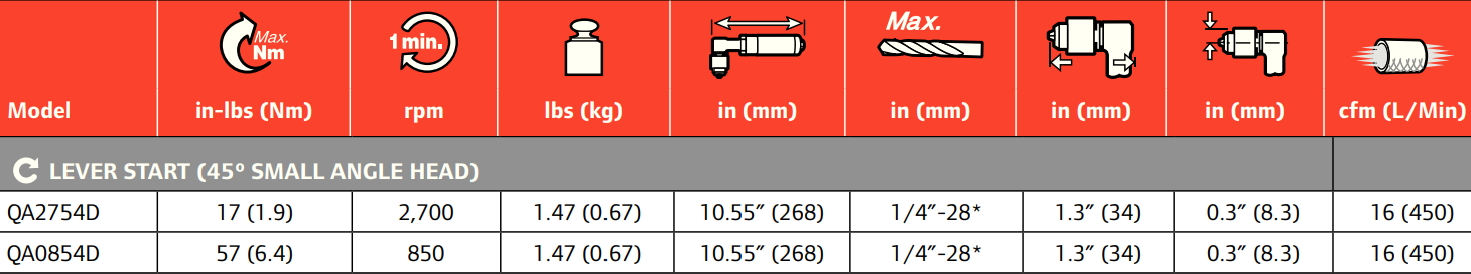

Type: Air Production Angle Drill | Series: Q2 Series | Model: QA2754D | Head Configuration: Small Angle Head | Maximum Torque: 17 in-lb | Free Speed: 2,700 RPM | Power Source: Pneumatic

Features:

• Compact small angle head provides excellent access inside restricted workspaces and complex assemblies.
• 2,700 RPM free speed supports fast, efficient drilling during repetitive production operations.
• 17 in-lb maximum torque provides controlled drilling performance for light-duty precision applications.
• 90-degree angle head allows drilling where conventional inline tools cannot be positioned effectively.
• Pneumatic motor delivers consistent performance for continuous industrial manufacturing environments.
• Lightweight construction helps reduce operator fatigue throughout extended production shifts.
• Designed for dependable operation in repetitive drilling, fabrication, and assembly applications.
• Suitable for manufacturing environments requiring high-speed drilling with precise control.

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Applications:

• Aircraft and aerospace manufacturing requiring precision drilling in confined structural assemblies.
• Production assembly lines performing repetitive drilling of small-diameter holes.
• Electronic equipment, machinery, and enclosure assembly where limited clearance exists.
• Metal fabrication operations requiring high-speed drilling in difficult-to-reach locations.
• Industrial maintenance departments servicing equipment with restricted access.

FAQs:

• Q: Why is the QA2754D rated at 2,700 RPM?
  A: The higher operating speed allows faster drilling of smaller holes, making it suitable for repetitive production applications where productivity and drilling accuracy are important.
• Q: What advantage does the small angle head provide?
  A: The compact 90-degree head enables drilling in confined areas that cannot be accessed with a standard inline drill.
• Q: Is the QA2754D intended for production manufacturing?
  A: Yes. It is part of the Ingersoll Rand Q2 Series, which is designed for repetitive industrial drilling and assembly operations.
• Q: Is this drill suitable for heavy-duty drilling?
  A: No. With a maximum torque rating of 17 in-lb, the QA2754D is intended for precision drilling and light-duty production applications rather than high-torque drilling tasks.

Looking for more information about the Ingersoll Rand Angle Drill? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Angle Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
