Ingersoll Rand PT005-8 Standard PT Series Push Hook-On Trolley provides a 0.50 metric ton (1,100 lb) capacity for manually moving compatible hoists and suspended loads along overhead beams. Its 2.6–8 in. flange adjustment accommodates a range of compatible beam widths, while the 36 in. minimum curve radius allows the trolley to travel through curved beam sections within the specified limit. The push hook-on configuration provides manual trolley travel without a separate drive mechanism.
The PT005-8 uses cast iron wheels with a universal tread for flat or tapered beams, sealed, lubricated-for-life ball bearings for rolling support, and cold-formed steel side plates with rail sweeps and drop stops. Its 5:1 design factor permits use with both manual and powered hoists. The trolley has a 4 in. minimum beam height and a listed 19.7 lb weight, making it a compact option for compatible overhead lifting systems.
Type: Push Hook-On Trolley | Series: PT Series | Model: PT005-8 | Capacity: 0.50 Metric Ton (1,100 lb) | Flange Adjustment: 2.6–8 in. | Minimum Beam Height: 4 in. | Minimum Curve Radius: 36 in. | Wheel Type: Cast Iron | Design Factor: 5:1 | Weight: 19.7 lb
Features:
- The 5:1 design factor permits the PT Series to be used with both manual and powered hoists.
- Cold-formed steel side plates provide strength, durability, and even load distribution.
- Rail sweeps and drop stops are incorporated into the side-plate construction.
- Rivet-locked wheel axles resist loosening during trolley operation.
- Cast iron wheels use a universal tread for compatibility with flat or tapered beams.
- Sealed, lubricated-for-life ball bearings provide smoother rolling with less maintenance.
- Wide hanger shaft assemblies accommodate compatible I-beams, H-beams, and patented track beams up to approximately 8.06 in. / 205 mm wide.
- The hanger shaft accepts hoists from different brands and accommodates round or squared hook shapes.
- Shaft extension kits are available separately for compatible standard trolleys requiring an 8–13 in. flange adjustment.
Made in USA:
Applications:
- Industrial material handling — manually positioning compatible loads along overhead beam systems.
- Maintenance and MRO — suspending and moving compatible manual or powered hoists for equipment service work.
- Fabrication and workshops — providing manually controlled trolley travel for compatible lifting equipment.
- Manufacturing facilities — moving suspended components and materials along suitable I-beams, H-beams, or patented track beams.
- Overhead lifting systems — pairing the trolley with a compatible hoist where a 1,100 lb capacity and 2.6–8 in. beam flange range are suitable.
FAQs:
- Q: What is the capacity of the PT005-8?
A: The PT005-8 is rated for 0.50 metric ton, equivalent to 1,100 lb. - Q: What beam flange width can the PT005-8 accommodate?
A: The standard PT005-8 has a 2.6–8 in. flange adjustment range. - Q: What type of wheels does the standard PT005-8 use?
A: The standard PT005-8 uses cast iron wheels with a universal tread suitable for flat or tapered beams. - Q: Can the PT005-8 be used with a powered hoist?
A: Yes. The PT Series has a 5:1 design factor and is specified for use with both manual and powered hoists. - Q: What is the minimum curve radius for this trolley?
A: The minimum specified curve radius is 36 in. - Q: What is the minimum beam height?
A: The minimum specified beam height is 4 in.

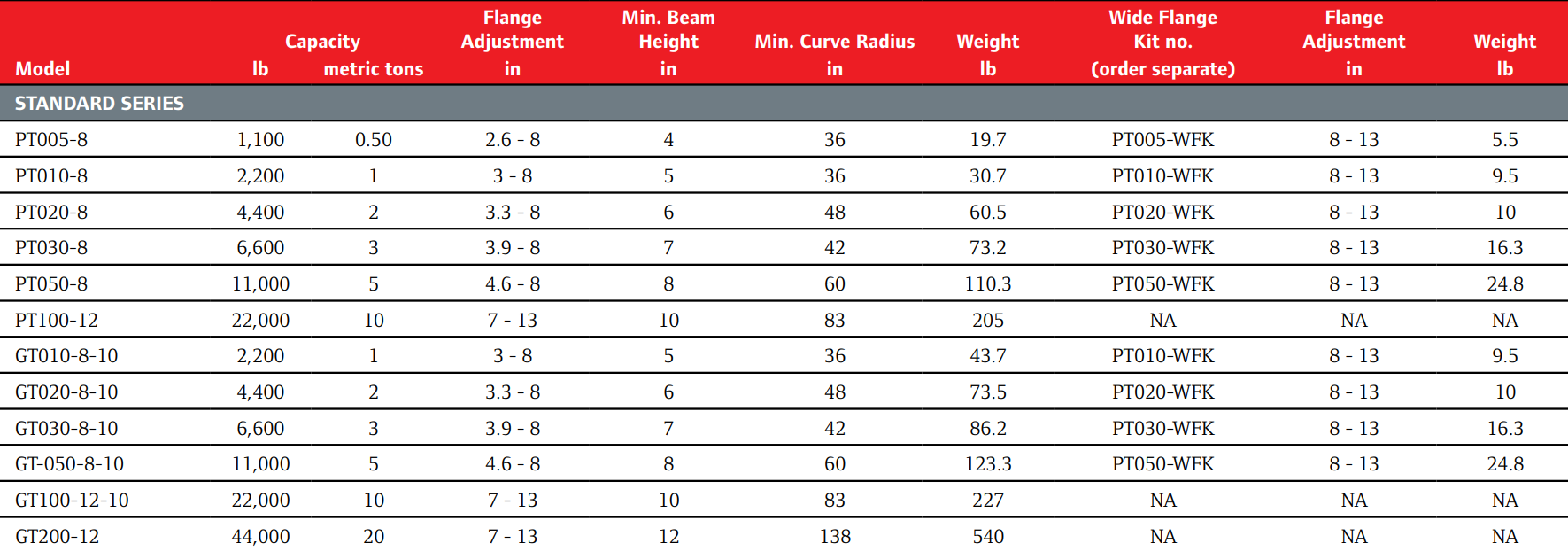

| SKU | CAPACITY | FLANGE ADJUSTMENT IN |
MIN. BEAM HEIGHT IN |
MIN. CURVE RADIUS IN |
WEIGHT LB |
WIDE FLANGE KIT NO. (ORDER SEPARATE) |
FLANGE ADJUSTMENT IN |
WEIGHT LB |
|
|---|---|---|---|---|---|---|---|---|---|
| LB | METRIC TONS | ||||||||
| STANDARD SERIES | |||||||||
| PT005-8 | 1,100 | 0.50 | 2.6 - 8 | 4 | 36 | 19.7 | PT005-WFK | 8 - 13 | 5.5 |
| PT010-8 | 2,200 | 1 | 3 - 8 | 5 | 36 | 30.7 | PT010-WFK | 8 - 13 | 9.5 |
| PT020-8 | 4,400 | 2 | 3.3 - 8 | 6 | 48 | 60.5 | PT020-WFK | 8 - 13 | 10 |
| PT030-8 | 6,600 | 3 | 3.9 - 8 | 7 | 42 | 73.2 | PT030-WFK | 8 - 13 | 16.3 |
| PT050-8 | 11,000 | 5 | 4.6 - 8 | 8 | 60 | 110.3 | PT050-WFK | 8 - 13 | 24.8 |
| PT100-12 | 22,000 | 10 | 7 - 13 | 10 | 83 | 205 | NA | NA | NA |
| GT010-8-10 | 2,200 | 1 | 3 - 8 | 5 | 36 | 43.7 | PT010-WFK | 8 - 13 | 9.5 |
| GT020-8-10 | 4,400 | 2 | 3.3 - 8 | 6 | 48 | 73.5 | PT020-WFK | 8 - 13 | 10 |
| GT030-8-10 | 6,600 | 3 | 3.9 - 8 | 7 | 42 | 86.2 | PT030-WFK | 8 - 13 | 16.3 |
| GT-050-8-10 | 11,000 | 5 | 4.6 - 8 | 8 | 60 | 123.3 | PT050-WFK | 8 - 13 | 24.8 |
| GT100-12-10 | 22,000 | 10 | 7 - 13 | 10 | 83 | 227 | NA | NA | NA |
| GT200-12 | 44,000 | 20 | 7 - 13 | 12 | 138 | 540 | NA | NA | NA |
Looking for more information about Ingersoll Rand Push Trolley? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Push Trolleys for your assembly application, call (800) 608-5210 or email info@intlairtool.com
