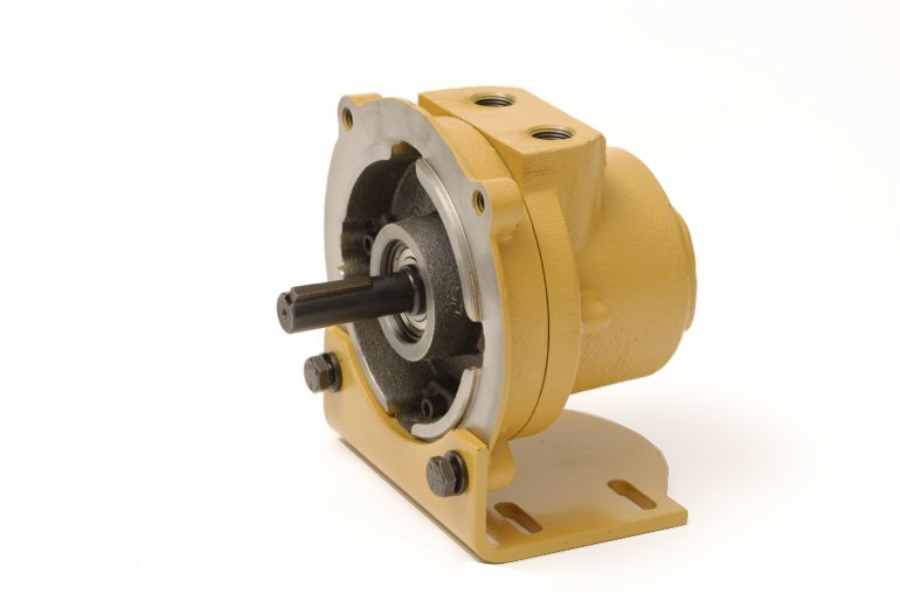

Ingersoll Rand MVA017B Multi-Vane Reversible Air Motor | Direct Drive | 1.93 HP | 5,450 RPM | 4.5 (lb-ft) Starting Torque | 7 (lb-ft) Stall Torque

Ingersoll Rand MVA017B Multi-Vane Reversible Air Motor is designed to provide dependable pneumatic power for industrial machinery, automated equipment, material handling systems, conveyors, mixers, and OEM applications. Featuring a direct drive configuration, 1.93 HP output, and a free speed of 5,450 RPM, this compact air motor delivers an excellent combination of speed and torque for continuous-duty industrial operation. Its reversible rotation enables quick directional changes, making it well suited for applications requiring bidirectional shaft movement without additional mechanical complexity.

Built with Ingersoll Rand's multi-vane pneumatic motor design, the MVA017B develops 4.5 lb-ft of starting torque and up to 7.0 lb-ft of stall torque, providing consistent startup performance and dependable torque under varying load conditions. Pneumatic air motors are well suited for harsh industrial environments because they can safely stall without damage when operated according to manufacturer recommendations, making them ideal for demanding production and automation systems.

Type: Multi-Vane Reversible Air Motor | Drive Type: Direct Drive | Power: 1.93 HP | Free Speed: 5,450 RPM | Rotation: Reversible | Starting Torque: 4.5 lb-ft | Stall Torque: 7.0 lb-ft

Features:

• Direct drive configuration delivers efficient power transfer without integrated gear reduction.
• Multi-vane air motor provides smooth, reliable pneumatic performance across a wide operating range.
• Reversible rotation supports applications requiring clockwise and counterclockwise operation.
• 1.93 HP output is suitable for continuous-duty industrial machinery and automation equipment.
• High free speed of 5,450 RPM provides efficient rotary power for high-speed applications.
• Air motor design can safely stall without damage when operated according to manufacturer recommendations.

Made in USA:

Applications:

• Industrial mixers, agitators, and blending systems.
• Conveyor drives and material handling equipment.
• Packaging, winding, and indexing machinery.
• OEM equipment requiring compact reversible pneumatic power.
• Manufacturing environments where compressed air is the preferred power source.

FAQs:

• Q: What is the advantage of a reversible air motor?
  A: A reversible air motor allows the output shaft to rotate in both directions, making it suitable for equipment requiring bidirectional motion.
• Q: What does direct drive mean?
  A: Direct drive indicates the motor's output shaft is driven directly without an internal gear reduction, providing higher output speed and simplified power transmission.
• Q: What is the difference between starting torque and stall torque?
  A: Starting torque is the torque available when the motor begins rotating from rest, while stall torque is the maximum torque the motor develops when the shaft is prevented from turning.
• Q: Is this air motor suitable for continuous-duty operation?
  A: Yes. The multi-vane pneumatic design is intended for continuous industrial service and can safely stall without damage when operated according to manufacturer recommendations.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
