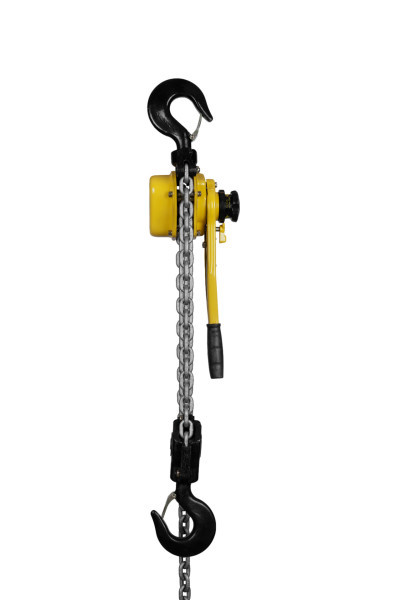

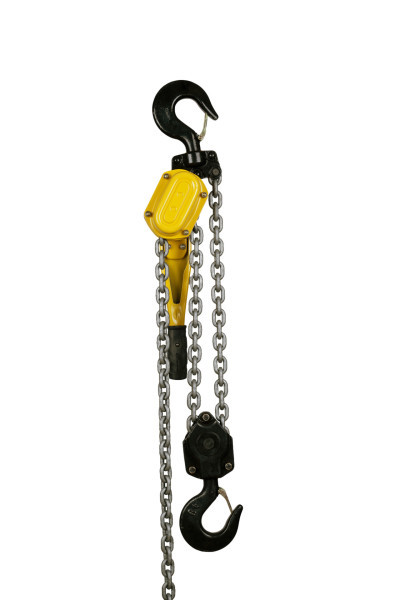

Ingersoll Rand KL900V KL Kinetic Series Lever Chain Hoist | 9 Ton Capacity | 3 Chain Falls | Overload Protection

For high-capacity manual lifting, pulling, positioning, tensioning, and rigging, the Ingersoll Rand KL900V Kinetic Series Lever Chain Hoist provides a 9 metric ton (19,800 lb) rated capacity with 3 chain falls and the V overload-protection option. The three-chain-fall configuration corresponds to the KL900's 9 metric ton capacity, while full bearing construction on the load sprocket and pinion shaft reduces chain pull effort. Its compact design is suited to applications where available operating space is limited.

The KL900 requires 88.1 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 4.43 lb per foot. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc are specified for the Kinetic Series. The V designation identifies the overload-protection option. No specific lift length is included in the base KL900V designation; lift length is selected separately through the manufacturer's ordering format.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL900V | Capacity: 9 Metric Tons (19,800 lb) | Lift: Not Specified on Base Model | Chain Falls: 3 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 88.1 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 4.43 lb/ft | Shipping Weight with 10' of Lift: 102.5 lb

Features:

• Overload clutch provides the overload-protection option identified by the V designation.
• Three chain falls provide the specified lifting configuration for the 9 metric ton capacity.
• Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer life.
• Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
• Heavy-duty cast hook latches are designed for less latch replacement.
• Corrosion-resistant finish provides additional durability.
• Ergonomic handle grip helps reduce fatigue during manual operation.
• Fused brake disc provides exceptional long brake life.
• Compact design accommodates applications where available operating space is limited.
• CE certified; hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.

Applications:

• Industrial maintenance and MRO — manually lifting and positioning compatible machinery, equipment, and large components within the 19,800 lb rated capacity.
• Heavy-load rigging and material handling — positioning compatible loads where a 9 metric ton manual lever hoist is required.
• Fabrication and manufacturing — handling large assemblies where the KL900 capacity and three-chain-fall configuration are appropriate.
• Construction and field service — lifting compatible loads where portable manual lifting equipment is required.
• Applications requiring overload protection — the V configuration adds the manufacturer's overload-clutch option to the KL900.
• Restricted-space lifting — the compact Kinetic Series design accommodates applications where available operating space is limited.

FAQs:

• Q: What is the capacity of the KL900V?
  A: The KL900V is rated for 9 metric tons, equivalent to 19,800 lb.
• Q: What does the V designation mean?
  A: V identifies the overload-protection option. For the Kinetic Series, this option is an overload clutch.
• Q: Does the KL900V include overload protection?
  A: Yes. The V designation specifies the overload clutch option for this configuration.
• Q: How many chain falls does the KL900V have?
  A: The KL900V uses 3 chain falls. Ingersoll Rand specifies three falls for the 9 metric ton KL900 capacity.
• Q: Does the KL900V specify a lift length?
  A: No. KL900V identifies the 9 metric ton KL900 with the overload-clutch option. A specific lift length is selected separately.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 88.1 lb of pull to lift the rated 19,800 lb load.
• Q: What type of chain does the KL900V use?
  A: It uses premium-grade 100 electro-galvanized load chain with a listed weight of 4.43 lb per foot.
