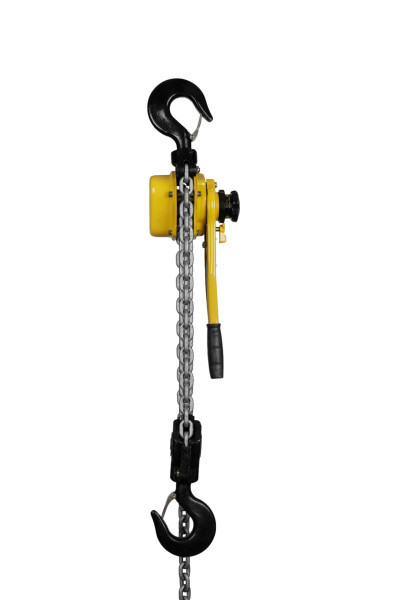

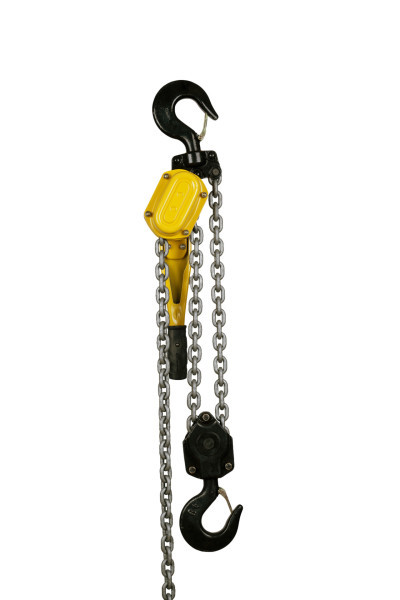

For high-capacity manual lifting, pulling, positioning, tensioning, and rigging, the Ingersoll Rand KL900V-20 Kinetic Series Lever Chain Hoist combines a 9 metric ton (19,800 lb) rated capacity with a 20 ft lift, 3 chain falls, and overload protection. The three-chain-fall configuration is specified for the KL900, while full bearing construction on the load sprocket and pinion shaft is intended to reduce pull effort. Its compact design is suited to lifting work where operating space is limited.
The KL900 requires 88.1 lb of pull to lift the rated load and uses Premium Grade 100 Electro-Galvanized chain weighing 4.43 lb per foot. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc are specified features of the Kinetic Series. The V option identifies the overload clutch, while the 20 ft suffix identifies the selected lift length. The catalog's 102.5 lb shipping weight is specified for the KL900 with 10 ft of lift and is not presented as the shipping weight for this 20 ft configuration.
Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL900V-20 | Capacity: 9 Metric Tons (19,800 lb) | Lift: 20 ft | Chain Falls: 3 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 88.1 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 4.43 lb/ft | Shipping Weight: Not Specified for 20' Lift
Features:
- Overload protection is provided through the optional overload clutch identified by the V designation.
- Three chain falls provide the specified lifting configuration for the 9 metric ton capacity.
- Full bearing construction on the load sprocket and pinion shaft helps reduce chain pull effort and supports longer life.
- Premium Grade 100 Electro-Galvanized chain is specified for exceptional corrosion resistance and increased durability.
- Heavy-duty cast hook latches are designed for less latch replacement.
- Corrosion-resistant finish provides additional durability.
- Ergonomic handle grip helps reduce fatigue during manual operation.
- Fused brake disc is specified for exceptional long brake life.
- Compact design accommodates applications where available operating space is limited.
- CE certified; the manufacturer states that the hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.
Applications:
- Industrial maintenance and MRO — lifting and positioning compatible machinery, equipment, and large components within the 19,800 lb rated capacity.
- Heavy-load rigging and material handling — positioning compatible loads where a 9 metric ton manual lever chain hoist is required.
- Fabrication and manufacturing — handling large assemblies where the 20 ft lift provides the required vertical travel.
- Construction and field service — manually lifting compatible loads where the specified capacity and lift are required.
- Extended-lift positioning — using the 20 ft configuration when greater vertical travel is needed.
- Restricted-space lifting — taking advantage of the compact Kinetic Series configuration in areas with limited operating space.
FAQs:
- Q: What is the capacity of the KL900V-20?
A: The KL900V-20 is rated for 9 metric tons, equivalent to 19,800 lb. - Q: What does the 20 ft designation mean?
A: It identifies the selected 20 ft lift configuration of the KL900 lever chain hoist. - Q: What does the V designation mean?
A: V identifies the overload-protection option. On the Kinetic Series, this option is an overload clutch. - Q: Does the KL900V-20 include overload protection?
A: Yes. The V designation identifies the overload clutch option for this configuration. - Q: Why does the KL900V-20 use 3 chain falls?
A: Ingersoll Rand specifies 3 chain falls for the 9 metric ton KL900 capacity. - Q: How much pull is required to lift the rated load?
A: The catalog specifies 88.1 lb of pull to lift the rated 19,800 lb load. - Q: What type of load chain is used?
A: The KL900 uses Premium Grade 100 Electro-Galvanized chain with a listed weight of 4.43 lb per foot. - Q: Is the published 102.5 lb shipping weight the weight of the KL900V-20?
A: No. The catalog's 102.5 lb shipping weight is listed for the KL900 with 10 ft of lift. A separate shipping weight for the 20 ft configuration is not provided.
| SKU | CAPACITY | NUMBER OF FALLS | PULL TO LIFT RATED LOAD | CHAIN WEIGHT | SHIPPING WEIGHT WITH 10' OF LIFT | ||||
|---|---|---|---|---|---|---|---|---|---|
| LBS | METRIC TONS | LB | KG | LB/FT | KG/FT | LB | KG | ||
| KL075 | 1,650 | 0.75 | 1 | 48.3 | 21.9 | 0.47 | 0.21 | 13.4 | 6.1 |
| KL100 | 2,200 | 1 | 1 | 66.1 | 30 | 0.47 | 0.21 | 13.9 | 6.3 |
| KL150 | 3,300 | 1.5 | 1 | 68.1 | 30.9 | 0.74 | 0.34 | 18.7 | 8.5 |
| KL300 | 6,600 | 3 | 1 | 83.6 | 37.9 | 1.48 | 0.67 | 31.3 | 14.2 |
| KL600 | 13,200 | 6 | 2 | 85.9 | 39 | 2.95 | 1.34 | 58.6 | 26.6 |
| KL900 | 19,800 | 9 | 3 | 88.1 | 40 | 4.43 | 2.01 | 102.5 | 46.5 |
Looking for more information about the Ingersoll Rand Hoist? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Hoists for your assembly application, please email info@intlairtool.com or call (800) 608-5210
