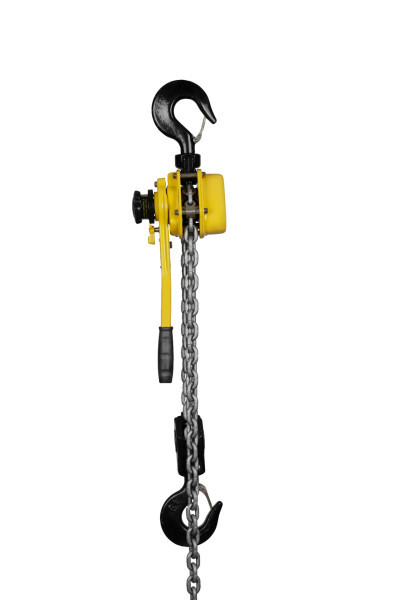

For high-capacity manual lifting, pulling, positioning, tensioning, and rigging, the Ingersoll Rand KL900V-10 Kinetic Series Lever Chain Hoist provides a 9 metric ton (19,800 lb) rated capacity with a 10 ft lift, 3 chain falls, and overload protection. The three-chain-fall configuration is specified for the KL900's 9 metric ton capacity, while full bearing construction on the load sprocket and pinion shaft helps reduce chain pull effort. Its compact design accommodates applications where available operating space is limited.
The KL900 requires 88.1 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 4.43 lb per foot. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc support manual operation. The V designation identifies the overload-protection option, while the 10 ft suffix specifies the selected lift length. The catalog lists a 102.5 lb shipping weight with 10 ft of lift for the KL900 configuration.
Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL900V-10 | Capacity: 9 Metric Tons (19,800 lb) | Lift: 10 ft | Chain Falls: 3 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 88.1 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 4.43 lb/ft | Shipping Weight with 10' of Lift: 102.5 lb
Features:
- Overload clutch provides the overload-protection option identified by the V designation.
- Three chain falls provide the specified lifting configuration for the 9 metric ton capacity.
- Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer service life.
- Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
- Heavy-duty cast hook latches are designed for less latch replacement.
- Corrosion-resistant finish provides additional durability.
- Ergonomic handle grip helps reduce fatigue during manual operation.
- Fused brake disc provides exceptional long brake life.
- Compact design accommodates applications where available operating space is limited.
- CE certified; the manufacturer states that the hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.
Applications:
- Industrial maintenance and MRO — manually lifting and positioning compatible machinery, equipment, and large components within the 19,800 lb rated capacity.
- Heavy-load rigging and material handling — positioning compatible loads where a 9 metric ton manual lever hoist is required.
- Fabrication and manufacturing — handling large assemblies where the 10 ft lift and three-chain-fall configuration are appropriate.
- Construction and field service — lifting compatible loads where portable manual lifting equipment is required.
- 10 ft lift applications — providing the specified vertical travel for jobs requiring the listed lift length.
- Overload-protected lifting applications — using the V configuration where the manufacturer's overload-clutch option is required.
- Restricted-space lifting — the compact Kinetic Series design accommodates applications where operating space is limited.
FAQs:
- Q: What is the capacity of the KL900V-10?
A: The KL900V-10 is rated for 9 metric tons, equivalent to 19,800 lb. - Q: What does the 10 ft lift specify?
A: The 10 ft designation identifies the selected lift length for this KL900 lever chain hoist. - Q: What does the V designation mean?
A: V identifies the overload-protection option. For the Kinetic Series, this option is an overload clutch. - Q: Does the KL900V-10 include overload protection?
A: Yes. The V designation specifies the overload clutch option for this configuration. - Q: Why does the KL900V-10 use 3 chain falls?
A: Ingersoll Rand specifies 3 chain falls for the 9 metric ton KL900 capacity. - Q: How much pull is required to lift the rated load?
A: The manufacturer specifies 88.1 lb of pull to lift the rated 19,800 lb load. - Q: What type of chain does the KL900V-10 use?
A: It uses premium-grade 100 electro-galvanized load chain with a listed weight of 4.43 lb per foot. - Q: What is the shipping weight of the KL900V-10?
A: The catalog lists a 102.5 lb shipping weight with 10 ft of lift, matching this SKU's 10 ft configuration.
| SKU | CAPACITY | NUMBER OF FALLS | PULL TO LIFT RATED LOAD | CHAIN WEIGHT | SHIPPING WEIGHT WITH 10' OF LIFT | ||||
|---|---|---|---|---|---|---|---|---|---|
| LBS | METRIC TONS | LB | KG | LB/FT | KG/FT | LB | KG | ||
| KL075 | 1,650 | 0.75 | 1 | 48.3 | 21.9 | 0.47 | 0.21 | 13.4 | 6.1 |
| KL100 | 2,200 | 1 | 1 | 66.1 | 30 | 0.47 | 0.21 | 13.9 | 6.3 |
| KL150 | 3,300 | 1.5 | 1 | 68.1 | 30.9 | 0.74 | 0.34 | 18.7 | 8.5 |
| KL300 | 6,600 | 3 | 1 | 83.6 | 37.9 | 1.48 | 0.67 | 31.3 | 14.2 |
| KL600 | 13,200 | 6 | 2 | 85.9 | 39 | 2.95 | 1.34 | 58.6 | 26.6 |
| KL900 | 19,800 | 9 | 3 | 88.1 | 40 | 4.43 | 2.01 | 102.5 | 46.5 |
