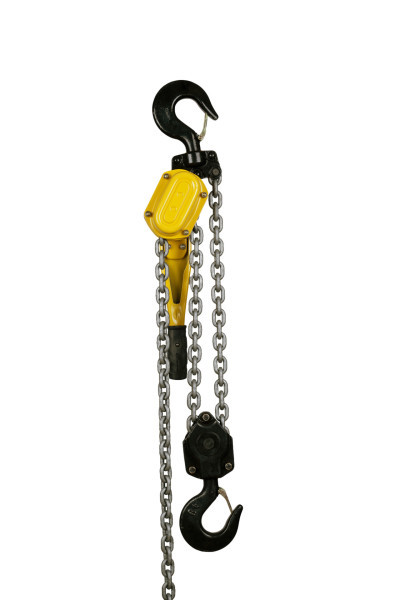

Ingersoll Rand KL900 KL Kinetic Series Lever Chain Hoist | 9 Ton Capacity | 3 Chain Falls

Designed for high-capacity manual lifting, pulling, positioning, tensioning, and rigging, the Ingersoll Rand KL900 Kinetic Series Lever Chain Hoist provides a 9 metric ton (19,800 lb) rated capacity with 3 chain falls. The three-chain-fall configuration is specified for the KL900's 9 metric ton capacity, while full bearing construction on the load sprocket and pinion shaft helps reduce chain pull effort and support longer service life. Its compact design is intended for applications where available operating space is limited.

The KL900 requires 88.1 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 4.43 lb per foot. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc are part of the Kinetic Series design. The base KL900 model does not specify a lift length; lift is selected separately through the manufacturer's ordering format. The manufacturer states that the overload clutch is optional on all capacities.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL900 | Capacity: 9 Metric Tons (19,800 lb) | Lift: Not Specified on Base Model | Chain Falls: 3 | Overload Protection: Optional Overload Clutch | Pull to Lift Rated Load: 88.1 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 4.43 lb/ft | Shipping Weight with 10' of Lift: 102.5 lb

Features:

• Three chain falls provide the specified lifting configuration for the 9 metric ton capacity.
• Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer life.
• Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
• Heavy-duty cast hook latches are designed for less latch replacement.
• Corrosion-resistant finish provides additional durability.
• Ergonomic handle grip helps reduce fatigue during manual operation.
• Fused brake disc provides exceptional long brake life.
• Compact design accommodates applications where available operating space is limited.
• CE certified; the manufacturer states that the hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.

Applications:

• Industrial maintenance and MRO — manually lifting and positioning compatible machinery, equipment, and components within the 19,800 lb rated capacity.
• Heavy-duty rigging and material handling — positioning compatible loads where a 9 metric ton manual lever hoist is required.
• Fabrication and shop work — handling large components where the KL900's high capacity and three-chain-fall configuration are appropriate.
• Construction and field service — lifting compatible loads where portable manual lifting equipment is required.
• High-capacity load positioning — providing the specified 9 metric ton capacity for compatible manual lifting applications.
• Restricted-space lifting — the compact Kinetic Series design accommodates applications where available operating space is limited.

FAQs:

• Q: What is the capacity of the KL900?
  A: The KL900 is rated for 9 metric tons, equivalent to 19,800 lb.
• Q: How many chain falls does the KL900 have?
  A: The KL900 uses 3 chain falls. The manufacturer specifies three falls for the 9 metric ton model.
• Q: Does the KL900 include a specific lift length?
  A: No specific lift length is included in the base KL900 model designation. Lift length is selected separately through the manufacturer's ordering format.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 88.1 lb of pull to lift the rated 19,800 lb load.
• Q: What type of chain does the KL900 use?
  A: It uses premium-grade 100 electro-galvanized load chain with a listed weight of 4.43 lb per foot.
• Q: Does the KL900 include overload protection?
  A: No. The manufacturer identifies the overload clutch as optional on all capacities. Because the base KL900 model does not include the V option, overload protection has not been represented as included.
• Q: What is the shipping weight of the KL900?
  A: The manufacturer lists 102.5 lb shipping weight with 10 ft of lift.
