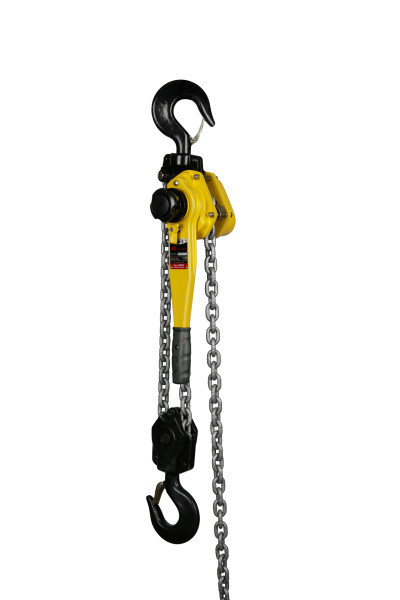

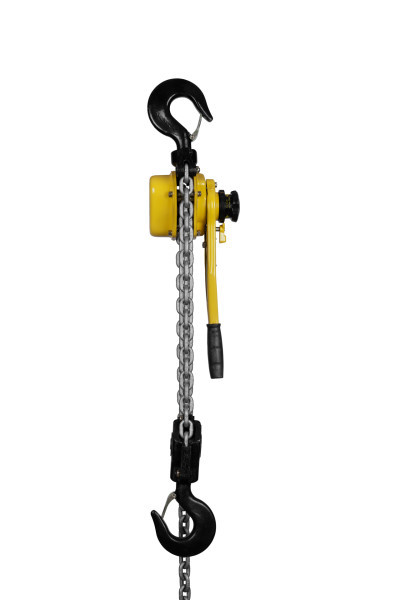

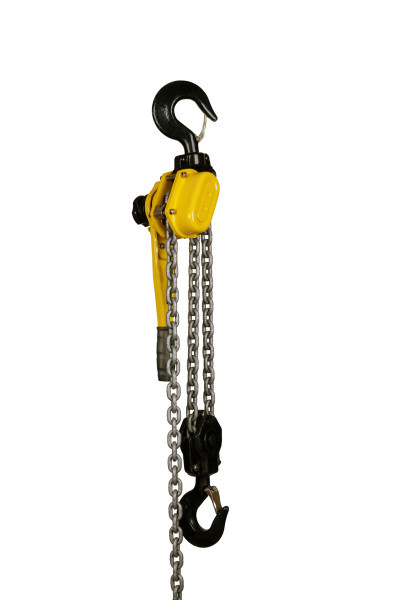

Ingersoll Rand KL600V KL Kinetic Series Lever Chain Hoist | 6 Ton Capacity | 2 Chain Falls | Overload Protection

Built for higher-capacity manual lifting, pulling, positioning, tensioning, and rigging, the Ingersoll Rand KL600V Kinetic Series Lever Chain Hoist provides a 6 metric ton (13,200 lb) rated capacity with 2 chain falls and the V overload-clutch option. The two-chain-fall configuration is specified for the 6-metric-ton KL600, while full-bearing construction on the load sprocket and pinion shaft helps reduce pull effort. Its compact design also accommodates applications where available operating space is limited.

The KL600 requires 85.9 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 2.95 lb per foot. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc support manual operation. The V designation identifies the optional overload clutch. No specific lift length is included in the base KL600V model; lift length is selected separately through the Kinetic Series ordering format.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL600V | Capacity: 6 Metric Tons (13,200 lb) | Lift: Not Specified on Base Model | Chain Falls: 2 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 85.9 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 2.95 lb/ft | Shipping Weight with 10' of Lift: 58.6 lb

Features:

• Overload clutch provides the overload-protection option identified by the V designation.
• Two chain falls provide the specified lifting configuration for the 6 metric ton capacity.
• Full bearing construction on the load sprocket and pinion shaft reduces pull effort and supports longer service life.
• Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
• Heavy-duty cast hook latches are designed for less latch replacement.
• Corrosion-resistant finish provides additional durability.
• Ergonomic handle grip helps reduce fatigue during manual operation.
• Fused brake disc provides exceptional long brake life.
• Compact design accommodates applications where available operating space is limited.
• CE certified; the manufacturer states that the hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.

Applications:

• Industrial maintenance and MRO — manually lifting and positioning machinery, components, and equipment within the 13,200 lb rated capacity.
• Rigging and material handling — positioning compatible loads where a 6 metric ton manual lever hoist is required.
• Fabrication and shop work — handling larger components where the KL600 capacity and two-chain-fall configuration are appropriate.
• Construction and field service — lifting compatible loads where portable manual lifting equipment is required.
• Applications requiring overload protection — the V configuration adds the manufacturer's overload-clutch option to the KL600.
• Restricted-space lifting — the compact Kinetic Series design accommodates applications where operating space is limited.

FAQs:

• Q: What is the capacity of the KL600V?
  A: The KL600V is rated for 6 metric tons, equivalent to 13,200 lb.
• Q: What does the V designation mean?
  A: V identifies the overload-protection option. For the Kinetic Series, this option is an overload clutch.
• Q: Does the KL600V include overload protection?
  A: Yes. The V designation specifies the overload clutch option for this configuration.
• Q: How many chain falls does the KL600V have?
  A: The KL600V uses 2 chain falls. Ingersoll Rand specifies 2 chain falls for the 6 metric ton KL600 capacity.
• Q: Does the KL600V specify a lift length?
  A: No. KL600V identifies the 6 metric ton KL600 with the overload-clutch option. A specific lift length is selected separately.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 85.9 lb of pull to lift the rated 13,200 lb load.
• Q: What type of chain does the KL600V use?
  A: It uses premium-grade 100 electro-galvanized load chain with a listed weight of 2.95 lb per foot.
• Q: What is the listed shipping weight for the KL600V?
  A: The catalog lists 58.6 lb shipping weight with 10 ft of lift. Because the base KL600V does not specify a lift length, this is a 10 ft lift reference rather than a universal shipping weight for every configuration.
