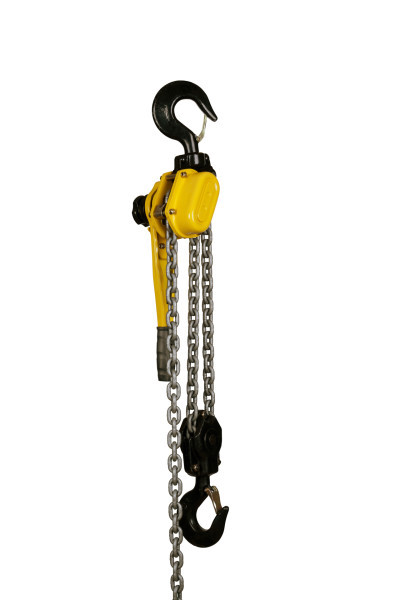

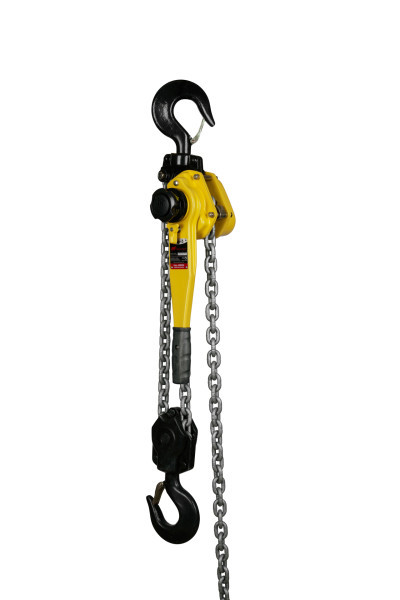

Designed for higher-capacity manual lifting, pulling, positioning, tensioning, and rigging, the Ingersoll Rand KL600V-15 Kinetic Series Lever Chain Hoist provides a 6 metric ton (13,200 lb) rated capacity with a 15 ft lift, 2 chain falls, and overload protection. The two-chain-fall configuration is specified for the 6 metric ton KL600, while full bearing construction on the load sprocket and pinion shaft helps reduce chain pull effort and support longer service life. Its compact design accommodates applications where available operating space is limited.
The KL600 requires 85.9 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 2.95 lb per foot. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc support manual operation. The V designation identifies the overload-protection option, while the 15 ft suffix specifies the selected lift length. The catalog's published shipping-weight figure is for a 10 ft lift and does not provide a separate shipping weight for the 15 ft configuration.
Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL600V-15 | Capacity: 6 Metric Tons (13,200 lb) | Lift: 15 ft | Chain Falls: 2 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 85.9 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 2.95 lb/ft | Shipping Weight: Not Specified for 15' Lift
Features:
- Overload clutch provides the overload-protection option identified by the V designation.
- Two chain falls provide the specified lifting configuration for the 6 metric ton capacity.
- Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer service life.
- Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
- Heavy-duty cast hook latches are designed for less latch replacement.
- Corrosion-resistant finish provides additional durability.
- Ergonomic handle grip helps reduce fatigue during manual operation.
- Fused brake disc provides exceptional long brake life.
- Compact design accommodates applications where available operating space is limited.
- CE certified; hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.
Applications:
- Industrial maintenance and MRO — manually lifting and positioning machinery, components, and equipment within the 13,200 lb rated capacity.
- Rigging and material handling — positioning compatible loads where a 6 metric ton manual lever hoist is required.
- Fabrication and shop work — handling larger components where a 15 ft lift is appropriate.
- Construction and field service — lifting compatible loads where portable manual lifting equipment is required.
- Extended-lift applications — the 15 ft configuration provides the specified vertical travel for this SKU.
- Restricted-space lifting — the compact Kinetic Series design accommodates applications where operating space is limited.
FAQs:
- Q: What is the capacity of the KL600V-15?
A: The KL600V-15 is rated for 6 metric tons, equivalent to 13,200 lb. - Q: What does the 15 ft lift specify?
A: The 15 ft designation identifies the selected lift length for this KL600 lever chain hoist. - Q: What does the V designation mean?
A: V identifies the overload-protection option. For the Kinetic Series, this option is an overload clutch. - Q: Does the KL600V-15 include overload protection?
A: Yes. The V designation specifies the overload clutch option for this configuration. - Q: Why does the KL600V-15 use 2 chain falls?
A: Ingersoll Rand specifies 2 chain falls for the 6 metric ton KL600 capacity. - Q: How much pull is required to lift the rated load?
A: The manufacturer specifies 85.9 lb of pull to lift the rated 13,200 lb load. - Q: What type of chain does the KL600V-15 use?
A: It uses premium-grade 100 electro-galvanized load chain with a listed weight of 2.95 lb per foot. - Q: What is the shipping weight of the KL600V-15?
A: The catalog lists 58.6 lb shipping weight with 10 ft of lift, but does not provide a separate shipping-weight figure for the 15 ft configuration.
| SKU | CAPACITY | NUMBER OF FALLS | PULL TO LIFT RATED LOAD | CHAIN WEIGHT | SHIPPING WEIGHT WITH 10' OF LIFT | ||||
|---|---|---|---|---|---|---|---|---|---|
| LBS | METRIC TONS | LB | KG | LB/FT | KG/FT | LB | KG | ||
| KL075 | 1,650 | 0.75 | 1 | 48.3 | 21.9 | 0.47 | 0.21 | 13.4 | 6.1 |
| KL100 | 2,200 | 1 | 1 | 66.1 | 30 | 0.47 | 0.21 | 13.9 | 6.3 |
| KL150 | 3,300 | 1.5 | 1 | 68.1 | 30.9 | 0.74 | 0.34 | 18.7 | 8.5 |
| KL300 | 6,600 | 3 | 1 | 83.6 | 37.9 | 1.48 | 0.67 | 31.3 | 14.2 |
| KL600 | 13,200 | 6 | 2 | 85.9 | 39 | 2.95 | 1.34 | 58.6 | 26.6 |
| KL900 | 19,800 | 9 | 3 | 88.1 | 40 | 4.43 | 2.01 | 102.5 | 46.5 |
