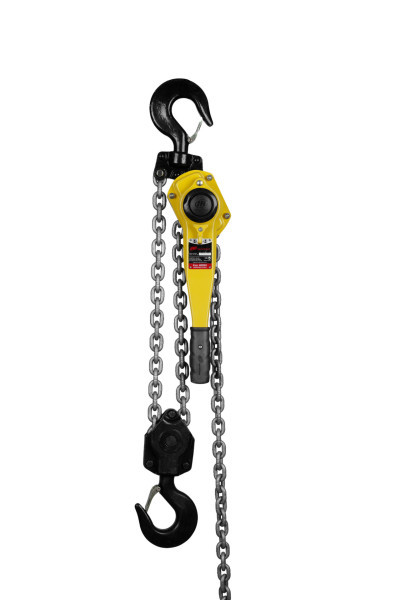

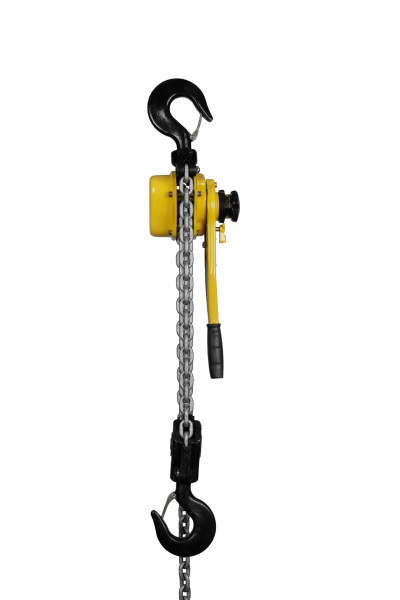

Designed for manual lifting, pulling, positioning, tensioning, and rigging, the Ingersoll Rand KL600-10 Kinetic Series Lever Chain Hoist provides a 6 metric ton (13,200 lb) rated capacity with a 10 ft lift and 2 chain falls. The two-chain-fall configuration is specified for the 6 metric ton KL600, while full bearing construction on the load sprocket and pinion shaft helps reduce chain pull effort and support longer service life. Its compact design is suited to applications where available operating space is limited.
The KL600 requires 85.9 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 2.95 lb per foot. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc support manual operation. The 10 ft suffix identifies the selected lift length, and the catalog's published shipping weight for the 10 ft configuration is 58.6 lb. The overload clutch is optional on all capacities and is not included in the standard KL600-10 designation.
Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL600-10 | Capacity: 6 Metric Tons (13,200 lb) | Lift: 10 ft | Chain Falls: 2 | Overload Protection: Optional Overload Clutch | Pull to Lift Rated Load: 85.9 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 2.95 lb/ft | Shipping Weight with 10' of Lift: 58.6 lb
Features:
- Heavy-duty cast hook latches are designed for less latch replacement.
- Corrosion-resistant finish provides additional durability.
- Ergonomic handle grip helps reduce fatigue during manual operation.
- Two chain falls provide the specified lifting configuration for the 6 metric ton capacity.
- Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer life.
- Fused brake disc provides exceptional long brake life.
- Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
- Compact design accommodates applications where available operating space is limited.
- CE certified; hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.
Applications:
- Industrial maintenance and MRO — manually lifting and positioning machinery, components, and equipment within the 13,200 lb rated capacity.
- Rigging and material handling — positioning compatible loads where a 6 metric ton manual lever hoist is required.
- Fabrication and shop work — handling larger components where a 10 ft lift is appropriate.
- Construction and field service — lifting compatible loads where portable manual equipment is required.
- 10 ft lift applications — providing the specified vertical travel for jobs that require the listed lift length.
- Restricted-space lifting — the compact Kinetic Series design accommodates applications where operating space is limited.
FAQs:
- Q: What is the capacity of the KL600-10?
A: The KL600-10 is rated for 6 metric tons, equivalent to 13,200 lb. - Q: What does the 10 ft lift specify?
A: The 10 ft designation identifies the selected lift length for this KL600 lever chain hoist. - Q: Why does the KL600-10 use 2 chain falls?
A: Ingersoll Rand specifies 2 chain falls for the 6 metric ton KL600 capacity. - Q: How much pull is required to lift the rated load?
A: The manufacturer specifies 85.9 lb of pull to lift the rated 13,200 lb load. - Q: What type of chain does the KL600-10 use?
A: It uses premium-grade 100 electro-galvanized load chain with a listed weight of 2.95 lb per foot. - Q: Does the KL600-10 include overload protection?
A: No overload-protection option is specified by the KL600-10 designation. The manufacturer identifies the overload clutch as optional on all Kinetic Series capacities. - Q: What is the shipping weight of the KL600-10?
A: The manufacturer lists a 58.6 lb shipping weight with 10 ft of lift, matching this SKU's 10 ft configuration.
| SKU | CAPACITY | NUMBER OF FALLS | PULL TO LIFT RATED LOAD | CHAIN WEIGHT | SHIPPING WEIGHT WITH 10' OF LIFT | ||||
|---|---|---|---|---|---|---|---|---|---|
| LBS | METRIC TONS | LB | KG | LB/FT | KG/FT | LB | KG | ||
| KL075 | 1,650 | 0.75 | 1 | 48.3 | 21.9 | 0.47 | 0.21 | 13.4 | 6.1 |
| KL100 | 2,200 | 1 | 1 | 66.1 | 30 | 0.47 | 0.21 | 13.9 | 6.3 |
| KL150 | 3,300 | 1.5 | 1 | 68.1 | 30.9 | 0.74 | 0.34 | 18.7 | 8.5 |
| KL300 | 6,600 | 3 | 1 | 83.6 | 37.9 | 1.48 | 0.67 | 31.3 | 14.2 |
| KL600 | 13,200 | 6 | 2 | 85.9 | 39 | 2.95 | 1.34 | 58.6 | 26.6 |
| KL900 | 19,800 | 9 | 3 | 88.1 | 40 | 4.43 | 2.01 | 102.5 | 46.5 |
